Parts for
Peavey Amps

Electronics   Hardware    Jacks    Knobs    Pots    Faders
Power Cords    Relay    Reverb Tanks    Switches



Peavey Electronics
(Also see our complete line of electronics here)


Photo Description & Part No. Price Purchase

70413080
Click on photo for
larger view

70413080 Peavey Transconductance IC.   Used in some of the Peavey XR series powered mixers.

We have only 2 of these available!

$12.95

4558
(RC4558, BA4558, NJM4558)

Op-Amp, 4558, very common in amplifiers, mixers, power amps.  8-pin DIP

$1.00

NE5532 Low-noise 5532 Dual Op-Amp in 8-pin DIP package. $1.50

NE5534 Low-noise 5534 Single Op-Amp in 8-pin DIP package. $1.50

TL071 Low-noise, JFET input, TL071 Single Op-Amp in 8-pin DIP package. $1.50

TL072 Low-noise, JFET input, TL072 Dual Op-Amp in 8-pin DIP package. $1.50

7815 +15V 1amp Voltage Regulator - Metal Tab $0.90

7915 -15V 1amp Voltage Regulator - Metal Tab $0.90

Peavey Relay. 12V DC DIP Relay 12V, 8.3mA coil, DPDT.   Used for channel switching in a variety of amplifiers including certain Peavey models.  Check coil voltage on existing relay to ensure compatibility.
Part #RLY-12
$9.95

Peavey Hardware
(Also see our complete line of hardware)


Photo Description & Part No. Price Purchase

Click on photo for
larger view
TUBE RETAINER WITH GRIP TEETH, DESIGNED FOR OCTAL TUBES WITH PHENOLIC BASE SUCH AS 6L6 OR EL34.   USED IN PEAVEY AND MANY OTHER AMPS.  1 1/2" MOUNTING CENTERS.  SUPER HIGH QUALITY.
Part #TC-142
$1.95



Click on photo for
larger view
TUBE SHIELD, BAYONET "PUSH AND TWIST" TYPE, ALUMINUM, 1 15/16" TALL, SPRING IN TOP OF SHIELD WHICH FITS OVER THE TUBE.    Fits 12AX7A and similarly sized preamp tubes.  Replacement for Peavey and many other brands - base is included.

Part #TS-325S
$1.95




Click on photo for
larger view
REPLACEMENT CAP FOR FUSE HOLDER - Peavey®
Cap for fuse holder found in many Peavey® products.   Common failure item in Peavey®.   Original Peavey® part number
70900281
Part #FH-203
$3.99


Click on photo for
larger view
FUSE HOLDER -  Peavey®, Fender®,  many other brands - AGC TYPE FUSE
Fuse holder found in many styles of guitar amplifiers, power amps and effects units.  For example, this fuse holder is used in the Peavey Valve King series.  Also used by Fender - Fender part number 0022546000.    PC Board mounted.   Uses AGC type 1/4" x 1 1/4" fuse
Part #FH-2709

$7.99

Speaker Protection Fuse
Used in many pro audio crossover circuits to help protect the driver - this size is commonly found in Peavey.   As the audio power increases, this device heats up (and even lights up at high power levels).  As it heats its resistance increases, thereby reducing the audio power reaching the driver.   This version only may be snapped into holders on the crossover PC board.   It is not designed to work with hard-soldered fuse types.   Size 8.3mm (5/16") x 38mm (1.5")
Part # E-211
$1.00


Click on photo for
larger view
CLONE OF PEAVEY GUITAR AMP HANDLE - BLACK.  Black handle strap, metal reinforced.  Black metal caps.   Screws not included - recommend using 10-32 type screws along with a 10-32 T-Nut for secure mounting.   Handle strap is 7/8" wide.   Designed for screw holes set 8 1/4 inches apart.   Total length of handle when properly mounted is 9 3/4".
Part #GAH-1
$5.99


Click on photo for
larger view
CLONE OF PEAVEY GUITAR AMP HANDLE - CHROME.  Black handle strap, metal reinforced.  Chrome metal caps.   Screws not included - recommend using 10-32 type screws along with a 10-32 T-Nut for secure mounting.   Handle strap is 7/8" wide.   Designed for screw holes set 8 1/4 inches apart.   Total length of handle when properly mounted is 9 3/4".  Not recommended for Fender, as the screws are set slightly too far apart for Fender amp specifications.
Part #GAH-1C
$5.99


Click on photo for
larger view
PEAVEY CORD WRAP BRACKET.   THERE MUST BE A GAZILLION DIFFERENT PEAVEY AMPS WITH THESE CORD WRAP BRACKETS ON THE BACK.   VERY HANDY, AS MANY PEAVEY AMPS HAD SOME RATHER LONG HARD-WIRED NON-REMOVABLE CORDS.  BUT WHEN THEY BREAK AFTER MANY YEARS' USE, THEY'RE KIND OF USELESS.  REPLACE THEM NOW WITH THE ORIGINAL BRACKET.   ORIGINAL PEAVEY PART NUMBER 70900029.
(Bracket measures 2.45" horizontally. Mount measures .935" horizontally, and .941" vertically. Length of cylindrical shaft is .175" and the diameter is .19".)
Part #CW-119
$3.59
(each)



Click on photo for
larger view

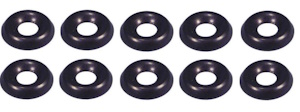

CUP WASHER, BLACK METAL, PACK OF 10.  USED WITH #8 BLACK SCREW ON AMP AND SPEAKER CABINETS.
Part #BCW-10
$0.99
(pack of 10)




Click on photo for
larger view
SPEAKER BAFFLE MOUNTING SCREW WITH BOTH WOOD AND MACHINE THREADS.    LOCKING NUT INCLUDED.   PHILLIPS HEAD.    DRILL HOLE, INSERT AND TIGHTEN SCREWS FROM FRONT OF BAFFLE, INSTALL GRILL CLOTH, AND YOU HAVE PROFESSIONAL SPEAKER MOUNTING STUDS.
Part #SC-40
$0.59
(each)



Click on photo for
larger view
BLACK PAN-HEAD WOOD SCREWS, #8 X 1/2", PACK OF 10.   USED IN AMPLIFIERS, SPEAKER CABINETS, AUTOMOTIVE.
Part #BWS8-5
$0.89
(pack of 10)



Click on photo for
larger view
BLACK PAN-HEAD WOOD SCREWS, #8 X 3/4", PACK OF 10.   USED IN AMPLIFIERS, SPEAKER CABINETS, AUTOMOTIVE.
Part #BWS8-75
$0.95
(pack of 10)



Click on photo for
larger view
BLACK PAN-HEAD WOOD SCREWS, #8 X 1", PACK OF 10.   USED IN AMPLIFIERS, SPEAKER CABINETS, AUTOMOTIVE.
Part #BWS8-1
$1.05
(pack of 10)



Click on photo for
larger view
BLACK PAN-HEAD WOOD SCREWS, #8 X 1 1/2", PACK OF 10.   USED IN AMPLIFIERS, SPEAKER CABINETS, AUTOMOTIVE.
Part #BWS8-15
$1.19
(pack of 10)




Click on photo for
larger view
CAGE NUT, ZINC, 10-32 THREAD.   Used on square-punched amp chassis rails to secure the chassis to the cabinet.   Frequently found in Peavey, Crate, Ampeg, other brands.   NOT used in Marshall - see the MCN-4.   Works with all 10-32 screws.   Verify screw thread before ordering, as not all cage nuts are 10-32.   Zinc coating retards oxidation.   Pack of 4 nuts.   Made in Canada by Hammond Industries.
Part CNA-1421
$4.29
(pack of 4)



Click on photo for
larger view
CHROME GLIDE FEET, ORIGINAL PEAVEY, PACK OF 4, SCREWS INCLUDED.  Chrome cover over rubber foot.  1.55" Diameter, 0.44" Tall.   Used on many Peavey amplifiers.   Peavey part number 00051300.
Part #CG-251
$6.95
(pack of 4)


Click on photo for
larger view
SMALL BLACK RUBBER FEET, PACK OF 4.   3/4" DIAMETER AT TOP, 5/8" DIAMETER AT BOTTOM, 5/16" TALL.  BLACK RUBBER WITH METAL INSERT.   USED TO SUPPORT EFFECTS, SMALLER AMPS, SMALLER MIXERS.  SCREWS NOT INCLUDED.
Part #BRF-4
$2.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.   3/4" DIAMETER 1/2" TALL.  BLACK RUBBER WITH METAL INSERT.   USED TO SUPPORT EFFECTS, AMPS, MEDIUM-SIZED MIXERS.  MOUNTING SCREWS ARE INCLUDED.
Part #00051600
$5.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.

This heavy-duty rubber foot offers a sure grip on all types of surfaces. Ideal for large rack cabinets or speaker cabinets. The integral metal washer in the mounting hole helps prevent mounting screw "break-through" and adds overall durability. 1" diameter x 1" tall. Mounting screws not included.
Part #BRF-1691
$4.95
(pack of 4)



Click on photo for
larger view
MEDIUM BLACK RUBBER FEET, SET OF 4.   TAPERED -1 3/16" DIAMETER AT SMALL END, 1 1/4" DIAMETER AT LARGE END.   1/2" TALL.  BLACK RUBBER WITH METAL INSERT.   USED TO SUPPORT EFFECTS, AMPS,  MIXERS.   MOUNTING SCREWS NOT INCLUDED.
Part #BRF-9112
$4.95
(pack of 4)



Click on photo for
larger view
X-LARGE BLACK RUBBER FEET, SET OF 4.   TAPERED -  1 5/8" DIAMETER AT LARGE END, 1 1/4" AT SMALL END.  3/4" TALL.  BLACK RUBBER WITH METAL INSERT.   USED TO SUPPORT AMP HEADS, SPEAKER CABINETS.  MOUNTING SCREWS NOT INCLUDED.
Part #BRF-9107
$7.95
(pack of 4)



Click on photo for
larger view
Fender Style Flat Mount 2" Caster Wheels - Set of 4.    Great for Fender and many other brands of amps or cabinets.   Each wheel capable of supporting 45 lbs, or 180 lbs total for the set of 4.   Wheels 2" in diameter.   Specifications found here.   Note:  Mounting screws NOT included.
Part #FCW-4F
$24.95
(Set of 4 casters)

NOT SOLD OUTSIDE THE USA



Click on photo for
larger view
Fender Style Pop-Out 2" Caster Wheels - Set of 4.    Great for Fender and many other brands of amps or cabinets.   Each wheel capable of supporting 45 lbs, or 180 lbs total for the set of 4.   Wheels 2" in diameter.  The same type of removable caster wheels used on Fender amps since the 1960s.   Note:  Mounting screws NOT included.   Must drill 5/8" hole in bottom of cabinet to accomodate post for wheel.
Part #FCW-4R
$28.95
(Set of 4 pop-out casters)

NOT SOLD OUTSIDE THE USA


Temporarily out of stock until August 27, 2015


Click on photo for
larger view
MEDIUM SIZED STRAIN RELIEF FOR 3/4" X 27/32" HOLE
Popular strain relief found on many amplifiers, including most vintage Peavey® guitar amps.     Designed for 5/16" cord diameter.   Click here for specific dimensions of chassis hole.
Part #SR-1200
$0.99


Click on photo for
larger view
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on many larger amplifiers with thicker power cords, including most vintage Peavey® power amps.   Designed for 11/32" cord diameter.   Click here for specific dimensions of chassis hole.
Part #SR-1300
$0.99

Peavey Jacks
(Also see our complete line of jacks)



Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft®
Found in many guitars, effects pedals, amps speaker output.  Includes nut and washer.    Peavey part number 71466001.
Part #J-11
$2.25


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft®
Found in vintage amps as the input jack.   Includes nut and washer.   Peavey part number 71466004.
Part #J-12A
$2.79


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT (SHORTING), WIRED, Switchcraft®, LONG BUSHING
Same as the J-12A jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L12A
$2.99


Click on photo for
larger view
JACK, 1/4", MONO, TIP SHUNT, WIRED, Switchcraft®, LONG BUSHING, ISOLATION WASHERS
Same as the Switchcraft L12A jack but includes a set of isolation washers. The isolation washers keep the jack from making contact with your chassis. This leaves the jack ungrounded which is needed in certain applications.   Commonly used in older Fender Hot Rod Deluxe/Deville and Blues Deluxe/Deville amps to replace the fragile input jacks.
Part #J-L12AW
$3.49


Click on photo for
larger view
JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft®
Used with T/R/S plugs for either balanced connections or stereo connections.   Also very common in guitars with active pickups, and as the input jack on some effects pedals.   The ring conductor is used in these cases to "turn on" the battery by tying one leg of the battery to ground via the plug.
Part #J-12B
$2.99


Click on photo for
larger view
JACK, 1/4", TIP-RING-SLEEVE, OPEN CIRCUIT, WIRED, Switchcraft®, LONG BUSHING
Same as the J-12B jack, but with longer (3/8") threaded bushing for mounting in thicker panels.  Includes nut and washer.
Part #J-L12B
$3.99


Click on photo for
larger view
JACK, 1/4", TIP-SLEEVE, WITH TRANSFER SWITCHING.  Switchcraft 13A Jack.
Used with for special switching applications - the tip contacts one terminal when no plug is inserted, and contacts a different terminal with the plug in place.
Found in some Peavey amps, such as the Classic 50's speaker jack.  Peavey part number 71466024.
Part #J-13A
$6.99


Click on photo for
larger view
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, GENUINE CLIFF
Stereo input jack. 6 PC board terminals, switched.  With nut and washer.  Original Cliff UK part number CL1227.
Part #J-504
$3.50


Click on photo for
larger view
SAVE WITH MULTIPACK!  JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, GENUINE CLIFF, PACK OF 6
Stereo input jack. 6 PC board terminals, switched.  Pack of 6 jacks, with nuts and washers.  Original Cliff UK part number CL1227.
Part #J-504-6
$11.99
(Set of 6 jacks)



Click on photo for
larger view
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, GENUINE CLIFF - WHITE   Identical to the J-504 above, except in white.  How cool is that!  Stereo input jack. 6 PC board terminals, switched.   With nut and washer.
Part #J-556
$3.99


Click on photo for
larger view
JACK, 1/4", MONO PC MOUNT PLASTIC, GENUINE CLIFF

4 PC board terminals, switched.  Used in many brands of amps and other equipment.   With nut and washer.  Original Cliff UK part number CL1169.
Part #J-503
$2.99


Click on photo for
larger view
SAVE WITH MULTIPACK!  JACK, 1/4", MONO PC MOUNT PLASTIC, GENUINE CLIFF, PACK OF 6
4 PC board terminals, switched.  Used in many brands of amps and other equipment.   Pack of 6 jacks, with nuts and washers.  Original Cliff UK part number  CL1169.
Part #J-503-6
$11.50
(Set of 6 jacks)



Click on photo for
larger view
JACK, 1/4", MONO INPUT, CLOSED CIRCUIT, PC MOUNT, GENUINE CLIFF - WHITE   Identical to the J-503 above, except in white.  How cool is that!  Mono input jack. 4 PC board terminals, switched.  With nut and washer.
Part #J-555
$3.99


Click on photo for
larger view



Note:  Nut & Washer NOT included - reuse original, or order J-5NT

JACK, 1/4", STEREO 6-PIN, REAN TYPE, PC MOUNT, Peavey® AMPS
Peavey
® PCB mount 1/4" jack. Stereo, 6 pin. Fits certain Peavey® amp models.  Peavey part number 71466323.  For savings on multiple jacks, see J-508-6 below.   Nut NOT included.   Reuse existing nut or order nut separately as part #J-5NT.
Part #J-508

$2.95


Click on photo for
larger view


Note:  Nut & Washer NOT included - reuse original, or order J-5NT-6




SAVE WITH MULTIPACK!   JACK, 1/4", STEREO 6-PIN, REAN TYPE, PC MOUNT, Peavey® AMPS, SET OF 6 JACKS.
Peavey
® PCB mount 1/4" jack. Stereo, 6 pin. Fits certain Peavey® amp models.  Peavey part number 71466323.  Set of 6 jacks.  Nuts NOT included.   Reuse existing nuts or order nuts separately as part #J-5NT-6.
Part #J-508-6

$12.95
(For Set of 6 Jacks)


Click on photo for
larger view



Note:  Nut & Washer NOT included - reuse original, or order J-5NT

JACK, 1/4", MONO 4-PIN, REAN TYPE, PC MOUNT, Peavey®, AMPS
Peavey
® PCB mount 1/4" jack. Mono, 4 pin. Fits certain Peavey® amp models.   Peavey part number 71466322. Nut NOT included.   Reuse existing nut or order nut separately as part #J-5NT.
Part #J-509

$2.95
(For Set of 6 Jacks)


Click on photo for
larger view



Note:  Nut & Washer NOT included - reuse original, or order J-5NT-6

SAVE WITH MULTIPACK!  JACK, 1/4", MONO 4-PIN, REAN TYPE, PC MOUNT, Peavey® AMPS, SET OF 6 JACKS.
Peavey
® PCB mount 1/4" jack. Mono, 4 pin. Fits certain Peavey® amp models.   Peavey part number 71466322.  Set of 6 jacks.  Nuts NOT included.   Reuse existing nuts or order nuts separately as part #J-5NT-6.
Part #J-509-6

$12.95


Click on photo for
larger view
JACK NUT, PLASTIC, GENUINE CLIFF, REPLACEMENT FOR Marshall® AND OTHERS.   Note:     Replaces most black plastic jack nuts EXCEPT for Roland.    Will NOT fit Roland jacks.
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and J-504L jacks.   Also fits the J-508 and J-509 jacks.
 Part #J-5NT
$0.50


Click on photo for
larger view
JACK NUT MULTI-PACK - SAVE!   6 JACK NUTS, PLASTIC, GENUINE CLIFF, REPLACEMENT FOR Marshall® AND OTHERS.   Note:     Replaces most black plastic jack nuts EXCEPT for Roland.    Will NOT fit Roland jacks.
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and J-504L jacks.   Also fits the J-508 and J-509 jacks.
 Part #J-5NT-6
$2.39


Click on photo for
larger view
JACK NUT, PLASTIC, GENUINE CLIFF, WHITE
Replacement nut for the J-555 and J-556 jacks.
Will also fit the J-502, J-503, J-504, J-505, J-503L and J-504L black jacks, if you wish to create a two-tone effect.
Part #J-5NTW
$0.60


Click on photo for
larger view



Note:  Nut & Washer NOT included - reuse original, or order JNUT-38

JACK, 1/4", Peavey® ORIGINAL, PC MOUNT, MONO, 4 PINS.
This jack is unusual in that two different pins contact the tip of the plug.  One of the tip contacts is switched (normally closed).  This jack is exclusive to Peavey®.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-521
$3.95


Click on photo for
larger view



Note:  Nut & Washer NOT included - reuse original, or order JNUT-38

JACK, 1/4", Peavey® ORIGINAL, PC MOUNT, MONO, 5 PINS, INSULATED.
This jack is unusual in that two different pins contact the tip of the plug.  One of the tip contacts is switched (normally closed).  This jack is exclusive to Peavey®.   Same as J-521 except that the threads are insulated.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-522
$3.95


Click on photo for
larger view
JACK, CHASSIS MOUNT, DIN, 6 PINS
This jack is commonly used as the footswitch connector on many Peavey® guitar amps.  Also used by Genz Benz and other manufacturers.  Original Peavey part number 71466018.

Part #J-520
$3.75


Click on photo for
larger view
JACK, CHASSIS MOUNT, DIN, 7 PINS
This jack is commonly used as the footswitch connector on many Peavey® guitar amps.  Also used by Mesa Boogie, Genz Benz and other manufacturers.

Part #J-516
$3.75


Click on photo for
larger view
JACK, CHASSIS MOUNT, DIN, 8 PINS
This jack is commonly used as the footswitch connector on many Peavey® guitar amps.  Also used by Genz Benz and other manufacturers.

Part #J-518
$3.75


Click on photo for
larger view


Note:  Nut & Washer NOT included - reuse original, or order JNUT-38.

JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, METAL BUSHING.
Both tip and ring conductors are switched (normally closed)  Made by Rean.   Used in Peavey®, Mackie and other brands.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-524
$3.95


Click on photo for
larger view


Note:  Nut & Washer NOT included - reuse original, or order JNUT-38.

JACK, 1/4", PC MOUNT, STEREO, 4 PINS, SWITCHED, METAL BUSHING.
Tip is switched  (normally closed), ring conductor is not switched.   Made by Rean.   Used in a variety of brands
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-524A
$3.95


Click on photo for
larger view



Note:  Nut & Washer NOT included - reuse original, or order JNUT-38

JACK, 1/4", PC MOUNT, STEREO, 3 PINS, NON-SWITCHED, METAL BUSHING.
Three conductors (tip, ring and sleeve), 3 pins.   No switching.  Made by Neutrik.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-234
$3.95


Click on photo for
larger view



Note:  Nut & Washer NOT included - reuse original, or order JNUT-38

JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, INSULATED.   Both tip and ring conductors are switched (normally closed).   Used in Peavey® and other brands.  Same as J-524, except that the threads are insulated.  Original Peavey part number 71466037.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-523
$4.99


Click on photo for
larger view



Note:  Nut & Washer NOT included - reuse original, or order JNUT-38

JACK, 1/4", Used in Peavey®, PCB, MONO CLOSED CIRCUIT
PCB mono closed circuit.   Original Peavey part numbers
71462088 and 71466164.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-525
$5.99


Click on photo for
larger view



Note:  Nut & Washer NOT included - reuse original, or order JNUT-38

JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, INSULATED.   Made by Rean - used in many Peavey® models.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-526
$4.50


Click on photo for
larger view



Note:  Nut & Washer NOT included - reuse original, or order JNUT-38

JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, INSULATED.   Both tip and ring conductors are switched (normally closed).   Used in Peavey® and other brands.  Same as J-523, except that the pins are smaller for insertion into smaller PC holes.  Original Peavey part number 71466037.
NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JNUT-38, BELOW.
Part #J-527
$4.50


Click on photo for
larger view
JACK NUT AND WASHER, METAL
Replacement jack nut and washer set as used on the J-521, J-522, J-523, J-524, J-527, J11, J12A, and J114PC jacks.   Replacement jack nut and washer set for the blackface/silverface Fender® bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender blackface and silverface), as well as Peavey® and Switchcraft® 1/4" jacks.  Does NOT fit the 24mm Marshall pots.
Part #JNUT-38
$0.99


Click on photo for
larger view.   Jack is in the picture to demonstrate how the washers are installed - jack is NOT included with the washers.
INSULATING SHOULDER WASHER, FIBER
Pair of fiber insulating shoulder washers for Switchcraft jacks with metal bushings.   Used to mount standard jacks in a 1/2" diameter chassis hole, while insulating the metal bushing (ground) of the jack from the chassis.   ID 3/8", OD 1/2".  Works great when replacing isolated plastic jacks with a more durable metal jack, which is frequently done on the input jacks of the Fender Hot Rod Deville/Deluxe and Blues Deville/Deluxe.   Two washers are used on each jack, and the "shoulders" are placed facing each other through the chassis.   The washers not only isolate the ground of the jack electrically for noise reduction, but also stabilize the jack in the 1/2" diameter hole.   Jack shown in picture NOT included.   Works well with the Switchcraft J-11, J-L11, J-12A, J-L12A, J-12B, J-L12B, J-13, J-13A, J-112APC, J-112BX, J-114BX, J-521 and J-524 jacks.
Part #ISW-3069
$0.49
(For a pair of washers.  Each jack needs two washers.)



Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft®, LONG BUSHING, ISOLATION WASHERS
Same as the Switchcraft L11 but includes fiber isolation washers. The isolation washers keep the jack from making contact with your chassis. This leaves the jack ungrounded which is needed in certain applications.

Part #J-L11W
$3.49


Click on photo for
larger view
JACK PLATE, BLACK METAL, SINGLE 1/4" JACK, 2" OUTSIDE DIAMETER. Similar in style to vintage Fender jack plates.  Works well with the Switchcraft J-11 1/4" jacks that we carry. Hole is 3/8", for most Switchcraft type jacks.  Easy to install, economical.   Jack not included - order separately.  For size specifications, click here.
Part #JP-180
$1.39




Click on photo for
larger view
REVISIT JACK PLATE COMPLETE WITH SWITCHCRAFT #11 JACK AND MOUNTING SCREWS.  Switchcraft #11 jack preinstalled with lock washer and trim washer.   Includes three #8 - 3/4" black mounting screws.   Outside diameter 2 inches (51mm). Designed to fit flush against a 1 1/8" (29mm) cabinet hole.    Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to jack and speaker, attach plate to cabinet with included screws.
Part #JPC-180
$3.95




Click on photo for
larger view
REVISIT JACK PLATE COMPLETE WITH GENUINE SWITCHCRAFT #11 JACK, 24" SPEAKER WIRE AND MOUNTING SCREWS.  Preassembled - includes 2" diameter single jack mounting plate with Switchcraft #11 jack preinstalled with lock washer and trim washer, and 24 inch teflon-insulated 18 ga speaker wire terminated in 3/16" push-on speaker connectors.   Includes three #8 - 3/4" black mounting screws.   Outside jack plate diameter 2 inches (51mm). Designed to fit flush against a 1 1/8" (29mm) cabinet hole.    Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to speaker, attach plate to cabinet with included screws.
Part #JPH-180
$9.95




Click on photo for
larger view
REVISIT JACK PLATE COMPLETE WITH GENUINE CLIFF UK JACK AND MOUNTING SCREWS.   Same as the JPC-180 assembly, except uses a Cliff UK jack for that "British" look.   Preassembled - includes 2" diameter single jack mounting plate with Cliff CL1130A jack preinstalled.    Outside jack plate diameter 2 inches (51mm). Designed to fit flush against a 1 1/8" (29mm) cabinet hole.   Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to jack and speaker, attach plate to cabinet with included screws.
Part #JPC-501
$3.95



Click on photo for
larger view
REVISIT JACK PLATE COMPLETE WITH GENUINE CLIFF UK JACK, 24" SPEAKER WIRE AND MOUNTING SCREWS.   Same as the JPH-180 assembly, except uses a Cliff UK jack for that "British" look.   Preassembled - includes 2" diameter single jack mounting plate with Cliff CL1130A jack preinstalled, and 24 inch teflon-insulated 18 ga speaker wire terminated in 3/16" push-on speaker connectors.   Includes three #8 - 3/4" black mounting screws.   Outside jack plate diameter 2 inches (51mm). Designed to fit flush against a 1 1/8" (29mm) cabinet hole.    Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to speaker, attach plate to cabinet with included screws.
Part #JPH-501
$9.95



Click on photo for
larger view
Peavey binding post, pc mount, black.   Found on several models of Peavey power amplifiers.   Red type also available, below.  Fits standard banana plugs.
Part #BP-277
$6.50


Click on photo for
larger view
Peavey binding post, pc mount, red.   Found on several models of Peavey power amplifiers.   Black type also available, above.  Fits standard banana plugs.
Part #BP-278
$6.50


Click on photo for
larger view
JACK, SPEAKON, CHASSIS-MOUNT - MADE FOR PC BOARD (SOLDER PINS).   Made by Neutrik. 4 pins (1+, 1-, 2+, 2-) Used in a variety of brands, including Peavey®.

Part #J-NL4MD-V
$4.95


Click on photo for
larger view
JACK, SPEAKON, CHASSIS-MOUNT - MADE FOR WIRE ATTACHMENT (3/16" PUSH ON CONNECTORS OR SOLDER TABS).   Made by Neutrik. 4 pins (1+, 1-, 2+, 2-) Used in a variety of brands, including Peavey®.

Part #J-NL4MP-2
$4.95

Peavey Knobs
(Also see our complete line of knobs)



Click on photo for
larger view
KNOB, Peavey®, modified Chicken Head style
Genuine Peavey® amp knob, black with thin white pointer. Used on the Peavey 5150 EVH amps and the 6505 amps, Classic 50, and others.  Knob is a slip-on, designed to fit a 3/16" knurled shaft.   Original Peavey part number 70902145.
Part #K-428
$2.99


Click on photo for
larger view
KNOB, Peavey®, Black and Coral
Genuine Peavey® amp knob, black with coral pointer.   Common on several Peavey mixers.  Knob is a slip-on, designed to fit a 3/16" knurled shaft, such as found on the common Peavey pots that we carry.  Original Peavey part number 70902041.
Part #K-424
$3.95

Peavey Pots
(Also see our complete line of pots)



Click on photo for
larger view
POT, PEAVEY "SPIDER" TYPE, 10K OHM AUDIO, (A10K), PC MOUNT, 16mm DIAMETER BODY  Used in many Peavey amp and mixer models.  This pot has a metal knurled shaft, and is designed to replace some earlier Peavey spider pots with knurled plastic shafts.  Original Peavey part # 31190337 or 71190337.  DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER THE JN-1018 NUT FOUND HERE
Part #P-VS10KA
$6.95


Click on photo for
larger view
POT, PEAVEY "SPIDER" TYPE, 10K OHM LINEAR, (B10K), PC MOUNT, 16mm DIAMETER BODY  Used in many Peavey amp and mixer models.  This pot has a metal knurled shaft, and is designed to replace some earlier Peavey spider pots with knurled plastic shafts.  Original Peavey part # 31190336 or 71190336.  DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER THE JN-1018 NUT FOUND HERE
Part #P-VS10KL
$6.95


Click on photo for
larger view
POT, PEAVEY "SPIDER" TYPE, 50K OHM LINEAR, (B50K), PC MOUNT, 16mm DIAMETER BODY  Used in many Peavey amp and mixer models.  This pot has a metal knurled shaft, and is designed to replace some earlier Peavey spider pots with knurled plastic shafts.  This pot has a center detent.  DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER THE JN-1018 NUT FOUND HERE
Part #P-VS50KL
$6.95


Click on photo for
larger view
POT, PEAVEY "SPIDER" TYPE, 100K OHM AUDIO, (A100K), PC MOUNT, 16mm DIAMETER BODY  Used in many Peavey amp and mixer models.  This pot has a metal knurled shaft, and is designed to replace some earlier Peavey spider pots with knurled plastic shafts.  Original Peavey part # 31190338 or 71190338.  DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER THE JN-1018 NUT FOUND HERE
Part #P-VS100KA
$6.95


Click on photo for
larger view
POT, PEAVEY "SPIDER" TYPE, 250K OHM AUDIO, (A250K), PC MOUNT, 16mm DIAMETER BODY  Used in many Peavey amp and mixer models.  This pot has a metal knurled shaft, and is designed to replace some earlier Peavey spider pots with knurled plastic shafts.  Original Peavey part # 31190339 or 71190339.  DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER THE JN-1018 NUT FOUND HERE
Part #P-VS250KA
$6.95


Click on photo for
larger view
POT, PEAVEY "BRACKET" TYPE, 10K OHM LINEAR, (B10K), PC MOUNT, 16mm DIAMETER BODY  Used in many Peavey amp and mixer models.  This pot has a metal knurled shaft.  Original Peavey part # 31190510 or 711900510.  DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER THE JN-1018 NUT FOUND HERE
Part #P-VB10KL
$5.95


Click on photo for
larger view
POT, PEAVEY "BRACKET" TYPE, 20K OHM LINEAR, (B20K), PC MOUNT, 16mm DIAMETER BODY  Used in many Peavey amp and mixer models.  This pot has a metal knurled shaft.  Original Peavey part # 31190518 or 711900518.  DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER THE JN-1018 NUT FOUND HERE
Part #P-VB20KL
$5.95


Click on photo for
larger view
POT, PEAVEY "BRACKET" TYPE, 100K OHM LINEAR, (B100K), PC MOUNT, 16mm DIAMETER BODY  Used in many Peavey amp and mixer models.  This pot has a metal knurled shaft.  Original Peavey part # 31190517 or 71190517.  DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER THE JN-1018 NUT FOUND IN THIS SECTION
Part #P-VB100KL
$5.95


Click on photo for
larger view
POT, PEAVEY "BRACKET" TYPE, DUAL 100K OHM REVERSE AUDIO, (C100K X 2), PC MOUNT, 16mm DIAMETER BODY  Used in many Peavey amp and mixer models.  This pot has a metal knurled shaft.  Original Peavey part # 31190531 or 711900531.  DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER THE JN-1018 NUT FOUND HERE
Part #P-VBD100KRA
$6.95


Click on photo for
larger view
POT, PEAVEY "BRACKET" TYPE, 250K OHM AUDIO, (A250K), PC MOUNT, 16mm DIAMETER BODY  Used in many Peavey amp and mixer models.  This pot has a metal knurled shaft.   Original Peavey part # 31190514 or 711900514.  DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER THE JN-1018 NUT FOUND HERE
Part #P-VB250KA
$5.95


Click on photo for
larger view
POT, PEAVEY "BRACKET" TYPE, 250K OHM LINEAR, (B250K), PC MOUNT, 16mm DIAMETER BODY  Used in many Peavey amp and mixer models.  This pot has a metal knurled shaft.  Original Peavey part # 31190515 or 711900515.  DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER THE JN-1018 NUT FOUND HERE
Part #P-VB250KL
$5.95


Click on photo for
larger view
POT, PEAVEY "BRACKET" TYPE, 1 MEG OHM AUDIO, (A1M), PC MOUNT, 16mm DIAMETER BODY  Used in many Peavey amp and mixer models.  This pot has a metal knurled shaft.  Original Peavey part # 31190516 or 711900516.  DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER THE JN-1018 NUT FOUND HERE
Part #P-VB1MA
$5.95


Click on photo for
larger view
POT, PEAVEY 50K LINEAR W/PULL SWITCH, 24MM BODY  Used in the original Peavey CS800 Power Amps and also the CS400 series that had the red power switch. Original Peavey part # 71190274.  DOES NOT INCLUDE NUT OR WASHER.  IF NEW NUT IS NEEDED, ORDER THE JNUT-38 FOUND IN THIS SECTION
Part #P-V50KL-SW
$19.95


Click on photo for
larger view
Peavey Pot B10K, Plastic D-Shaft, PC-mount with bracket This pot has 4 pins.  Includes mounting nut and washer.
Part #P-VKG-10KL
$6.95


Click on photo for
larger view
Peavey Pot A100K, Plastic D-Shaft, PC-mount with bracket, for Peavey Studio Pro 112 Clean Volume.
Replacement for Peavey part #71190906 and #31190906 This pot has 4 pins.  Includes mounting nut and washer.

Part #P-VKG-100KA
$6.95


Click on photo for
larger view
Peavey Pot A1M, Plastic D-Shaft, PC-mount with bracket, replacement for Peavey part #71190910 and #31190910   This pot has 4 pins.  Includes mounting nut and washer.
Part #P-VKG-1MA
$6.95


Click on photo for
larger view
Peavey Pot A200K, Plastic D-Shaft, PC-mount with bracket, for Peavey Studio Pro 112 Clean Channel Mid control, replaces Peavey #71190903 and #31190903  This pot has 4 pins.  Includes mounting nut and washer.
Part #P-VKG-20KL
$6.95


Click on photo for
larger view
Peavey Pot A200K, Plastic D-Shaft, PC-mount with bracket, for Peavey Studio Pro 112 Pre Gain, replaces Peavey #71190907 and #31190907  This pot has 4 pins.  Includes mounting nut and washer.
Part #P-VKG-200KA
$6.95


Click on photo for
larger view
Peavey Pot B200K, Plastic D-Shaft, PC-mount with bracket, for Peavey Studio Pro 112 Post Gain, replacement for Peavey part #71190908 and #31190908   This pot has 4 pins.  Includes mounting nut and washer.
Part #P-VKG-200KL
$6.95


Click on photo for
larger view
JACK NUT, METAL
Replacement nut for the Peavey bracket pots (P-VBxxxx) and the Peavey spider pots (P-VSxxxx).
Part #JN-1018
$0.39


Click on photo for
larger view
JACK NUT AND WASHER, METAL
Replacement jack nut and washer set for the blackface/silverface Fender® bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender blackface and silverface), as well as Peavey® and Switchcraft® 1/4" jacks.  Does NOT fit the 24mm Marshall pots.
Part #JNUT-38
$0.99


Click on photo for
larger view
FADER, PEAVEY , 10K AUDIO, (A10K), PC MOUNT, 60mm   Used in the Peavey Unity series of mixers.  Body length is 75mm, travel is 60mm.  Original Peavey part # 31190108.
Part #PSP-10KA-60M
$6.95


Click on photo for
larger view
GRAPHIC EQ FADER, PEAVEY , 50K LINEAR, (B50K), PC MOUNT, 45mm   Used for the graphic equalizer controls in many Peavey mixers.  Body length is 60mm, travel is 45mm.  Original Peavey part # 31190108 and 31190094.   Uses the Peavey K425 knob.
Part #PSP-50KL-45M
$5.95

Peavey Power Cords



Click on photo for
larger view
6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  COMMON REPLACEMENT CORD FOR MANY GUITAR AMPS, POWER AMPS, EFFECTS UNITS, ETC.  Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-300
$5.95


Click on photo for
larger view
10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  REPLACEMENT CORD FOR MANY GUITAR AMPS, POWER AMPS, EFFECTS UNITS, ETC.   10 ft LENGTH GIVE EXTRA FLEXIBILITY IN EQUIPMENT PLACEMENT, REDUCES USE OF EXTENSION CORDS.  Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-600
$10.95


Click on photo for
larger view
1 ft POWER CORD, DETACHABLE, 3-WIRE, 16ga, 1 ft LONG, IEC CONNECTOR AT EQUIPMENT END.     Designed to be used inside equipment racks between power strips and equipment in order to reduce clutter.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-100
$2.95


Click on photo for
larger view
8 ft POWER CORD, 3-WIRE, 18ga, SJT type.   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length 8 feet, cord thickness is 0.29 inches(about 9/32" or 7.3mm).   This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Fender, for example).   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.   Used only in North America.
Part #PC-183SJT8
$8.95


Click on photo for
larger view
8 ft POWER CORD, 3-WIRE, 16ga, SJT type.   Cut ends for installing (soldered connection) into many power amps using a 3-wire cord hard-wired cord.    Cord length 8 feet, cord thickness is 0.32 inches(about 5/16" or 8.5mm).    Note:   Cord is generally not designed for use on guitar amps - too thick.   More in line with larger power amplifiers.  Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.   Used only in North America.
Part #PC-163SJT8
$9.95


Click on photo for
 larger view
SPEAKER HARNESS - ECONOMY
Replacement right-angle plug with 34" cable and 3/16" fast-on connectors.    Used to replace speaker cable in most combo amplifiers where the speakers are connected to the amplifier chassis via a 1/4" jack and plug.   18ga black zip cord, right-angle plug and fast-on connectors for attachment to one speaker.
Part #SCH-280
$5.99


Click on photo for
 larger view
SPEAKER JUMPER CABLE
Teflon insulated silver plated copper speaker wire, 18 gauge, twisted pair, black and white.   Terminated at each end in standard .187 speaker push-on connectors.   Great for connecting speakers in parallel in 2x12 or 4x12 cabinets.   24 inches (61 cm) long.   Made in USA.
Part #SJ-150
$5.99

Peavey Relay


Peavey Relay. 12V DC DIP Relay 12V, 8.3mA coil, DPDT.   Used for channel switching in a variety of amplifiers including certain Peavey models.  Check coil voltage on existing relay to ensure compatibility.
Part #RLY-12
$9.95

Peavey Reverb Tanks




Click on photo for larger view

Revisit Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4EB2C1B.   Input impedance 600 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   Common replacement for Peavey (including Bravo 112, Encore 65, Valveking 100 (VK100), Classic 30, Backstage 30, Windsor Studio, etc.   Peavey part number 71011114).   Upgrade for VOX AC30CC  See explanation of Accutronics reverb tank numbering system here

Unlike some tanks, Revisit Reverb Tanks include the soft mounting grommets with brass inserts to acoustically decouple the outer channel from the amplifier cabinet.

View the 3-year warranty details here.
Part #4EB2C1B

"Bringing back the sound of vintage Accutronics tanks"

$29.99
In stock




Click on photo for larger view

Revisit Reverb Tank, 17" long, 2 spring, equivalent to Accutronics 4FB2B1A.   Input impedance 1475 ohms, output impedance 2250 ohms, medium decay (1.5 - 2.75 seconds), input grounded/output insulated.  Mounts horizontal, open side up.   Primarily found in Peavey, including the Peavey Classic 4x10 combo amp.   See explanation of Accutronics reverb tank numbering system here

Unlike some tanks, Revisit Reverb Tanks include the soft mounting grommets with brass inserts to acoustically decouple the outer channel from the amplifier cabinet.

View the 3-year warranty details here.
Part #4FB2B1A

"Bringing back the sound of vintage Accutronics tanks"

$29.99
In Stock








Click on photo for larger view

Revisit Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1AShort Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side up.   Used in Peavey 6505+ and Yamaha JX30.  See explanation of Accutronics reverb tank numbering system here.

Unlike some tanks, Revisit Reverb Tanks include the soft mounting grommets with brass inserts to acoustically decouple the outer channel from the amplifier cabinet.

View the 3-year warranty details here.
Part #8EB2C1A

"Bringing back the sound of vintage Accutronics tanks"

$29.99
In stock




Click on photo for larger view

Revisit Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1BShort Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down.   Used  in Fender® Blues Junior, Fender® Transistor Amps such as: Fender® Deluxe 90, Deluxe 112, Deluxe 112 Plus, Fender® Princeton 65, Princeton 112, Princeton 112 Plus, Fender® Stage Series, Fender® Roc Pro 700, Roc Pro 1000, Fender® Tube 60 Series (Super 60, Super 112), Fender® Frontman 65R, Stage100, Stage160, Ultimate Chorus, Blues Junior, Peavey Envoy 110, Peavey® Ultra 60/120, Peavey Backstage, etc.,  VOX AC15CC, Vox AC15C, and Epiphone Valve Junior Hot Rod.   This is the most popular short tank.  See explanation of Accutronics reverb tank numbering system here.

Unlike some tanks, Revisit Reverb Tanks include the soft mounting grommets with brass inserts to acoustically decouple the outer channel from the amplifier cabinet.

View the 3-year warranty details here.
Part #8EB2C1B

"Bringing back the sound of vintage Accutronics tanks"

$29.99
In Stock




Click on photo for larger view

Revisit Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB2C1D. Short Tank, Medium Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts on vertical wall, long axis horizontal, connectors down.   Used in several Peavey models.  See explanation of Accutronics reverb tank numbering system here

Unlike some tanks, Revisit Reverb Tanks include the soft mounting grommets with brass inserts to acoustically decouple the outer channel from the amplifier cabinet.

View the 3-year warranty details here.
Part #8EB2C1D

"Bringing back the sound of vintage Accutronics tanks"

$29.99
In Stock




Click on photo for larger view

Revisit Reverb Tank, 9" long, 3 spring, equivalent to Accutronics 8EB3C1B. Short Tank, Long Decay, input impedance 800 ohms, output 2575 ohms, insulated input and grounded output. Mounts horizontal, open side down.   Used in many Peavey models.  Used as an upgrade in Fender® Blues Junior, Fender® Transistor Amps such as: Fender® Deluxe 90, Fender® Princeton 65, Fender® Stage Series, Fender® Tube 60 Series (Super 60, Super 112), Peavey® Ultra 60/120 etc.  VOX® Upgrade for VOX AC15CC and Vox AC15C.  See explanation of Accutronics reverb tank numbering system here

Unlike some tanks, Revisit Reverb Tanks include the soft mounting grommets with brass inserts to acoustically decouple the outer channel from the amplifier cabinet.

View the 3-year warranty details here.
Part #8EB3C1B

"Bringing back the sound of vintage Accutronics tanks"

$29.99
In Stock




Click on photo for larger view

Revisit Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9EB2C1B.   Input impedance 800 ohms, output impedance 2575 ohms, medium decay (2.75-4.0 seconds), input insulated/output grounded, designed for horizontal mounting, open side down.   Common replacement for Peavey®Nashville 112, VOX AC50CPH, AC100CPH
upgrades VOX AC30CC, deeper reverb for the Fender® Hot Rod Deluxe/DeVille!
  See explanation of Accutronics reverb tank numbering system here.

Unlike some tanks, Revisit Reverb Tanks include the soft mounting grommets with brass inserts to acoustically decouple the outer channel from the amplifier cabinet.

View the 3-year warranty details here.
Part #9EB2C1B

"Bringing back the sound of vintage Accutronics tanks"

$33.99



Click on photo for larger view

Revisit Reverb Tank, 17" long, 3 spring, equivalent to Accutronics 9FB2A1C.   Input impedance 1475 ohms, output impedance 2575 ohms, medium decay (2.75-4.0 seconds), input grounded/output grounded, designed for vertical mounting, long axis horizontal, connectors up.   Common replacement for Fender, Peavey, Music Man, Gemini, Portaflex.  Upgrade for the Marshall Model 2205.  See explanation of Accutronics reverb tank numbering system here

Unlike some tanks, Revisit Reverb Tanks include the soft mounting grommets with brass inserts to acoustically decouple the outer channel from the amplifier cabinet.

View the 3-year warranty details here.
Part #9FB2A1C

"Bringing back the sound of vintage Accutronics tanks"

$33.99



Click on photo for
larger view
Rubber mounting grommets for reverb tanks, package of four.   Provides shock absorption for tanks mounted directly to the inside of a wooden amp cabinet.  Mounting Hole Diameter = 3/8"  Outer Diameter = 1/2"
Part #RRG-4
$1.99
(For a pack of 4 grommets - In Stock)



Click on photo for
larger view

3 foot Standard-Duty Revisit right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 3 feet long.
Part #RC-173
$3.95
In Stock



Click on photo for
larger view

3 foot Heavy-Duty Revisit right angle RCA cables for Reverb Tanks and other electronic devices.  Heavy duty, excellent shielding properties, additional ground conductor provided.
Part #RC-273
$4.95
In Stock



Click on photo for
larger view

4 foot Standard-Duty Revisit right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 4 feet long.
Part #RC-174
$4.95
In Stock



Click on photo for
larger view

5 foot Standard-Duty Revisit right angle RCA cables for Reverb Tanks and other electronic devices.  Dual cable, excellent shielding properties, 5 feet long.
Part #RC-17
5
$5.95
In Stock




Click on photo for
larger view

6 foot Heavy-Duty Revisit right angle RCA cables for Reverb Tanks and other electronic devices.  Heavy duty, excellent shielding properties, additional ground conductor provided.
Part #RC-27
6
$7.95
In Stock


Peavey Switches
(Also see our complete line of switches)



Click on photo for
larger view
FOOT SWITCH, CARLING BRAND, SPDT, LATCHING
Found in many type of footswitches.  Has 3 electrical terminals (single pole, double throw)Solder lugs for wire.
Part #FS-492
$11.95


Click on photo for
larger view
FOOT SWITCH, CARLING BRAND, SPST, LATCHING, REPLACEMENT FOR Fender®, ETC.
Carling SPST footswitch. Used in Marshall® etc. Reverb/tremolo/channel switching pedals.  Has 2 electrical terminals (single pole, single throw)Solder lugs for wire.
Part #FS-493
$7.95


Click on photo for
larger view
FOOT SWITCH, DPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Double-pole Double-Throw, made for direct connection to a PC board.  Has 6 electrical terminals.

Part #FS-498-PC

(Also see our complete line of switches)
$6.95


Click on photo for
larger view
ROCKER SWITCH, LIGHTED POWER, USED IN Peavey® CS-800 and other models
Has 6 electrical terminals on back of switch.   1/4" push-on terminals, or solder directly to terminals.   Rated 22A @ 125VAC, 16A @ 250VAC. 15/16" x 1 1/16" x 1" deep.  Internal neon lamp powered by either 125VAC or 250VAC.
Part #SW-508
$19.95


Click on photo for
larger view
MINI ROCKER SWITCH, PEAVEY STYLE
Carling miniature rocker switch, SPST with .187" tabs (Peavey Style). 0.51" x 0.76" mounting hole diameter, 5A, 125 VAC
Part #SW-560
$3.95


Click on photo for
larger view
SWITCH, CARLING SPST TOGGLE, ORIGINAL REPLACEMENT FOR 60's and 70's Fender® AMPS (POWER & STANDBY SWITCHES)
Part #SW-495
$4.95


Click on photo for
larger view
SWITCH, CARLING DPST PROGRESSIVE TOGGLE (OFF-STANDBY-PLAY)  REPLACEMENT FOR AMPS WHICH USE A SINGLE SWITCH FOR BOTH POWER AND STANDBY, OR MAY BE USED TO ENGINEER A MODIFICATION TO AMPS WHICH HAVE A TOGGLE POWER SWITCH, BUT DON'T OFFER A STANDBY SWITCH (SUCH AS THE PEAVEY DELTA BLUES)
Part #SW-520
$7.95


Click on photo for
larger view
SWITCH, STANDARD SIZE TOGGLE - RATED AT 20 Amps (125VAC) or 15 Amps (250VAC).   FITS 1/2" CHASSIS HOLE.  SOLDER TERMINALS OR 1/4" PUSH ON, SINGLE POLE/SINGLE THROW (SPST).  TWO POSITION - ON/OFF.  NOTE:   RATED FOR AC SERVICE ONLY - NOT RECOMMENDED FOR USE AS A GUITAR AMPLIFIER STANDBY SWITCH
Part #STS-20
$3.95


Click on photo for
larger view
SWITCH, STANDARD SIZE TOGGLE - MADE BY CARLING - RATED AT 15A, 125VAC.    TWO POSITION (ON/OFF), DOUBLE POLE (DPST).  FITS 1/2" CHASSIS HOLE.  SOLDER TERMINALS OR 1/4" PUSH-ON.  FENDER PART NUMBER 0036570000.
Part #SW-525
$6.95


Click on photo for
larger view
SWITCH, STANDARD SIZE TOGGLE - MADE BY CARLING - RATED AT 15A, 125VAC.    TWO POSITION (ON/OFF), SINGLE POLE (SPST).  FITS 1/2" CHASSIS HOLE.  SOLDER TERMINALS.
Part #SW-526
$4.95


Click on photo for
larger view
SWITCH, STANDARD SIZE TOGGLE - RATED AT 15 Amps (125VAC) or 10 Amps (250VAC) - TWO POSITION (ON/ON).   Fits 1/2" chassis hole.   Screw terminals, or remove screws for soldered connections.    Double-pole double-throw, no center off - two positions (ON/ON).
Part #STS-15-DPDT
$5.95


Click on photo for
larger view
SWITCH, STANDARD SIZE TOGGLE - RATED AT 15 Amps (125VAC) or 10 Amps (250VAC) - THREE POSITION (ON/OFF/ON).   Fits 1/2" chassis hole.   Screw terminals, or remove screws for soldered connections.    Double-pole double-throw, with center off - three positions (ON/OFF/ON).
Part #STS-15-DPDT-CO
$6.50


Strat®, Stratocaster®, Esquire®, Telecaster®, Tele®, Jazzmaster®, Jaguar®, Mustang®, P.Bass®, J.Bass® and Fender® are registered trademarks of Fender® Musical Instruments. The replacement necks and bodies are for a Fender® or Squier® by Fender® guitar or bass. The distinctive headstock designs and the distinctive body designs of the Stratocaster®, Telecaster®, J.Bass®, P.Bass® and Tele® Bass are registered trademarks of Fender® Musical Instruments Co.
Peavey® is a registered trademark of Peavey® Electronics Corporation.
Mesa Boogie® is a registered trademark of MESA/Boogie® Ltd.
AmpRepairParts.com and Studio Sound Electronics are not affiliated with these companies.

Copyright ©2015 Studio Sound Electronics - All Rights Reserved
