Technician Aids

  Technician Aids

Click on photo for
larger view
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing a strain relief can be a frustrating job.   Standard pliers just do not get the job done and can damage the strain relief.   These special strain relief pliers are just what you need.  They fit perfectly on the AC power cord strain relief and give you the leverage you need to compress the strain relief for easy removal and installation, without damage.
Part #YTH-205 - Note: Limited Quantity available at the moment.
$14.95



Click on photo for
larger view
Revisit™ RESISTOR LEAD FORMING TOOL
You know you want one!   Bend resistors to fit in PC boards, perf boards, or turret boards exactly, uniformly.  Makes your repairs and kit builds look completely professional.   Works great on vintage Fender™ Blackface and Silverface models.   One side is for 1/2 watt resistors, the other side fits 1/4 watt resistors.   Also perfect for diodes.  Slots for radial lead resistors run along the length of the high impact ABS plastic former. Each slot is .05″ longer than the next and has radiused edges to make perfect, square, symmetrical  bends without stressing the leads.
Part #LF-010
$7.50


Click on photo for
larger view
1 INCH CHIP BRUSH
Chip brushes are very similar to a paint brush. The difference is, paint brushes may use bristles that will melt when in contact with certain solvents and are expensive (for the good ones anyway).  This is where chip brushes shine.   Chip brushes are made with natural China bristles that will hold up to flux, epoxy, glue, resin, stain, paint remover, solvents, cleaners, oils and more.

They also make a great dry duster to use in cleaning dust, spider webs, etc from the insides of amplifiers.

Chip brushes have a wood handle so they are firm and comfortable to use.    The best part, they cost much less than paint brushes so you can use them to apply sticky, nasty and harsh adhesives or even use them in a parts cleaner with solvent and when you are done with them, toss it out.    Bristles are 1 inch wide, total length of brush is 7 1/4 inches.
Part #CB-491

$0.69

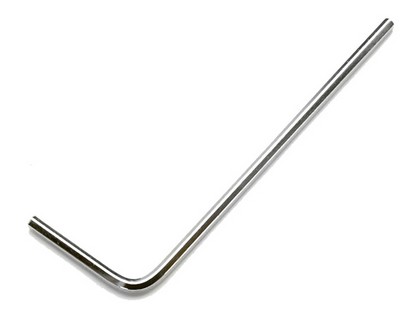

HEX KEY, 1.5MM
Also called an Allen wrench, this fits the hex insert on set-screws in many knobs, including the BHKCHK knob that we sell.

Part #HK1D5MM

$1.99


Click on photo for
larger view

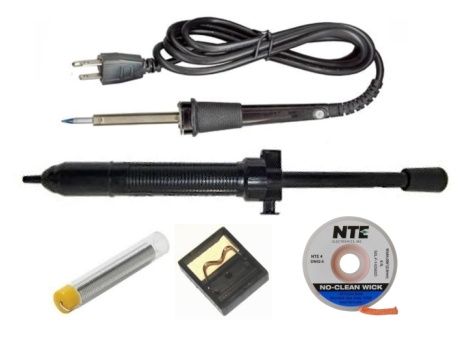

PROFESSIONAL SOLDERING KIT
High performance, long lasting tip, 3-wire grounded RSR Electronics professional soldering iron, 25 watts, UL approved. Small soldering iron stand with sponge. Pen-type solder dispenser containing quality 60/40 solder.  NTE No-Clean desoldering braid (5 ft roll). Professional Velleman 11" Desoldering Pump. A quality soldering kit for the professional which will stand up to repeated use, and give great results every time!  For use on 110-120VAC System only, as found in North America.
Part #PSTK-1



$29.95


Click on photo for
larger view

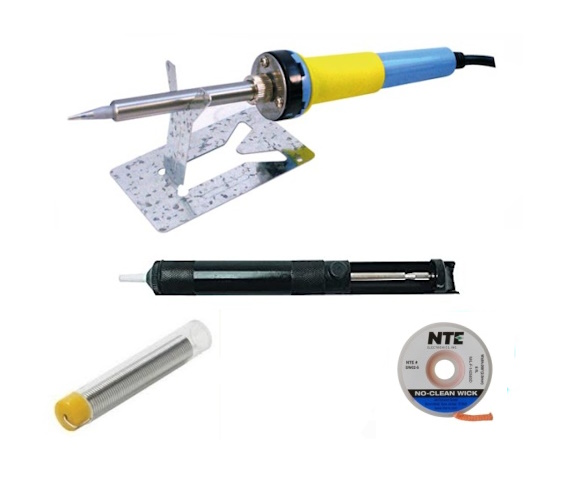

BASIC SOLDERING KIT
Kit equips the technician to solder and desolder quickly and effectively. Contains 30 watt standard soldering iron, 8" super desoldering pump for removing solder, NTE No-Clean desoldering braid for cleaning up PC board solder points, a small soldering iron stand, and a pen-type solder dispenser containing quality 60/40 solder for electronic work. Excellent value!   For use on 110V-120V AC systems only, as found in North America.  (Note:  Item appearance may vary slightly from the contents shown in the photo.)

Part #BSK-1



$17.95


Click on photo for
larger view



PROFESSIONAL SOLDERING IRON
High performance, long lasting tip, 3-wire grounded AC cord for safety. 25 watts, UL approved. Rubber sleeve for comfortable grip. Screw-in replaceable tip. A quality iron for the professional which will stand up to repeated use, and give great results every time! Compare the quality and durability with irons costing $30-$35 each.   This is the soldering iron on the bench in our own shop, and it has been faithfully working for over 6 years.  For use on 110-120VAC System only, as found in North America.   Replacement tip below.

Part #PSI-1



$20.95


Click on photo for
larger view

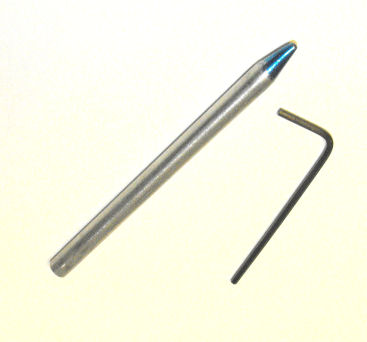

Replacement tip for the PSI-1 soldering iron, above.   Includes hex key wrench to fit the set screw in the soldering iron to facilitate changing the tip.    Part number 060607, $2.95.

Part #060607
$2.95


Click on photo for
larger view

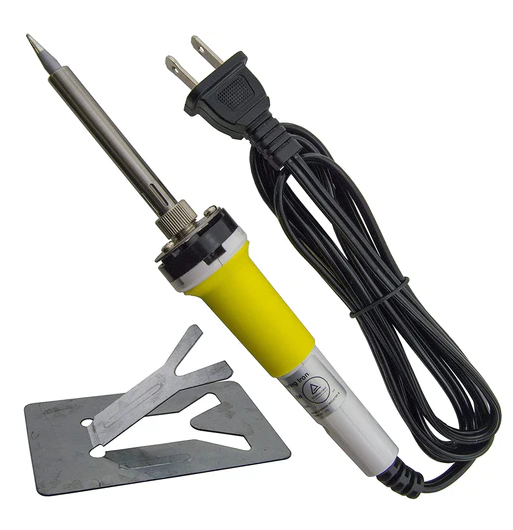

30W SOLDERING IRON - 110V
The Velleman VTSC30N1U is a 30W soldering iron that contains a reliable ceramic heating element.  Requires 110V power. Great for soldering projects of all shapes and sizes, the VTSC30N1U is an inexpensive yet reliable option for users with any experience level. The iron includes a metal stand.

Part #VTSC30N1U
$11.95


Click on photo for
larger view

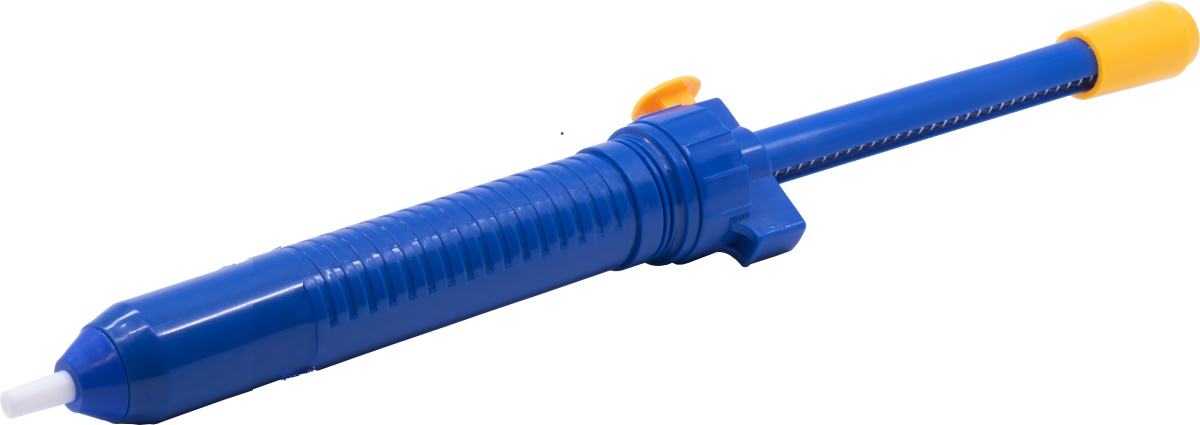

Pro 13" Desoldering Tool

Rugged precision 13 inch desoldering pump. High vacuum for fast, volume desoldering. Fully enclosed shaft for safety.  Uniform reset pressure, plunger lock for storage.   Heavy duty plastic.
Part #SS-1
$10.95


Click on photo for
larger view

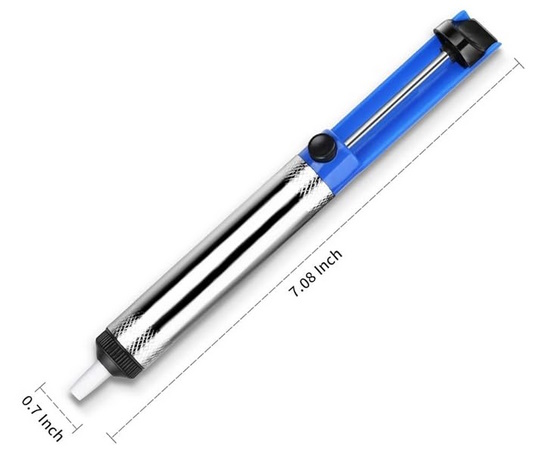

Desoldering Tool
Metal barrel for rugged, dependable operation!  High vacuum for fast desoldering. Uniform reset pressure.  At 7.5 inches long, it is big enough to do the job and small enough to fit in compact tool boxes and tool pouches.

Part #NBW-74

$5.95




Click on photo for
larger view
NTE No-Clean Desoldering Braid is made from fine copper wire woven together with a no-clean flux formula added to increase absorption and improve the desoldering action.   #4 Blue 0.098" Wide x 5 ft.   Meets Mil Spec MIL-F-142560D requirements.

Part #SW02-5

$6.50


Click on photo for
larger view
60/40 Solder in a Pen Dispenser

10 grams of pen-type rosin core solder, 20ga (.031 in) in a convenient pen-type dispenser.  Length of solder is 2 meters - about 7 ft.  Dispense only what you need.  Excellent for electronic work.


Part #6040P



$2.99


Click on photo for
larger view

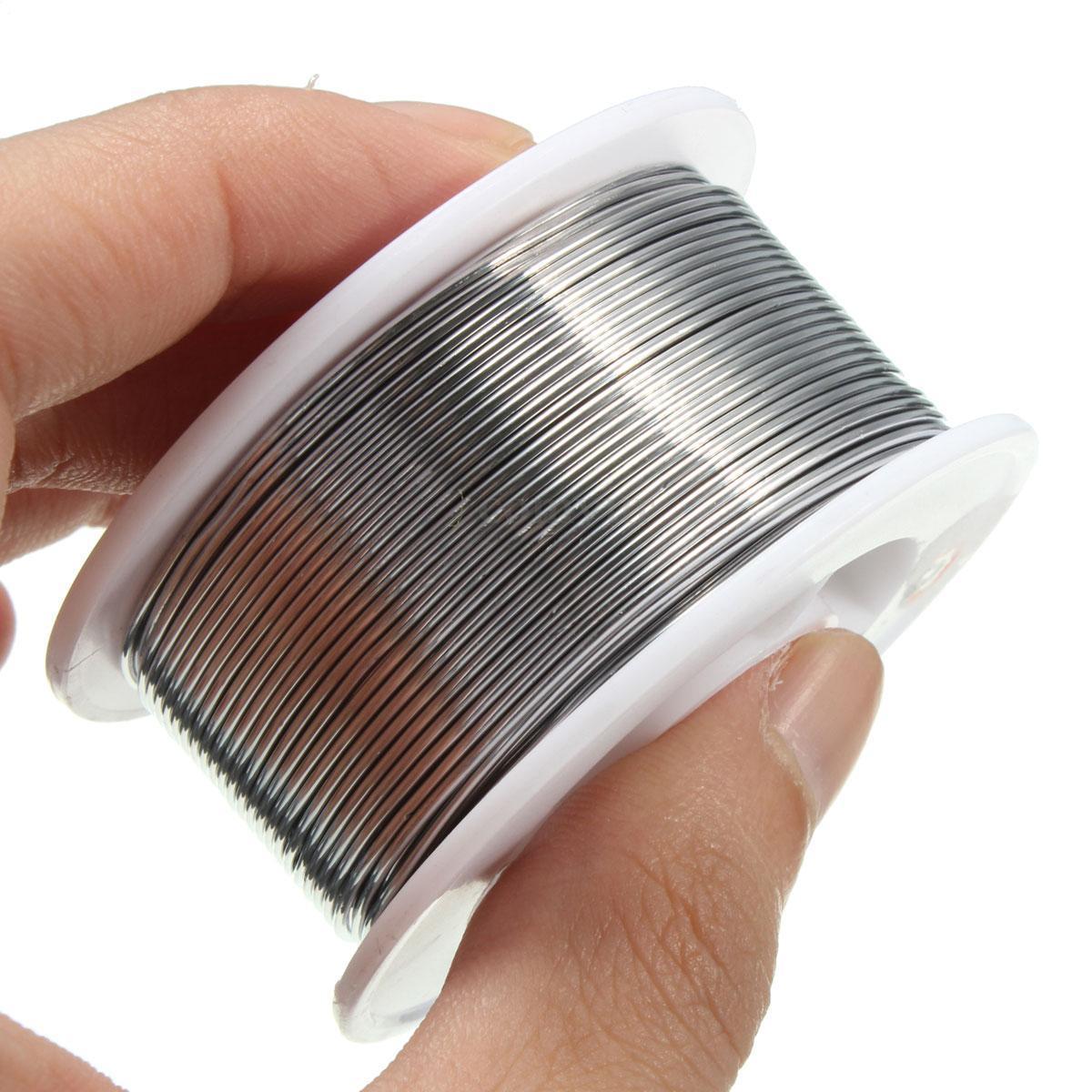

60/40 Rosin Core Solder, 1/2 lb spool, .031" diameter, from RSR Electronics

RSR Electronics Rosin core solder, 60/40, .031 inch diameter (.79mm) in a 0.5 lb spool (227 grams).  Length of solder is approximately 165 feet, or 50 meters.  Designed for electronic work.   Fast-acting, non-corrosive and non-conductive core flux for fast soldering and a strong, long-lasting bond.

Part #S6040-5



$29.95

Click on photo for
larger view

Revisit™ BiasEasy200
Cathode Current Measuring Probe

For 8-pin power tubes such as 6L6, 6V6, 5881, 6550, EL34, KT88, KT66, KT100,  etc.   Requires separate digital volt-ohmmeter capable of reading current.   This device reads cathode current.
Note:  This adapter will NOT test 7591 tubes.  Quality throughout, with a ceramic socket, gold-plated socket pins and gold-plated banana plugs to ensure solid connections and accurate readings.

Not a kit - this device is fully assembled and ready to use!  Complete with detailed instructions.   Used with a basic multimeter (Get Yours Here).
Part #RBE-200

$29.95


Click on photo for
larger view

Revisit™ BiasEasy800
The Bias Easy™ 800 measures the current in the power tubes of your amp. Includes two 8-pin probes with gold plated pins and socket, power adapter and  operating instructions.  Fully assembled and ready to use.  For 8-pin power tubes such as 6L6, 6V6, 5881, 6550, EL34, KT88, KT66, KT100, etc.   Not for 7591 tubes.

The Bias Easy™ 800 allows you to monitor the bias setting safely and easily. While adjusting the bias control pot of your amp, the Bias Easy™ shows the actual current flowing through each of two power tubes.   A switch on the meter allows you to go back and forth between the two tubes.  This lets you set and evaluate the full reasonable biasing range your amp and tubes offer so that you may find the perfect setting.  Complete instructions are included.

The bias setting has a dramatic impact on the amp's tone, response, break-up and dynamic character.
Part #RBE-800

$89.95


Click on photo for
larger view

Revisit™ BiasEasy1200 Quad Tube Amp Bias Tester
The Bias Easy™ 1200 measures the current in the power tubes of your amp.   Designed for amplifiers with 4 power tubes, such as 100 watt Marshalls and the Fender Twin Reverb.   (May also be used on amps with only 2 power tubes).   Includes four 8-pin probes with gold plated pins and socket, power adapter and  operating instructions.  Fully assembled and ready to use.  For 8-pin power tubes such as 6L6, 6V6, 5881, 6550, EL34, KT88, KT66, KT100, etc.   Not for 7591 tubes.

The Bias Easy™ 1200 allows you to monitor the bias setting safely and easily. While adjusting the bias control pot of your amp, the Bias Easy™ 1200 shows the actual current flowing through each of the four power tubes.   A rotary switch on the meter allows you to check each tube for current flow.  This lets you set and evaluate the full reasonable biasing range your amp and tubes offer so that you may find the perfect setting.  Complete instructions are included.

The bias setting has a dramatic impact on the amp's tone, response, break-up and dynamic character.
Part #RBE-1200

$124.95


Click on photo for
larger view

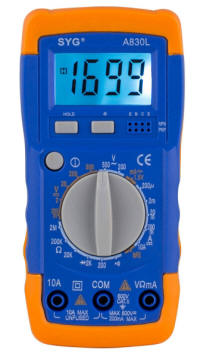

COMPACT DIGITAL MULTIMETER.  Compact, reliable, inexpensive.   Dimensions:  5-3/4" L x 2-7/8" W x 1-1/2" H
  • LCD backlit for low light situations
  • Rubber outer case makes it shock resistant
  • Flip out stand for workbench testing
  • Continuity tone for blind testing
  • Right angle banana jack test leads save space
  • DC Voltage: 200mV/2V/20V/200V/600V
  • AC Voltage: 200mV/2V/20V/200V/600V
  • DC Current: 200uA/2mA/20mA/200mA/2A/10A
  • Resistance: 200/2K/20K/200K/2M/20M Ohm
  • 3-1/2 digit, 1999 count display measures AC/DC voltage, DC current, ohms and diode/transistor check.   Works well with our bias probes, and for general trouble-shooting.  Backlit LCD display, easy-to-read 1/2" high digits,
    Includes test leads, standard 9V battery and owners manual.
    Part #A830L

    $22.95


    Click on photo for
    larger view
    ORANGE WOOD STICK, SET OF 2
    This stick is a great addition to any tool kit. Made of non-conductive orange wood, this stick is perfect for probing amps, moving wires and generally moving anything where your fingers should not be. These are also great for cleaning dried rosin flux off boards and components. These are ESD safe and environmentally friendly.   Set of 2 sticks.
    Part #OWS-2
    $0.59
    (for a set of 2 sticks)


    Click on photo for
    larger view

    EXTRA LONG COTTON SWABS

    A bag of 100 cotton swabs. 6" long with long, sturdy wooden handles. Single, compacted cotton tip with less lint than regular cotton swabs. Perfect for those hard-to-reach areas in guitar amps, power amps, mixers, and guitar electronics cavities.  Also great for cleaning cassette decks, VCRs and CD or DVD players.  Use on audio heads, CD/DVD lasers, rollers, guides and other devices in the tape path.Great for model making, ceramics, jewelry, hobby, arts and crafts. Versatile tool for cleaning, detailing, and applying paint, glue, epoxy, lubrication, etc.  NOT FOR MEDICAL USE.

    Part #CCS-100 (100 Pack)

    CCS-100
    (100 Pack)
    $3.49
