Plugs


  ¼" Plugs


Click on photo for
 larger view
PLUG, ¼", NEUTRIK/REAN MONO, SOLDER TERMINALS, STRAIN RELIEF
Heavy-duty machined copper alloy handle, tip, and body for unsurpassed ruggedness. Bright nickel plating on exterior surfaces will not chip or corrode. Solder terminals are tin electroplated for ease of soldering. One-piece tip rod staked into tip terminal to ensure electrical continuity. Heavy-duty cable clamp provides secure strain relief.   Very similar to Switchcraft 280.
Part #NYS224
$1.99



Click on photo for
 larger view

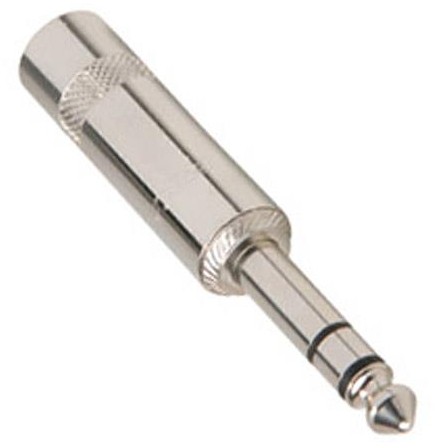

PLUG, ¼", NEUTRIK/REAN STEREO, SOLDER TERMINALS, STRAIN RELIEF
Heavy-duty machined copper alloy handle, tip, and body for unsurpassed ruggedness. Bright nickel plating on exterior surfaces will not chip or corrode. Solder terminals are tin electroplated for ease of soldering. One-piece tip rod staked into tip terminal to ensure electrical continuity. Heavy-duty cable clamp provides secure strain relief.   Very similar to Switchcraft 297.
Part #NYS228
$2.99



Click on photo for
 larger view

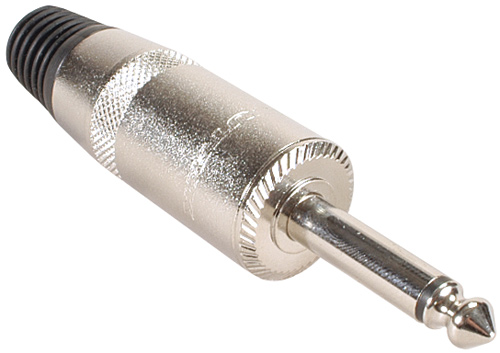

PLUG, ¼", NEUTRIK/REAN MONO, SOLDER TERMINALS, STRAIN RELIEF, EXTRA LARGE BODY
Commercial wide-body 1/4" mono phone plugs designed specifically for use with heavy-gauge speaker wire. Features machined turned brass construction, large cable clamp and solder tabs that accept up to 12 gauge wire. 8mm cable entry. • Nickel Shell • Mfg. #NYS225
Part #NYS225
$3.99


Click on photo for
 larger view
PLUG, ¼", STEREO, RIGHT ANGLE, SOLDER TERMINALS, STRAIN RELIEF
¼" Mono 3-Conductor Right Angle Flat-Back Plug (Similar to Switchcraft Type 228).    Excellent quality construction - almost indistinguishable from the 228.
Used for a variety of applications where Tip/Sleeve connections are needed and space is at a premium.   Frequently found on single Fender® footswitch boxes. Includes Hardware.
Part #P-195
$3.95


Click on photo for
 larger view
PLUG, ¼", STEREO, RIGHT ANGLE, SOLDER TERMINALS, STRAIN RELIEF
¼" Stereo 3-Conductor Right Angle Flat-Back Plug (Similar to Switchcraft Type 238).    Excellent quality construction - almost indistinguishable from the 238.
Used for a variety of applications where Tip/Ring/Sleeve connections are needed and space is at a premium.   Frequently found on footswitch boxes - particularly the footswitch box on the Fender® Reissue '65 Twin and Deluxe Reverb amps.  Includes Hardware.
Part #P-305
$4.95


Click on photo for
 larger view
PLUG, ¼", MONO, RIGHT ANGLE, SOLDER TERMINALS, STRAIN RELIEF
Excellent reproduction of the classic Switchcraft 226 right-angle plug.   Nickel plated copper alloy.
Part #P-287
$2.95


Click on photo for
 larger view
F-CAP
This is the frequently lost Fender-logo plastic cap that snaps onto the 1/4" right-angle speaker plug on vintage Blackface and Silverface Fender® amplifiers from the 1960's and 1970's.  Exact fit and replacement.  For the plug, see the P-055 plug below.
Part #F-CAP
$5.99


Click on photo for
 larger view
Fender® Right-Angle Speaker Plug
Replacement Fender® right-angle speaker plug on vintage Blackface and Silverface Fender® amplifiers from the 1960's and 1970's.   Uses the F-CAP, above (not included - sold separately).
Part #P-055
$11.99

  1/8" Plugs


Click on photo for
 larger view

larger view
PLUG, 1/8", GOLD, SOLDER TERMINALS, STRAIN RELIEF
Gold-plated for maximum conductivity, spring strain relief, 3.5mm (1/8 inch) T/R/S stereo - commonly used for stereo headphones.
Part #P-125
$1.29

  Quick Connects


Click on photo for
 larger view

¼" FULLY INSULATED FEMALE QUICK CONNECT TERMINAL CONNECTOR - 14GA or 16GA wire.
For connections to terminals on PC boards in many amplifiers.  For ¼" width terminals.   Fully insulated for safety.   Blue - designed for 14-16ga wire.    Requires standard crimp terminal tool for proper wire connection.   Pack of 12 connectors.
Part #FC-6225

$2.49
(for 1 dozen connectors)




Click on photo for
 larger view

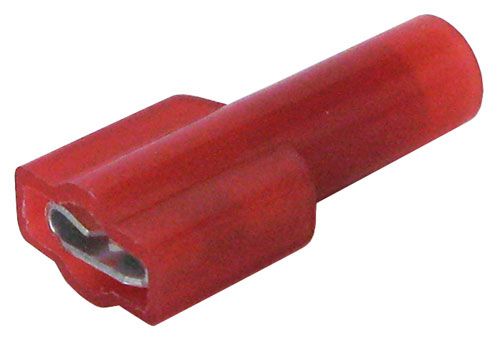

¼" FULLY INSULATED FEMALE QUICK CONNECT TERMINAL CONNECTOR - 18GA to 22GA wire.
For connections to terminals on PC boards in many amplifiers.   For 1/4" width terminals.  Fully insulated for safety.   Red - designed for 18-22ga wire.    Requires standard crimp terminal tool for proper wire connection.   Pack of 12 connectors.
Part #FC-6125

$2.49
(for 1 dozen connectors)




Click on photo for
 larger view

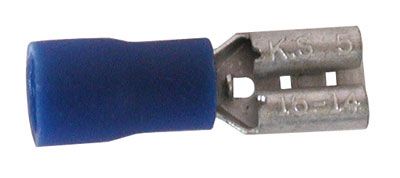

3/16" FEMALE QUICK CONNECT TERMINAL CONNECTOR - 14GA or 16GA wire.
For connections to speakers in many amplifiers.   For ¼" width terminals.   Blue - designed for 14-16ga wire.    Requires standard crimp terminal tool for proper wire connection.   Pack of 12 connectors.
Part #FC-1250

$1.29
(for 1 dozen connectors)




Click on photo for
 larger view

3/16" FEMALE QUICK CONNECT TERMINAL CONNECTOR - 18GA-22GA
For connections to speakers in many amplifiers.   For 3/16" width terminals. Red - designed for 18-22ga wire.    Requires standard crimp terminal tool for proper wire connection.   Pack of 12 connectors.
Part #FC-1150

$1.29
(for 1 dozen connectors)




Click on photo for
 larger view

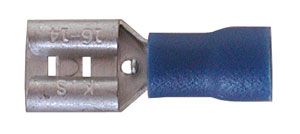

1/4" FEMALE QUICK CONNECT TERMINAL CONNECTOR - 14GA or 16GA wire.
For connections to speakers in many amplifiers.   For ¼" width terminals.  Blue - designed for 14-16ga wire.    Requires standard crimp terminal tool for proper wire connection.   Pack of 12 connectors.
Part #FC-1225

$1.29
(for 1 dozen connectors)




Click on photo for
 larger view

1/4" FEMALE QUICK CONNECT TERMINAL CONNECTOR - 18-22GA WIRE
For connections to speakers in many amplifiers.   For ¼" width terminals.  Blue - designed for 18-22ga wire.    Requires standard crimp terminal tool for proper wire connection.   Pack of 12 connectors.
Part #FC-1125

$1.29
(for 1 dozen connectors)





Speaker Harnesses







Click on photo for
 larger view

Revisit™ SPEAKER HARNESS, 2 ft LONG, RIGHT-ANGLE PLUG TO BARE TINNED WIRE, 16 GAUGE CABLE
Replacement right-angle plug with 24" cable and stripped, tinned bare wire.    Used to replace speaker cable in many combo amplifiers where the speakers are connected to the amplifier chassis via a 1/4" jack and plug.   Heavy-duty 16ga round black speaker cable, right-angle plug and bare wire ready for soldering to one speaker.
Part #SCH-7090

$4.99





Click on photo for
 larger view

Revisit™ SPEAKER HARNESS
Replacement right-angle plug with 34" cable and 3/16" fast-on connectors.    Used to replace speaker cable in most combo amplifiers where the speakers are connected to the amplifier chassis via a 1/4" jack and plug.   18ga black zip cord, right-angle plug and fast-on connectors for attachment to one speaker.
Part #SCH-280

$6.50




Click on photo for
 larger view

SPEAKER JUMPER CABLE
polyvinyl insulated silver plated copper speaker wire, 18 gauge, twisted pair, black and white.   Terminated at each end in standard 3/16" speaker fast-on connectors.   Great for connecting speakers in parallel in 2x12 or 4x12 cabinets.   24 inches (61 cm) long.   Made in USA.
Part #SJ-150

$5.99




Click on photo for
 larger view

FAST-ON CONNECTOR JUMPER CABLES - 1/4 INCH TERMINALS  18 INCHES LONG
polyvinyl insulated silver plated copper jumpers, 18 gauge, individual, black and red.   Terminated at each end in standard 1/4" speaker fast-on connectors.  (Note that many speakers use 3/16" terminals, which are smaller than these connectors).  May be used for internal connections in many amplifiers (Marshall, Fender, etc) which use PC board mounted 1/4" terminals.   18 inches (46 cm) long.   Made in USA.   Each set contains one red and one black jumper.
Part #FJ-180

$1.59





Click on photo for
 larger view

Revisit™ SPEAKER CABLE - HEAD TO CABINET - 4 FEET LONG
Black 4 feet 16 gauge speaker cable, with one straight 1/4 inch plug and one right-angle 1/4 inch plug.   Used to connect amplifier head to cabinet.

Part #SCH-7028

$4.99





Click on photo for
 larger view

Revisit™ Fender® STYLE  SPEAKER HARNESS - VINTAGE
  Replacement vintage style Fender® right-angle plug with Fender® "F-Cap".   18" vintage style white and black twisted cable with cloth insulation and 1/4" fast-on connectors.    Used to replace speaker cable in most Fender® blackface and silverface amplifiers with one or two speakers.     If speakers have 3/16" (.187") terminals, consider the F1F2 adaptor below.
Part #FSH-191

$19.99





Click on photo for
 larger view
Revisit™ F1 to F2 Faston Push-on Terminal Adaptors
Used to change the size of speaker terminals from .187" (3/16") to .250" (1/4").  Also used to change some PC board connectors' size.   Female .187" to male .250"
Part #F1F2
$1.89
(Set of 2 adaptors)




Click on photo for
 larger view

Revisit™ Fender® STYLE SPEAKER HARNESS - VINTAGE
   For Fender® amps with two speakers that need the complete speaker wiring replaced (Pro Reverb, Twin Reverb, Vibrolux Reverb, etc)  Replacement vintage style Fender® right-angle plug with Fender® "F-Cap".   18" vintage style white and black twisted cable with cloth insulation and 31/4" fast-on connectors.   Additional 19" cloth-insulated jumper with fast-on connectors used to bridge the two speakers together.  Used to replace speaker cable in most Fender® blackface and silverface amplifiers with two speakers.       If speakers have 3/16" (.187") terminals, consider the F1F2 adaptor.
Part #FSH-192

$27.99



Click on photo for
 larger view

Revisit™ Fender® STYLE SPEAKER HARNESS FOR VIBRO KING (1993-Present)
For the Fender® Vibro King amps with three 10" speakers that need the complete speaker wiring replaced.  Replacement vintage style Fender® right-angle plug with Fender® "F-Cap".   24" style white and black twisted polyvinyl cable 3/16" fast-on connectors.   Two additional 24" jumpers with fast-on connectors used to bridge the three speakers together.  This cable harness is designed only for the Fender® Vibro King.    If speakers have 3/16" (.187") terminals, consider the F1F2 adaptor.
Part #FSH-193

$29.99



Click on photo for
 larger view

Revisit™ Fender® STYLE SPEAKER CABLE HARNESS -  12" LONG
Replacement Fender® style 18 gauge speaker cable with metal RCA plug, 3/16" fast-on connectors and 12" white and black twisted polyvinyl insulated cable.   Used to replace speaker cable in most vintage Fender® blackface and silverface Champ, Bronco, or VibroChamp amplifiers.
Part #CSH-120

$14.99





Click on photo for
 larger view

Revisit™ Fender® STYLE SPEAKER CABLE HARNESS - 12" LONG, WITH REPLACEMENT RCA JACK
Replacement Fender® style 18 gauge speaker cable with metal RCA plug, 3/16" fast-on connectors and 12" white and black twisted polyvinyl insulated cable.    Also includes replacement phenolic RCA speaker jack.  Used to replace speaker cable and speaker jack in most vintage Fender® blackface and silverface Champ, Bronco, or VibroChamp amplifiers.
Part #FCJC-120

$16.99





Click on photo for
 larger view

Revisit™ Fender® STYLE  SPEAKER CABLE HARNESS -  18" LONG
Replacement Fender® style 18 gauge speaker cable with metal RCA plug, 3/16" fast-on connectors and 18" white and black twisted polyvinyl insulated cable.   Used to replace speaker cable in some vintage Fender® tweed amplifiers.
Part #TSH-180

$16.99





Click on photo for
 larger view

Revisit™ Fender® STYLE SPEAKER CABLE HARNESS -  18" LONG, WITH REPLACEMENT RCA JACK
Replacement Fender® style 18 gauge speaker cable with metal RCA plug, 3/16" fast-on connectors and 18" white and black twisted polyvinyl insulated cable.  Also includes replacement phenolic RCA speaker jack.  Used to replace the speaker cable and speaker jack in some vintage Fender® tweed style amplifiers from the 1950s.
Part #FTJC-180

$18.99





Click on photo for
 larger view

Revisit™ Fender® STYLE SPEAKER JUMPER - VINTAGE
   For Fender® amps with two speakers in parallel, this is the jumper that connects the speakers to each other. (Pro Reverb, Twin Reverb, Vibrolux Reverb, etc)     19" vintage style white and black twisted cable with cloth insulation and 1/4" fast-on connectors on each end.   Used to replace speaker jumper in most Fender® blackface and silverface amplifiers with two speakers.   For speakers wired in series, the two wires may be easily separated so that one wire can be used as the jumper.    If speakers have 3/16" (.187") terminals, consider the F1F2 adaptor.
Part #FSJ-190

$7.99



Click on photo for
 larger view

Revisit Fender® STYLE 'SPIDER' SPEAKER HARNESS FOR SUPER REVERB - VINTAGE
Replacement vintage style Fender® right-angle plug with Fender® "F-Cap".   Prewired to the distribution connector which is to be mounted in the center of the Super Reverb cabinet.   From there, 4 separate wire runs, one for each 10" speaker.  Painstakingly made to reproduce the look and feel of the original:   Cloth-covered white and black 18ga wire, fiber spider distribution connector, F-Cap type plug with the Fender® "F" logo.   Used to replace the complete speaker harness in most Fender® blackface and silverface Super Reverb amplifiers from the 60's and 70's.    Just screw down the spider distribution connector inside the cabinet, solder the wire to the 4 10" speakers, and plug into the rear of the amplifier.
Part #FSH-724

$39.99





Click on photo for
 larger view

Revisit™ Fender® STYLE 'SPIDER' SPEAKER HARNESS FOR 2X10 or 2X12 COMBO AMPS - VINTAGE
Replacement vintage style Fender® right-angle plug with Fender® "F-Cap".   Prewired to the distribution connector which is to be mounted in the center of the cabinet.   From there, 2 separate wire runs, one for each speaker.  Painstakingly made to reproduce the look and feel of the original:   Cloth-covered white and black 18ga wire, fiber spider distribution connector, F-Cap type plug with the Fender® "F" logo.   Used to replace the complete speaker harness in most Fender® blackface and silverface Pro Reverb, Twin Reverb, Vibrolux Reverb, Vibroverb amplifiers from the 60's and 70's.    Just screw down the spider distribution connector inside the cabinet, solder the wire to the two speakers, and plug into the rear of the amplifier.
Part #FSH-608

$33.99





Click on photo for
 larger view
Revisit™ Fender® STYLE 'SPIDER' DISTRIBUTION CONNECTOR FOR BLACKFACE SPIDER SPEAKER HARNESSES
Replacement vintage style Spider distribution board, used to tie together speaker wires in some vintage blackface Fender® amps, particularly the vintage blackface Super Reverb.   Also found in some blackface 2-speaker amps, including the Pro Reverb, Twin Reverb, Vibrolux Reverb, and Vibroverb amplifiers from the 60's.

Part #FS
J-428
$5.99



Other Connectors








Click on photo for
larger view

8 INCH INSTRUMENT CABLE BY Revisit™
Short 8 inch connecting cable, shielded, with right-angle metal plugs at each end.   Designed as a reliable interconnection cable between pedals.  8 inches long (203mm)
Part #EC-5022

$2.89



Click on photo for
larger view

12 INCH INSTRUMENT CABLE BY Revisit™
Short 12 inch connecting cable, shielded, with straight metal plugs at each end.   Made with quality 1/4" plugs and low-noise professional cable.  Designed as a reliable interconnection cable between pedals, in patch bays, etc.   Not for use as speaker cable!   12 inches cable length (305mm).   Total end-to-end length (plug tip to plug tip) is 18 inches
Part #EC-5026

$2.99


Click on photo for
 larger view

PLUG, FEMALE XLR TYPE
Heavy-duty plastic case.  3-pin, female, solder cup connections.   Typically used to connect to microphones.


Part 27-10211



Special Price!
$0.99






Click on photo for
 larger view

Fender® Style RCA Plug from Switchcraft
This is the original Switchcraft RCA plug used on vintage Fender amps for footswitch and reverb in / out connections. For cable up to 0.125" (3.18mm) diameter.
Part #P-3501MX

$0.79




Click on photo for
larger view

Fender® RCA VIBRATO SHORTING PLUG   Did you know that on medium to large vintage Fender® amps (Blackface, Silverface), the reverb will work without a footswitch plugged in, but the vibrato will not?   This handy-dandy little RCA shorting plug will fix that problem, if you do not own or prefer not to use a footswitch on your vintage 60s or 70s Fender® amp.   Just plug this little RCA plug gadget into the vibrato footswitch jack on the back panel, and your vibrato will come alive.    Turn the intensity knob to zero to cut out the vibrato when this plug is inserted.  Note:  Does not apply to Vibro Champ, Princeton, or Princeton Reverb amps.  Inserting this plug turns the vibrato off in those models, removing the plug turns it on.
Part #FSP-100

$1.99




Click on photo for
 larger view

¼" VIBRATO SHORTING PLUG   Did you know that on medium to large 65 reissue Fender® amps ('65 Deluxe Reverb Reissue, '65 Super Reverb Reissue, and the '65 Twin Reverb Reissue), the reverb will work without a footswitch plugged in, but the vibrato will not?   This handy-dandy ¼" shorting plug will fix that problem, if you do not own or prefer not to use a footswitch on your '65 reissue Fender® amp.   Just plug this little plug gadget into the footswitch jack on the back panel, and your vibrato will come alive.    Turn the intensity knob to zero to cut out the vibrato when this plug is inserted.  Note:  Does not apply to the '65 Princeton Reverb Reissue amps, as this plug is not required for vibrato to function in the Princeton Reverb.
Part #FSP-305

$5.99




Click on photo for
larger view

POWER BARREL PLUG
Replacement barrel power plug for many AC Adapters.  Connector is the popular 2.1mm x 5.5mm barrel plug found on many Adapters.   Soldering required to attach to cable.
Part #BP-573

$0.99





Speakon® Adapters






Click on photo for
 larger view

SPEAKON® - 1/4" MONO JACK Adapter
Quickly and easily converts Speakon® NL4 amplifier outputs or speaker cabinet inputs for use with standard 1/4" speaker cables. Neutrik Speakon® series of professional speaker and amplifier connectors are recognized as the industry standard. Patent protected, reliable, cost effective, and extremely durable the Speakon® system offers the "quick lock" locking system. The contacts in this series are touch proof and designed to prevent damage from arcing if disconnected under load. Ensuring fail-safe conditions for both the equipment and the operator. Speakon® meets the prevailing safety standards of IEC65, IEC348, CE, CSA and are UL rated (file #E135070). Connector type: Adapter to 1/4" 2-pole phone jack (6.3 mm), connects "1+" to Tip and "1-" to Sleeve of 1/4" jack, same dimensions as NL4FC.
Part NA4LJX

$9.99



DIN Plugs






Click on photo for
 larger view

DIN PLUG, MALE, 5-PIN
Rubber sleeve and strain-relief.  Black in color.   Replacement for MIDI connector.
Part SD-50

$3.95


Click on photo for
 larger view

DIN PLUG, MALE, 6-PIN
Rubber sleeve and strain-relief.  Gray in color.   Replacement for 6-pin connector on many Peavey footswitches.   Mates with the J-520 chassis-mount jack, found on this page
Part SD-60

$3.95


Click on photo for
 larger view

DIN PLUG, MALE, 7-PIN
Rubber sleeve and strain-relief.  Gray in color.   Replacement for 7-pin connector on many Peavey footswitches.   Mates with the J-516 chassis-mount jack, found on this page
Part SD-70

$3.95
