Marshall™
Power Cords & Connections

We carry a complete selection of Marshall™ Amplifier parts for both vintage and modern amps.

Back to Marshall™ Amp Parts Index



Click on photo for
larger view
Revisit™ 6 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 6 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Common replacement cord for use on many guitar amps, power amps, effects units, etc.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-300
$6.95


Click on photo for
larger view
Revisit™ 10 ft POWER CORD, DETACHABLE, 3-WIRE, 18ga, 10 ft LONG, IEC CONNECTOR AT EQUIPMENT END.  Replacement cord for many guitar amps, power amps, effects units, etc. 10 ft length giveS extra flexibility in equipment placement, reduces use of extension cords.   Standard NEMA 5-15 plug for North American use at 110-120 Volts AC.    IEC connector at equipment end.   Used only in North America.
Part #PC-600
$10.95


Click on photo for
larger view
SUPER-LONG, 16 gauge Revisit™ 15 ft POWER CORD, 3-WIRE, SJT type,    OUR LONGEST POWER CORD!  Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length is a super-long 15 feet, cord thickness is 0.31 inches (about 5/16" or 7.9mm).  Standard NEMA 5-15P plug for North American use at 110-120 Volts AC ,rated at 13 amps maximum.  Used only in North America.
Part #PC-163SJT15
$19.95


Click on photo for
larger view

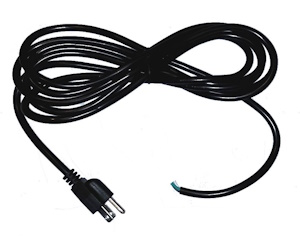

EXTRA-LONG 12 ft POWER CORD, 3-WIRE, 18ga, 10 Amps, SJT type.   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length is an extra-long 12 feet, cord thickness is 0.29 inches (about 9/32"" or 7.3mm).   Wire gauge is 18AWG, rated at 10 amps.  This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Fender, for example).    Standard NEMA 5-15 plug for North American use at 110-120 Volts AC, 13 Amps Max. Used only in North America.
Part #PC-183SJT12
$13.95


Click on photo for
larger view
8 ft POWER CORD, 3-WIRE, 18ga, SJT type.   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length 8 feet, 18 gauge, cord thickness is 0.29 inches (about 9/32" or 7.3mm).   This cord is of appropriate gauge and physical thickness for application in most medium to large guitar amps with "hard-wired" power cords (Fender, for example).    Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in North America.
Part #PC-183SJT8
$9.95


Click on photo for
larger view
8 ft POWER CORD, 3-WIRE, 18ga, SVT type, "Thin Line".   Cut ends for installing (soldered connection) into many vintage amps using a 3-wire cord (or for upgrading 2 wire cords in older amps).    Cord length 8 feet, 18 gauge, cord thickness is 0.24 inches (about 1/4" or 6.1mm).   Thinner than the PC-183SJT8 cord, this cord is better suited for replacing amp cords in smaller amplifiers where there was formerly a 2-wire cord without ground.  Standard NEMA 5-15 plug for North American use at 110-120 Volts AC. Used only in North America.
Part #PC-183SVT8-TL
$9.95


Click on photo for
larger view
15 ft EXTENSION CORD, 3-WIRE, 16ga, 13 Amps.   Quality extension cord for use on stage, at home, office or workshop.  Cord length is 15 feet, 16 gauge, 3-wire cord thickness is 0.31 inches (about 5/16" or 7.9mm).   Standard NEMA 5-15P plug and NEMA 5-15R single receptacle for North American use at 110-120 Volts AC, 13 amps maximum. Used only in North America.
Part #EC-5301
$19.95


Click on photo for
larger view

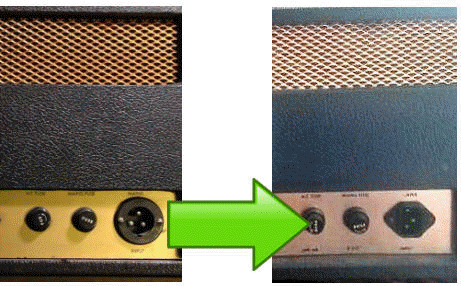

IEC POWER CONNECTOR, VERTICAL, DROP-IN REPLACEMENT FOR OLD BULGIN "PIGNOSE" CONNECTOR USED ON EARLY MARSHALL AMPS
This connector by Bulgin has the same mounting specs as the original Bulgin "Pig-Nose" AC connector on early Marshalls, including the JMP and JTM series.  Convert your early Marshall to use a convenient standard IEC power cord with this IEC connector with matching screw holes.   The original "Pig-Nose" connectors and compatible power cords are obsolete and extremely rare and expensive.   This connector works with our PC-300 and PC-600 power cords.   Note:   The mounting hole in the amp chassis needs to be 29mm (1-1/8") in diameter in order for the BCR-579 connector to fit.   This is the case on most JMP and JTM models, but a few have a slightly smaller hole and may require the hole to be enlarged.

Part #BCR-579
$6.50


Click on photo for
larger view
IEC POWER CONNECTOR, NON-FUSED, WIRED TYPE, SCREW ATTACHMENT TO PANEL
Popular IEC type AC connector found in many amplifiers and effects units.   Designed to mount in 0.8" x 1.10" rectangular panel hole.   Screw holes are 1.57" apart, center-to-center. Connectors are for push-on terminals, or may be soldered.  Rated at 10 amps.
Part #P-S2-106
$2.95


Click on photo for
larger view
IEC POWER CONNECTOR, MARSHALL, NON-FUSED, PCB MOUNT
Used in the Marshall JCM2000 series.  Original Marshall part number SKTP-00034.   Datasheet here.

Part #SKTP-00034
$5.95


Click on photo for
larger view
15 AMP GROUNDED AC CONVENIENCE OUTLET WITH WIRES.
Leviton# 1374-001 or equiv. Black, three-conductor outlet. Snap-mounts in 1" square cutout. Rated 15 Amps @ 125Vac. Two 6" 14 AWG leads and one 6" 16 AWG ground lead. UL, CSA.  Used as a convenience outlet on the back panel of some amplifiers.
Part #ACS-31
$4.79


Click on photo for
larger view
LARGE SIZED STRAIN RELIEF FOR 35/64" X 5/8" HOLE
Popular strain relief found on most vintage guitar amplifiers with round power cords, including most vintage Fender™ amps.   Designed for 5/16" cord diameter (3 conductor 18ga power cable).   Click here for specific dimensions of chassis hole.  For a strain relief removal / installation tool to make the job much easier, see the YTH-205 below.
Part #SR-1200
$0.99


Click on photo for
larger view
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing a strain relief can be a frustrating job.   Standard pliers just do not get the job done and can damage the strain relief.   These special strain relief pliers are just what you need.  They fit perfectly on the AC power cord strain relief and give you the leverage you need to compress the strain relief for easy removal and installation, without damage.
Part #YTH-205
$14.95


Click on photo for
larger view
SMALL RUBBER CHASSIS GROMMET FOR 3/8 INCH CHASSIS HOLE (GROMMET INNER HOLE 1/4 INCH)
Chassis grommet, for electrical insulation, wire protection and management, shock absorption, or mechanical isolation.    This grommet has a 1/4 inch diameter inner hole, and mounts in a 3/8 inch chassis hole.   Full datasheet here.
Part #RCG-739
$0.49
each


Click on photo for
larger view
LARGE RUBBER CHASSIS GROMMET FOR 1/2" CHASSIS HOLE (GROMMET INNER HOLE 3/8 INCH)
Chassis grommet, for electrical insulation, wire protection and management, shock absorption, or mechanical isolation.    This grommet has a 3/8 inch diameter inner hole, and mounts in a 1/2 inch chassis hole.   Full datasheet here.
Part #RCG-745
$0.49
each


Click on photo for
larger view
Fender™ style reverb or AC cable clamp.   Used on Fender amps since the early 60s to hold the reverb cable to the side of the cabinet.   Clamp is 3/8" diameter, comes with 3/4" screw for mounting.  Also used in some amplifiers to hold the AC cord to the cabinet wall.  Fender part number 022941.   Works on many other brands of amplifiers as well.
Part #
RCC-381
$0.99
