Here you will find a selection of guitar amplifier parts which can be difficult to locate.    "What you cant find anywhere else ... find it at AmpRepairParts.com!"

Power Connections     Fans     Footswitches       Fuses & Fuse Holders

Handles     Hardware     Jacks     Speaker Harnesses

Knobs     Potentiometers     Switches     Tools



Description

Price Purchase

AQUA

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.   AQUA - the latest addition to jewel colors!   Aqua is a greenish blue, similar to cyan or light turquoise.  Replaces Fender™ part number 0990949000.   *Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.


Part #JL-115Q
$4.65


Click on photo for
larger view
NEW! BRIGHT LED INDICATOR LAMP, REPLACES #47 BULB,
T-3-1/4, 6.3V, BAYONET BASE

Drop-in replacement long life LED replacement lamp for pilot lamps.  Fits Fender amps which are designed for the P-47 type incandescent bulb (including most Fender amps from the 1950s through the present).   The LED replacement is long lasting, runs much cooler, and is substantially brighter than the P-47 incandescent bulb.  If  less brightness is desired, install a series resistor feeding the lamp socket (1/4 or ½ watt, value between 560Ω and 1KΩ).  Sold individually.  Add new pizzazz to your amp with a brighter lamp on the front panel, and one which pays for itself in the long run with exceptionally long life.   Works on 6 volts, AC or DC.   Color is warm white.   NOTE: NOT RECOMMENDED FOR USE WITH THE PURPLE J-115P JEWEL - WILL RESULT IN A DEEP BLUE COLOR RATHER THAN PURPLE.
Part #LED-47
$2.95


Click on photo for
larger view
NEW!  COOL BLUE BRIGHT OUTPUT LED INDICATOR LAMP, REPLACES #47 BULB, T-3-1/4, 6.3V, BAYONET BASE
Drop-in replacement long life BLUE OUTPUT LED replacement lamp for pilot lamps.  Fits Fender amps which are designed for the P-47 type incandescent bulb (including most Fender amps from the 1950s through the present).   The LED replacement is long lasting, runs much cooler, and is substantially brighter than the P-47 incandescent bulb. Works on 6 volts, AC or DC. Output color is cool blue.  When used with different colored jewels, creates a different color and a different vibe!  See the results below:

Jewel Color

Resulting Look

Brightness Level

JL-115A Amber Yellow High
JL-115B Blue Medium Blue High
JL-115C Clear Crystal Blue High
JL-115G Green Light Green High
JL-115P Purple Deep Blue Medium
JL-115Q Aqua Light to Med. Blue High
JL-115R Red Orange Medium
JL-115V Violet Bluish Violet Low
JL-115W White Baby Blue Low

Part #LED-47B

$2.95


Click on photo for
larger view
BALL HEAD MESH GRILLE AND WINDSCREEN FOR SHURE
Fits the majority of "58-style" microphones, including the Shure
SM58, SM48, Beta 58A, SM58LC, SV100, RK143G, PGX2, Pyle PDMIC58, and virtually any other ball-style handheld microphone.   Save with this excellent Revisit™ reproduction at a fraction of the cost of the replacement Shure grille.
Part #MG-58
$9.95


Hard to Find Power Connections


Click on photo for
larger view
IEC POWER CONNECTOR, PEAVEY, NON-FUSED, PCB MOUNT
Used in the Peavey 6505+ 112 Combo (not 6505 or 6505+ heads), ValveKing series, including the ValveKing 112 and 212 combos, and the ValveKing Head amplifiers.  Also used in the XR684 and XR1600F Powered Mixers, and the Peavey S14 and S24 mixing consoles.  Original Peavey part number 70901428 and 30901428.   Datasheet here.

Part #30901428
$5.95


Click on photo for
larger view

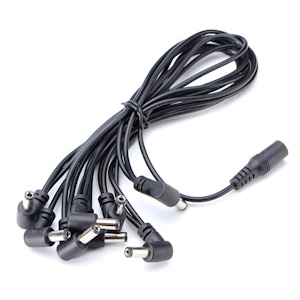

REVISIT PEDAL POWER DAISY CHAIN CABLE
Connect up to 10 Pedals with this Power Cable from a single power supply.  This daisy chain is the industry standard 2.1mm size. There are 1 in and 10 outs. It is well made, has right angle plugs and built with 22AWG wire.  Total length is 8 feet.  The amperage capacity of the power supply you use with this cable needs to be at least as large as the sum of all of the current requirements of your pedals.   For example, if each pedal requires 160mA (or 0.16 amps), the power supply needs to be capable of at least 10 x 0.16 = 1.6 amps (or 1600mA)

Part #DCC10X8
$11.95


Click on photo for
larger view

POWER CONNECTOR ADAPTER 2.1mm to 2.5mm
The two most common connectors for AC Adapters are 2.1mm x 5.5mm and 2.5mm x 5.5mm.    The outside diameter of these connectors are identical, but one uses a larger pin than the other, and therefore they are not compatible.   This adapter has a 2.1mm pin in the back, with a 2.5mm hole in the front, for cases where the pin in your pedal is just a tiny bit too large for the adapter.
Part #195-3591
$2.99


Click on photo for
larger view

POWER CONNECTOR Adapter 2.5mm to 2.1mm
The two most common connectors for AC Adapters are 2.1mm x 5.5mm and 2.5mm x 5.5mm.    The outside diameter of these connectors are identical, but one uses a larger pin than the other, and therefore they are not compatible.   This adapter has a 2.5mm pin in the back, with a 2.1mm hole in the front, for cases where the pin in your pedal is just a tiny bit too small for the adapter connector, and your power is intermittent when you move the adapter cable.
Part #195-3604
$2.99


Click on photo for
larger view
IEC POWER CONNECTOR, MARSHALL, NON-FUSED, PCB MOUNT
Used in the Marshall JCM2000 series.  Original Marshall part number SKTP-00034.   Datasheet here.

Part #SKTP-00034
$5.95


Click on photo for
larger view

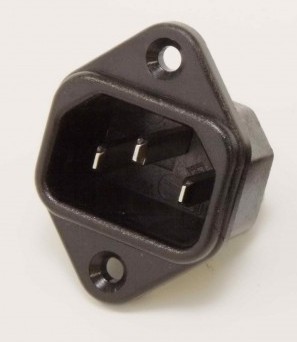

IEC POWER CONNECTOR, VERTICAL, DROP-IN REPLACEMENT FOR OLD BULGIN "PIGNOSE" CONNECTOR USED ON EARLY MARSHALL AMPS
This connector by Bulgin has the same mounting specs as the original Bulgin "Pig-Nose" AC connector on early Marshalls, including the JMP and JTM series.  Convert your early Marshall to use a convenient standard IEC power cord with this IEC connector with matching screw holes.   The original "Pig-Nose" connectors and compatible power cords are obsolete and extremely rare and expensive.   This connector works with our PC-300 and PC-600 power cords.   Note:   The mounting hole in the amp chassis needs to be 29mm (1-1/8") in diameter in order for the BCR-579 connector to fit.   This is the case on most JMP and JTM models, but a few have a slightly smaller hole and may require the hole to be enlarged.

Part #BCR-579
$6.50


Click on photo for
larger view
IEC POWER CONNECTOR, AMPEG, NON-FUSED, PCB MOUNT
Used in the Ampeg SVT-3-PRO, SVT-4-PRO, SVT-5-PRO, SVT-6-PRO, B2R, B4R, B5R bass amplifiers.  Original Ampeg part number 17-604-01.   Datasheet here.

Part #
17-604-01
$5.95


Click on photo for
larger view
15 AMP GROUNDED AC CONVENIENCE OUTLET WITH WIRES.
Leviton# 1374-001 or equiv. Black, three-conductor outlet. Snap-mounts in 1" square cutout. Rated 15 Amps @ 125Vac. Two 6" 14 AWG leads and one 6" 16 AWG ground lead. UL, CSA.  Used as a convenience outlet on the back panel of some amplifiers.
Part #ACS-31
$4.79


Hard to Find Fans


Click on photo for
larger view
OUTPUT MODULE FAN - Marshall™ MG SERIES AMPS - PREMIUM TYPE (BALL BEARINGS), HIGH AIRFLOW, LOWER NOISE
Fits many of the Marshall™ MG100DFX, MG100HDFX, MG50DFX and the MG250DFX models.  IMPORTANT NOTE:   Does NOT fit the MG50FX, MG100FX, or MG100HFX models - these are the models with the large "MG" on the front panel.  Check model number carefully.   Note:   Check size of the old fan.   If the old fan is 2" x 2" x 3/8", this is the correct fan.   Some Marshall™ versions of the MG100DFX, MG100HDFX, MG50DFX and the MG250DFX used a larger fan (2 3/8" x 2 3/8" x 1").   If your amp has the larger fan, order the OD6025-12, below.   12 volts DC, 1.10 Watts, 5000 RPM, 11.0 Cubic Feet/Minute Airflow, 26dBA Noise.   Comes with 12" tinned leads - cut off and splice connector from original fan.   Ratings:   Reliability:  A,  Airflow:  A,  Noise:   A-,  Price:   B-
Part #OD5010-12

Installation video for fan:



$23.95


Click on photo for
larger view
OUTPUT MODULE FAN - Marshall™ MG Series PREMIUM TYPE (BALL BEARINGS), HIGH AIRFLOW, LOW NOISE
Fits some versions of the Marshall™ MG100DFX, MG100HDFX, MG50DFX and the MG250DFX models.  IMPORTANT NOTE:   Does NOT fit the MG50FX, MG100FX, or MG100HFX models - these are the models with the large "MG" on the front panel.  Check model number carefully.   Note:   Check size of the old fan.   If the old fan is 2 3/8" x 2 3/8" x 1", this is the correct fan.   Some Marshall™ versions of the MG100DFX, MG100HDFX, MG50DFX and the MG250DFX used a smaller fan (2"  x 2" x 3/8").   If your amp has the smaller fan, order the OD5010-12, above.  12 volts DC, 1.70 Watts, 3500 RPM, 18.0 Cubic Feet/Minute Airflow, 27dBA Noise.    Comes with 12" tinned leads - cut off and splice connector from original fan.   Ratings:   Reliability:  A,  Airflow:  A,  Noise:   B,  Price:  B
Part #OD6025-12
$19.95


Click on photo for
larger view
ECONOMY OUTPUT MODULE FAN - Marshall™ AVT SERIES AMPS.  SEALED SLEEVE BEARINGS
Fits only the Marshall™ AVT50, AVT100, AVT150 and AVT275 models.  This is the newer style 1cm thick version, which replaces the older style 2cm thick type.  40mm x 40mm x 10mm.  24 volts DC, 1.4 Watts, 6000 RPM, 6 CF/M Airflow, 25dBA noise rating, sealed sleeve bearings.   Comes with tinned leads - cut off and splice connector from original fan.
Part #OD4010-24SS
$13.95


Click on photo for
larger view
QUIET PREMIUM OUTPUT MODULE FAN - Marshall™ AVT SERIES AMPS.  DUAL BALL BEARINGS  Fits only the Marshall™ AVT50, AVT100, AVT150 and AVT275 models.  This is the newer style 1cm thick version, which replaces the older style 2cm thick type.  40mm x 40mm x 10mm.  24 volts DC, 1.4 Watts, 4800 RPM, 6 CF/M Airflow, 20dBA noise rating, dual ball bearings.   Comes with tinned leads - cut off and splice connector from original fan.
Part #OD4010-24MB
$22.95


Click on photo for
larger view
TRACE ELLIOT FAN™ - 12V FAN FOR SM / SMX AMPS
Original Trace Elliot
replacement fan for SM and SMX series amps which use a 12V fan, such as the GP7SM250.   80mm x 80mm x 25mm (3-1/8" x 3-1/8" x 1"), 12 volts DC, 0.13 amps.
Part #D08T12LWS
$13.95


Click on photo for
larger view
ThermoCool Fan.  80 x 25mm Sleeve Bearing 19 CFM.
thermocool axial fans provide enhanced cooling for a variety of electronic devices. Leading air flow technology is designed into every thermocool product resulting in reduced turbulence, low noise levels and a more energy efficient product. Thermocool fans are ideal for use in computer systems, portable CD and DVD players, stereo components, overhead projectors, laptop computers, and many other electronic applications where circulation is a key concern.  For use on 100-125VAC System only, as found in North America, Japan, etc.
Specifications: • Power: 100-125V AC, 50-60 Hz • Sleeve bearing • Lead wire connection included • 0.13 amps • 2300 RPM • 27dB noise level • 19 CFM air flow • Dimensions: 80 mm (H) x 80 mm (W) x 25 mm (D)
[3 1/4" (H) x 3 1/4" (W) x 1" (D)]
Part #G8025HAS
$17.95


Click on photo for
larger view
ThermoCool Fan.  80 x 38mm Sleeve Bearing 23 CFM.
thermocool axial fans provide enhanced cooling for a variety of electronic devices. Leading air flow technology is designed into every thermocool product resulting in reduced turbulence, low noise levels and a more energy efficient product. Thermocool fans are ideal for use in computer systems, portable CD and DVD players, stereo components, overhead projectors, laptop computers, and many other electronic applications where circulation is a key concern.   This fan is the replacement for the fan used in the Ampeg SVT Classic, Ampeg™ part number 24-321-03.  For use on 100-125VAC System only, as found in North America, Japan, etc.
Specifications: • Power: 100-125V AC, 50-60 Hz • Sleeve bearing • Lead wire connection • 0.13 amps • 2400 RPM • 28dB noise level • 23 CFM air flow • Dimensions: 80 mm (H) x 80 mm (W) x 38 mm (D)
[3 1/4" (H) x 3 1/4" (W) x 1 1/2" (D)]
Part #G8038HAS
$21.95


Click on photo for
larger view
ThermoCool Fan.  120 x 25mm Sleeve Bearing 57 CFM.
thermocool axial fans provide enhanced cooling for a variety of electronic devices. Leading air flow technology is designed into every thermocool product resulting in reduced turbulence, low noise levels and a more energy efficient product. Thermocool fans are ideal for use in computer systems, portable CD and DVD players, stereo components, overhead projectors, laptop computers, and many other electronic applications where circulation is a key concern.   For plug in wiring harness, order 25-0050 fan cord separately.   For use on 100-125VAC System only, as found in North America, Japan, etc.
Specifications: • Power: 100-125V AC, 50-60 Hz • Sleeve bearing • Terminal connection • 0. 20 amps • 2300 RPM • 39dB noise level • 57CFM air flow • Dimensions: 120 mm (H) x 120 mm (W) x 25 mm (D).
[4 3/4" (H) x 4 3/4" (W) x 1 " (D)]
Part #G12025HAS
$24.95


Click on photo for
larger view
ThermoCool Fan.  120 x 38mm Ball Bearing 72 CFM.
This size is commonly found in Mesa-Boogie Mark series amps. thermocool axial fans provide enhanced cooling for a variety of electronic devices. Leading air flow technology is designed into every thermocool product resulting in reduced turbulence, low noise levels and a more energy efficient product. Thermocool fans are ideal for use in computer systems, portable CD and DVD players, stereo components, overhead projectors, laptop computers, and many other electronic applications where circulation is a key concern.   For plug in wiring harness, order 25-0050 fan cord separately.  For use on 100-125VAC System only, as found in North America, Japan, etc.   This size commonly found in Mesa-Boogie Mark series amps.
Specifications: • Power: 100-125V AC, 50-60 Hz • Ball bearing • Terminal connection • 0.22 amps • 2200 RPM • 39dB noise level • 72CFM air flow • Dimensions: 120 mm (H) x 120 mm (W) x 38 mm (D).  Ratings:   Reliability:  A,  Airflow:  A,  Noise:   A-,  Price:   B-
[4 3/4" (H) x 4 3/4" (W) x 1 1/2" (D)]
Part #G12038MAS
$26.95


Click on photo for
larger view
Standard 24" fan cord with 90° angled plug. For use with 110~120 VAC cooling fans with .110" terminals; non-terminated on opposite end.   Great for use with G12038MAS fans, above.
Part #25-0050
$3.59


Hard to Find Footswitches

FOOT SWITCH, MOMENTARY, SPST, NORMALLY OPEN
SPST footswitch,
soft touch pushbutton footswitch. Normally open. These are good for tap tempos, loopers (such as the Electro Harmonix 720 Stereo Looper) and anywhere you want the option for a constant or fast foot tap. They are also ok for hand use as they are not too hard to push with fingers.  Has 2 electrical terminals (single pole, single throw)Solder lugs for wire, normally open.
Part #FS-552
$4.95


Click on photo for
larger view

Fender™ RCA VIBRATO SHORTING PLUG by Revisit™ - GOLD-PLATED.   Did you know that on vintage Fender™ amps (Blackface, Silverface), the reverb will work without a footswitch plugged in, but the vibrato will not?   This handy-dandy little RCA shorting plug will fix that problem, if you do not own or prefer not to use a footswitch on your vintage 60s or 70s Fender™ amp.   This version is made of gold-plated brass for a low resistance connection and highest immunity to oxidation.  Just plug this little RCA plug gadget into the vibrato footswitch jack on the back panel, and your vibrato will come alive.    Turn the intensity knob to zero to cut out the vibrato when this plug is inserted.
Part #FSP-200

$2.50




Click on photo for
larger view
FOOT SWITCH, SPST, LATCHING, FOR SWITCHING AND EFFECTS - Fender™ TYPE.
Has 3 electricl terminals (single pole, single throw)Solder lugs for wire. Commonly found in newer Fender™ footswitch boxes, including the footswitch box for the Vibro-King Custom, 64 Vibroverb Custom, 68 Custom Deluxe Reverb, and 68 Custom Twin Reverb.  Fender™ part number 0024042000.
Part #FS-298
$3.95


Click on photo for
larger view
FOOT SWITCH, SPDT, LATCHING, FOR SWITCHING AND EFFECTS - Marshall™ TYPE.
Has 3 electrical terminals (single pole, double throw).   Solder lugs for wire. Commonly found in Marshall™ footswitch boxes, as well as other brands.  Marshall™ part number SWP802.
Part #FS-398
$4.50


Click on photo for
larger view
FOOT SWITCH, SPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Has 3 electrical terminals (single pole, double throw). Solder lugs for wire. This is a "soft click" momentary switch - not latching. Momentary switches do not latch - once the switch is released, the contacts revert to their normal state.     See drawing for switch open/closed arrangement.
Part #FS-398-M
$4.50


Click on photo for
larger view
FOOT SWITCH, SPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS - Marshall™ TYPE
Electrically equivalent and physically the same body size as the FS-398, but made for direct connection to a PC board.  Found in the some Marshall™ and Fender™ footswitch boxes with PC board design. Has 3 electrical terminals (single pole, double throw).
Part #FS-398-PC
$4.50


Click on photo for
larger view
FOOT SWITCH, ALPHA MINIATURE DPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Smaller body than the FS-498-PC, this switch is used in many stomp boxes.  The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  This is a "firm-click" switch - not a momentary.   Switch is marked "L" on the side (for "latching").  This switch is used in the Marshall AVT Stage Foot Controller PEDL-00039 used in conjunction with the AVT-150, AVT-150H, and AVT-275 models.   See this page for more information.  This is a shorter version than used in MXR™ pedals - will not fit MXR™!    Order the D-ECB554 for MXR™ pedals.
Part #FS-211-PC
$6.95


Click on photo for
larger view
FOOT SWITCH, ALPHA DPDT, LATCHING, SOLDER LUGS, FOR SWITCHING AND EFFECTS.
This switch is the same as the FS-211-PC, except it has solder lugs for wire attachment.   Made for effects boxes that do not have a PC board under the footswitch.  The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  This is a "firm-click" switch - not a momentary.   Switch is marked "L" on the side (for "latching").
Part #FS-211
$6.95


Click on photo for
larger view
PREMIUM FOOT SWITCH, TAIWAY 3PDT, LATCHING, SOLDER LUGS, FOR SWITCHING AND EFFECTS.   LOW PROFILE
Solder lugs for wire attachment, low profile, small body size for compact spaces.  Longer threaded bushing than the FS-311.  Softer "click" during switching than the FS-311 switch.  Manufactured by Taiway.  Made for effects boxes that do not have a PC board under the footswitch.  3PDT - perfect for true bypass plus an additional contact for LED switching.   Body size is 17mm L x 13.5mm W x 13mm H.   Data sheet here.  This is a latching switch - not a momentary.
Part #FS-311T
$8.95



Only 1 left in stock!


Click on photo for
larger view
FOOT SWITCH, ALPHA 3PDT, LATCHING, SOLDER LUGS, FOR SWITCHING AND EFFECTS.   LOW PROFILE
Solder lugs for wire attachment, low profile, small body size for compact spaces.   Made for effects boxes that do not have a PC board under the footswitch.  3PDT - perfect for true bypass plus an additional contact for LED switching.   Body size is 17mm L x 13.5mm W x 13mm H.  This is a "firm-click" switch - not a momentary.   Switch is marked "L" on the side (for "latching").
Part #FS-311
$6.95


Click on photo for
larger view
FOOT SWITCH, ALPHA DPDT, MOMENTARY, PC MOUNT, FOR SWITCHING AND EFFECTS.
This switch is the same as the FS-211-PC, except it is a slightly softer-click momentary (no firm click) for those pedals which require a momentary switch.  Switch is marked "M" on the side for momentary.  Momentary switches do not latch - once the switch is released, the contacts revert to their normal state.    Pins for PC board mounting.  The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  This switch is used in the Marshall AVT Stage Foot Controller PEDL-00039 used in conjunction with the AVT-150, AVT-150H, and AVT-275 models.   See this page for more information.  Note:   With momentary PC Mount switches, it is necessary to check the pins with a meter and determine the normally open and normally closed pins, comparing to the original switch and design before installing.  Otherwise, it is possible to install a momentary switch "backwards" (reversed 180 degrees) and the device will not work properly.

Part #FS-211-PC-M
$6.95


Click on photo for
larger view
FOOT SWITCH, ALPHA DPDT, MOMENTARY, SOLDER LUGS, FOR SWITCHING AND EFFECTS.
This switch is the same as the FS-211-PC-M, except it has solder lugs for wire attachment.  This switch is a slightly softer-click momentary (no firm click) for those pedals which require a momentary switch.  Switch is marked "M" on the side for momentary. Momentary switches do not latch - once the switch is released, the contacts revert to their normal state.      Made for effects boxes that do not have a PC board under the footswitch.  The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  Note:   With momentary switches, it is necessary to check the pins with a meter and determine the normally open and normally closed pins, comparing to the original switch and design before wiring.  Otherwise, it is possible to install a momentary switch "backwards" (reversed 180 degrees) and the device will not work properly.
Part #FS-211-M
$6.95


Click on photo for
larger view
FOOT SWITCH, SPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Important:
  This is one of two types of momentary 3-pin SPDT footswitches using the same footprint.   Click on the diagram to the left, compare the switching with your requirements.   The other switch is the FS-602-PC, with the opposite switching logic.  Customer is responsible for testing and selecting the switch with the correct switching logic - Studio Sound Electronics is not responsible if the wrong switch is selected.  Made for switching and effects units which require a momentary connection rather than a latching connection.  slightly softer-click momentary, PC terminals.  Has 3 terminals.

Part #FS-502-PC
$4.95


Click on photo for
larger view
FOOT SWITCH, SPDT, MOMENTARY, FOR SWITCHING AND EFFECTS.
Important:
  This is one of two types of momentary 3-pin SPDT footswitches using the same footprint.   Click on the diagram to the left, compare the switching with your requirements.   The other switch is the FS-502-PC, with the opposite switching logic.  Customer is responsible for testing and selecting the switch with the correct switching logic - Studio Sound Electronics is not responsible if the wrong switch is selected.  Made for switching and effects units which require a momentary connection rather than a latching connection.  slightly softer-click momentary, PC terminals.

Part #FS-602-PC
$4.95


Click on photo for
larger view
FOOT SWITCH, ALPHA MINIATURE DPDT, LATCHING, PC MOUNT, FOR SWITCHING AND EFFECTS.
Smaller body than the FS-498-PC, this switch is used in many Dunlop/MXR stomp boxes. Used in later revisions of the MXR Micro Amp, Carbon Copy, and others.   Also used in the later CSP101SL and M101 versions of the MXR Phase 90, MXR M107 Phase 100, MXR Dime Distortion, MXR Bass Octave Deluxe, MXR Custom Badass Modified O.D., MXR Custom Badass 78 Distortion, MXR Bass Distortion, MXR Bass Envelope Filter, MXR Bass Fuzz Deluxe, MXR Bass Compressor, MXR Fullbore Metal, MXR M117R Flanger, MXR Supercomp, MXR Microamp, MXR M134 Stereo Chorus, MXR M135 SmartGate, MXR M148 Micro Chorus, M169 Carbon Copy  .   Dunlop part number ECB554. The physical size of the pushbutton is the same as all of the other switches - only the rectangular body of the switch is smaller for more compact spaces.  This is a "firm-click" switch - not a momentary.   Switch is marked "L" on the side (for locking).  This switch is NOT the same as the FS-211-PC switch - the D-ECB-554 is an extended length switch for Dunlop™ / MXR pedals only.
Part #D-ECB-554
$14.95

FOOT SWITCH, REPLACEMENT FOR BOSS EFFECT PEDALS
Replacement for Boss effects pedals, SPST momentary, push switch. Mounts in square hole approximately .55" x .55" x 1.08" overall length including terminals.
Part #FS-511
$4.50


Click on photo for
 larger view
FOOTSWITCH, PC MOUNT, TACTILE TYPE
Common switch found in Line 6 floor pedals (such as the Pod XT Live, DL4), Digitech floor controllers (such as the Control ONE), Marshall JVM series foot controllers, older DOD pedals, and Marshall JVM series footswitch boxes.   12mm x 12mm (about 1/2" x 1/2" x 1/4" tall).  Line 6 part number 24-31-0100.
Part #FS-100
$1.95


Click on photo for
 larger view
TACT SWITCH, PC MOUNT
Fits the following:  Boss ME-5.  Casio CZ-1000, CZ-3000, CZ-5000.  Ibanez TS9 Tube Screamer.  Kawai K3, Korg DW Series, EX-8000, KPR-77, Poly-61.  Kurzweil K1000, K1200, K2000.  Roland Axis-1, FC-100, GR-700, JX-8P, PG-800, TB-303, TR-606.  Yamaha DX7, DX9, KX88.  Oberheim Matrix 6/6R/1000.  Sequential Circuits Multi-Trak.   Boss part # 13129715.  Korg # 37505000.  Roland # 13129715.  Yamaha # KA905510.  12mm x 12mm (about 1/2" x 1/2").   Height of switch from under the base to the top of the plunger is about 7mm.   Data Sheet here.
Part #FS-621
$0.99


Click on photo for
larger view
TACT SWITCH, 6mm X 6mm.  1mm PLUNGER HEIGHT
6mm x 6mm square (1/4" x 1/4").  Body of switch is 3.0mm tall (without plunger).    Plunger extends 1.0mm above top of switch (about the thickness of a credit card).   Used in effects pedals, front panel controls, etc.  4 legs (2 of them are redundant on each side, so the switch is SPST, normally open, momentary).     For through-the-hole mounting on PC boards.
Part #TS-5126
$0.99


Click on photo for
larger view
TACT SWITCH, 6mm X 6mm.  1.5mm PLUNGER HEIGHT
6mm x 6mm square (1/4" x 1/4").  Body of switch is 3.0mm tall (without plunger).    Plunger extends 1.5mm above top of switch.   Used in effects pedals, front panel controls, etc.  4 legs (2 of them are redundant on each side, so the switch is SPST, normally open, momentary.    For through-the-hole mounting on PC boards.   Fits the Line 6 Alchemist, Bass POD XT Live, FBV Shortboard MKII, Floor POD Plus, M9, M13, POD HD300, POD HD400, POD HD500, POD X3 Live, POD XT Live, Spider Valve HD100, Spider Jam, Spider IV SERIES, Spider IV1508, HD500X.    Line 6 part number 24-31-1105
Part #TS-5127
$0.99


Click on photo for
larger view
TACT SWITCH, 6mm X 6mm.  1.5mm PLUNGER HEIGHT, 2 LEGS
6mm x 6mm square (1/4" x 1/4").  Body of switch is 3.0mm tall (without plunger).    Plunger extends 1.5mm above top of switch.   Used in effects pedals, front panel controls, etc, including some Boss
and Zoom products.  2 legs, SPST, normally open, momentary.     For through-the-hole mounting on PC boards.
Part #TS-5144
$0.99


Click on photo for
larger view
TACT SWITCH, 6mm X 6mm.  6mm PLUNGER HEIGHT, 2 LEGS
6mm x 6mm square (1/4" x 1/4").  Body of switch is 3.0mm tall (without plunger).    Plunger extends 6.0mm above top of switch.   Used in effects pedals, front panel controls, etc, including some Boss
™ products.  2 legs, SPST, normally open, momentary.     For through-the-hole mounting on PC boards.
Part #TS-5146
$0.99


Click on photo for
larger view

PREMIUM Fender™ STYLE FOOTSWITCH - BLACK
This is the highest quality reproduction of the iconic Fender Style 2-Button Footswitch on the market. Our Premium 2-button Footswitches are hand-wired by our custom shop and contain USA-sourced wire as well as Carling 110-P Footswitch components.  These are the same spec SPST footswitch components used in the original Fender 2-Button Footswitches.  The result is a robust housing with comfortable action and the most reliable functionality on the market.

The Premium Fender Style Vintage Black 2-Button Footswitch connects to the amplifier via RCA plugs. Cable enters rear of pedal.
Replaces Fender™ part # 0994051000
Part #FBS-322
$59.99






Click on photo for
larger view

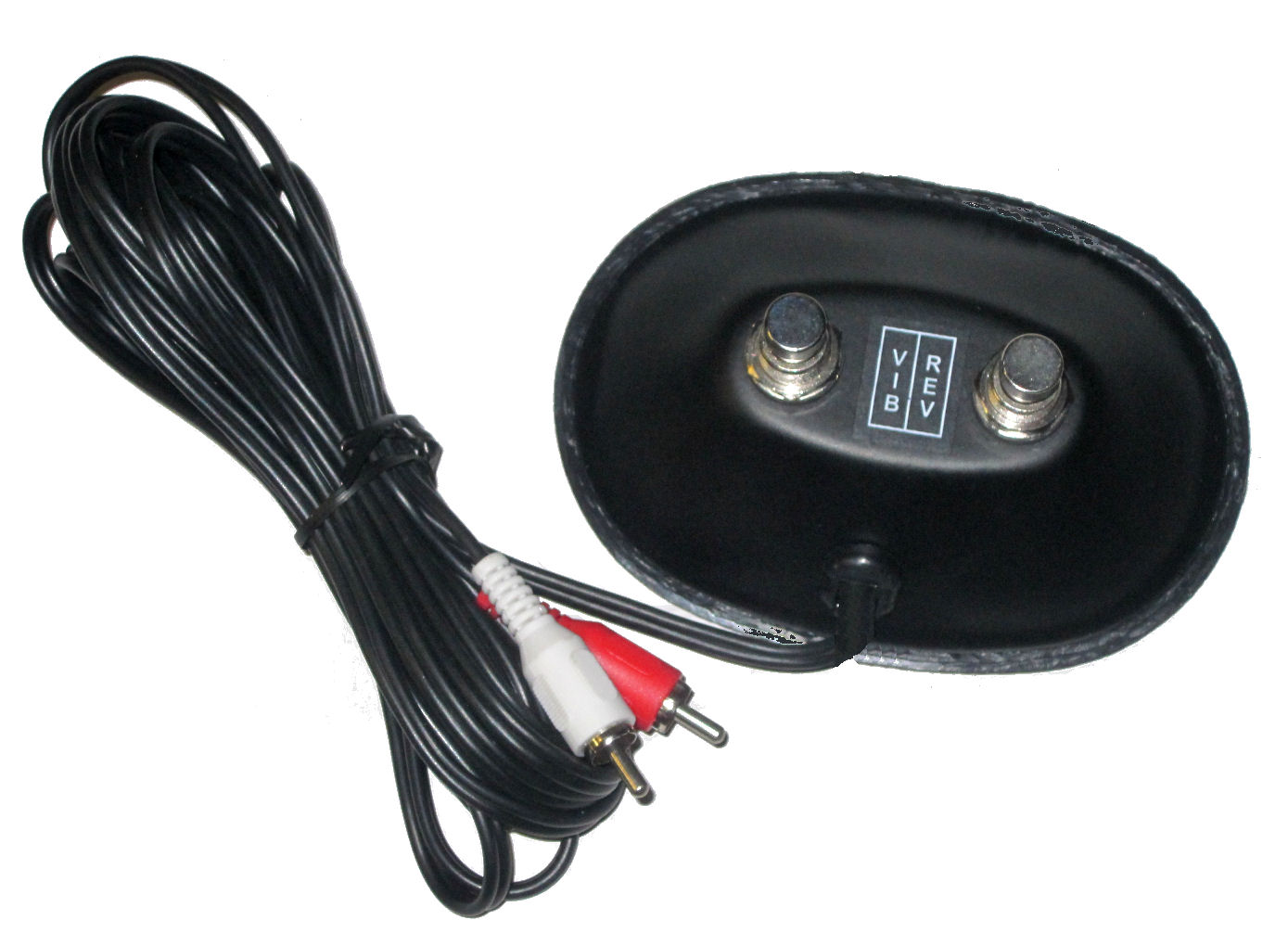

MUSIC MAN STYLE FOOTSWITCH - BLACK
Revisit™ aftermarket replacement for the original Music Man two-button footswitch found on original Music Man amplifiers.  Labeled for vibrato and reverb, but may be used on other models for phaser / reverb, distortion, etc.  Sturdy black metal construction.    Dual RCA Plugs, 12 ft cable.    Music Man amps require special grounding of the footswitch case to prevent hum in the reverb circuit, and this switch employs that additional grounding.
Part #FBS-251
$33.95


Hard to Find Fuses & Fuse Holders


Click on photo for
larger view
FUSE HOLDER, ORIGINAL Fender,  FITS MOST LATER MODEL FENDER AMPS    Fits full-size fuse. Chassis mount type with push-on tab connectors.  For standard full size 1.25" X .25" fuses. Fits through a .50" hole in the chassis. As used on the Fender 60s Super Reverb reissue and many other Fender, SWR and other amps. Brand New. Genuine Fender 0036702049. UPC 717669612139. Used on 65 Twin, Hot Rod Deluxe™, Hot Rod DeVille™, Blues Deluxe™, Blues DeVille™, Prosonic™, Vibrosonic, Pro Reverb™, Showman™ 50, 59 Bassman™, Tone Master™, Vibro-King, 63 Fender Tube Reverb and Dual Professional amplifiers Also fits 94 Twin, 65 Super Reverb™, Pro Tube Twin, 64 Vibroverb™, 57 Twin, Super-Sonic™ series, Princeton Recording Amp, Band-Master™ VM Head, Deluxe™ VM, Super Bassman and Super Champ™ XD/X2 amplifiers.
Part #FH-367
$8.95


Click on photo for
larger view
FUSE HOLDER, ORIGINAL MESA/BOOGIE, FOR AGC, MDL OR 3AG TYPE FUSE
Fuse holder, Twist-lock cap.   Used on current model Mesa/Boogie amps built for domestic distribution in the USA or Canada.   Original Mesa/Boogie part number 790347.   Fits "American" style AGC, MDL or 3AG fuses (1/4" x 1 1/4")  Connection by 3/16" push-on terminals, or wires may be soldered to the terminals.
Part #FH-347
$6.95


Click on photo for
larger view

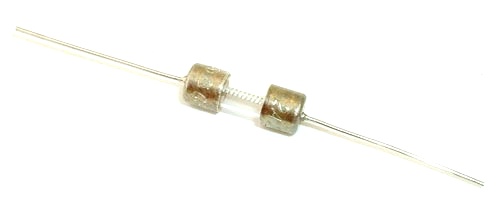

2AG Pigtail fuses are subminiature 5mm diameter x 15mm long, with axial leads for soldering.  Measure your old fuse.   These pigtail fuses are designed to be soldered to a circuit board.  In English dimensions, they are about 3/16 inches x 9/16 inches.   1 amp slow-blow.   These fuses are commonly found on circuit boards in some Peavey equipment.
Part #2AG-P-1A
$1.69
(each)


Click on photo for
larger view
ORIGINAL REPLACEMENT CAP FOR FH-815 FUSE HOLDERS - Marshall™
Cap for the "HT" fuse holder only in the JCM2000 series (TSL100, TSL122, DSL100, DSL50)
.  The Mains fuse holder in the TSL and DSL models uses the FH-816 cap (below).
Part #FH-204
$3.95


Click on photo for
larger view
ORIGINAL REPLACEMENT CAP FOR FH-810 FUSE HOLDER - Marshall™
Cap for the "Mains" fuse holder found on the Marshall™ JCM2000 series (TSL100, TSL122, DSL100, DSL50)
.  The HT fuse holder in the TSL and DSL models uses the FH-204 cap (above).  Common failure item in Marshall™.   Designed to work with AGC type fuses (1/4" x 1 1/4")  If you would like to switch your TSL or DSL Mains Fuse to a GMA fuse (5mm x 20mm), order the FH-815 fuse cap below.
Part #FH-816
$4.39


Click on photo for
larger view
ORIGINAL REPLACEMENT FUSE CAP KIT  Marshall™ TSL100, TSL122, DSL100, DSL50
This kit contains the large fuse cap for the "Mains" fuse holder and the small fuse cap for the HT fuse holder found on the Marshall™ TSL100, TSL122, DSL100, DSL50.

Part #FH-416
$7.95
(for a set of two fuse caps)



Click on photo for
larger view
ALTERNATE CAP FOR FH-810 FUSE HOLDER - Marshall™ - FOR GMA STYLE FUSE
Cap for the "Mains" fuse holder found on the Marshall™ JCM2000 series (TSL100, TSL122, DSL100, etc).  NOTE:   This cap is NOT the original cap - this cap will change the type of fuse used in in the Mains fuse holder from the original AGC type to the GMA type (GMA is the same physical size (5mm x 20mm) as used in the HT fuse holder).
Part #FH-815
$3.95


Click on photo for
larger view
ORIGINAL REPLACEMENT FUSE HOLDER  - Marshall™
Replacement for mains and HT fuse holders found on the Marshall™ JCM900 series.   Replacement fuse holder for the HT fuse only in the larger TSL and DSL models in the JCM2000 series (TSL100, TSL122, DSL100, DSL50).   Includes the FH-204 cap (above).  Common failure item in Marshall™.   Designed to work with GMA type fuses (5mm x 20mm)
Part #FH-830
$8.50


Click on photo for
larger view
ORIGINAL REPLACEMENT FUSE HOLDER  - Marshall™
Replacement fuse holder for the Mains fuse only in the JCM2000 TSL and DSL models (TSL100, TSL122, DSL100, DSL50).  Includes the FH-816 cap (above).  Common failure item in Marshall™.   Not for the JCM900 series - JCM900 series amps use the FH-830 as both the mains and HT fuse holders.   Designed to work with AGC type fuses (1/4" x 1 1/4").   May be converted to GMA fuses with the FH-815 cap.
Part #FH-810
$9.95


Click on photo for
larger view
FUSE HOLDER -  Peavey™, Fender™, many other brands - AGC, 3AG or MDL (1/4 inch x 1 1/4 inch) TYPE FUSE
Fuse holder found in many styles of guitar amplifiers, power amps and effects units.  For example, this fuse holder is used in the Peavey Valve King series.  PC Board mounted.   Uses AGC type 1/4" x 1 1/4" fuse.  Fuse cap is removed and inserted with flat screwdriver.
Part #FH-2709
$11.95


Click on photo for
larger view
FUSE HOLDER -  PC Board mounted - GMA or GDC TYPE FUSE (5mm x 20mm)
Fuse holder found in many styles of guitar amplifiers, power amps and effects units.  PC Board mounted.   Uses GMA or GDC type mini fuses 5mm x 20mm.   Fuse cap is removed and inserted with flat screwdriver.

Part #FH-862
$7.99


Click on photo for
larger view
FUSE HOLDER -  Egnater™, Orange™, Trace Elliot™, Blackstar™, other brands - GMA OR GDC TYPE FUSE (5mm X 20mm)

Fuse holder found in many models of  Egnater™, Orange™, Blackstar™, and Trace Elliot™ amplifiers.   Designed for the 5mm x 20mm mini glass fuse (GMA or GDC type).  PC Board mounted.

Part #PTF-50
$3.95


Click on photo for
larger view
FUSE HOLDER, HIGH QUALITY, USED ON VINTAGE Marshall™ AMPS
Marshall™ style fuse holder. Threaded mount for chassis hole diameters between 5/8" and 11/16".   Flush design, fuse cap removed with screwdriver.  Used on Marshalls from the 60s, 70s and 80s, including the
JCM 800. This low profile fuse holder will make an excellent replacement for your original amplifier that is in need of repair or restoration. Easy to install and ready to serve you for years!  Fits 5mm X 20mm (GDC, GMA) size fuses.
Part #FH-421
$6.50


Click on photo for
larger view
FUSE CLIP -  Peavey™, Fender™,  many other brands - GMA OR GDC TYPE FUSE (5mm x 20mm)
Fuse clips found in many styles of guitar amplifiers, power amps and effects units.  PC board mounted.   ONLY for the smaller European style 5mm x 20mm fuse (3/16" x 3/4" fuse).  Sold in pairs.
Part #FC-520
$0.59
(for a set of 2 fuse clips)


Hard to Find Handles




Click on photo for
larger view
Orange™ AMP or Markbass™ BLACK GUITAR AMP HANDLE Black rubber handle strap, metal reinforced.  Black rubber caps.   Screws not included - recommend using the SC-403B black 10-32 type screws along with a 10-32 T-Nut for secure mounting.   See diagram for handle dimensions and center-center screw distance.    Fits most Orange Amplifiers.


Part #OAH-456

$7.99

"SHORTY" AMP HANDLE



Click on photo for
larger view
Revisit™  "SHORTY" AMP HANDLE, VINTAGE LEATHER-LOOK STYLE, BLACK WITH BLACK STITCHING
Similar to the AH-281 handle, but 1-3/4 inches shorter.  Handle length is 6-13/16 inches (6.80"), center-to-center mounting distance is 6 inches (5.98")   Black with black stitching, nickel mounts.    Mounting screws not included - use SC-402 or SC-403-4  screw pack.   This is a great handle to consider for smaller combo amps, practice amps, etc.   Delivers a professional quality look and reliability in a smaller size for smaller amps.  More details
Part #AH-281-S  "Shorty"
$11.95



Click on photo for
larger view
Revisit™ BLACK GUITAR AMP HANDLE, WITH HARDWARE Rugged rubber black handle strap, steel reinforced.  Black metal caps.   Black 10-32 screws and  T-Nut mounting hardware are included.  Handle strap is 7/8" wide.   Designed for screw holes set 8 1/4 to 8 3/8 inches apart.   Total length of handle when properly mounted is 10 1/4".  Great replacement for the Budda Superdrive 30 (Series 1 only, pre-Peavey).
Part #GAH-271B
$11.99



Click on photo for
larger view
Revisit™ NICKEL/BLACK GUITAR AMP HANDLE - NICKEL, WITH HARDWARE.  Rugged rubber black handle strap, steel reinforced.  Polished nickel metal caps.   10-32 screws and  T-Nut mounting hardware are included. Handle strap is 7/8" wide.   Designed for screw holes set 8 1/4 inches apart.   Total length of handle when properly mounted is 10 1/4".  Not recommended for Fender, as the screws are set too far apart for Fender™ amp specifications.
Part #GAH-271C
$10.99



Click on photos for
larger view


(Assembled)
Marshall™ AFTERMARKET HANDLE
Identical to the Genuine Marshall™ Handle MAH-294 (above), except does not have the "Marshall" name imprinted on the end caps.   Save compared to the price of the original Marshall™ handle.  For modern heads and combo amps.   Used primarily on JCM900, JCM2000, larger ValveState, and JVM series amps.  Replaces Original Marshall™ part number M-PACK-00031 or stock number MAH-294.    Kit contains:
  • (2) Countersunk screws - M5 x 0.8, overall length of 25 mm
  • (2) Mounting brackets
  • (2) Black bracket covers (no Marshall™ logo)
  • (1) Rubber handle with metallic insert
  • Center-to-center screw mounting distance is 8 3/8" (213mm).
  • Overall length of assembled and mounted handle is 101/4" (260mm).
  • Replacement screws are the Marshall™ SC-404 screws, below

Part #RAH-294

$10.99


Click on photo for
larger view

Marshall™ METRIC HANDLE SCREWS
Pack of 2 metric handle screws for Marshall™   MAH-294 handle.   Original Marshall™ , designed to work with the OEM metric T-Nuts.   Set of 2 Flat-head counter-sunk Phillips,  M5 x 0.8, length 25 mm.   Found primarily on JCM900, JCM2000, larger Valvestate, and JVM series amps.
Part #SC-404
$1.99
(for a pack of 2 Marshall™ metric screws)



Hard to Find Hardware


Click on photo for
larger view
Mesa/Boogie™ Nickel Chassis Strap - Large (6"), bright nickel finish. Single chassis strap, no screws. Screw spacing is 5.31 inches center-to-center, strap length is 6 inches end-to-end.  Original Mesa/Boogie part number 407520.   Sold individually - ordering quantity of 1 delivers 1 strap.
Part #MBCS-6
$8.50

(Sold individually - One chassis strap, screws NOT included)




Click on photo for
larger view
Mesa/Boogie Stainless Steel Screw - 4 inches long, 10-24 thread.   Used with the MBCS-6 chassis straps.   Original Mesa/Boogie part number 302190.  Sold individually - ordering quantity of 1 delivers 1 screw.    Each amplifier requires a total of 4 screws.
Part #MBCB
$1.39

(Sold individually - Each amp uses 4 screws)




Fender™ TILT-BACK LEG SCREWS AND CAPTIVE NUTS
Pack of 2 stainless steel tilt-back leg screws, 1-1/2 inches long, along with hex nuts with special nylon inserts.   Used on tilt-back legs of larger Fender combo amps and speaker cabinets.   Replaces Fender part numbers 021998 and 022277.
Part #SCW-403T-2
$1.79
(for a pack of 2 screws and
2 nuts)



Click on photo for
larger view
Fender PRE-AMP TUBE STABILIZER.
Replacement high-temperature foam tube stabilizer for Fender
Hot Rod Deluxe and Hot Rod Deville amps. This foam block slides over the first two preamp tubes. This genuine Fender replacement is made in the USA.
Part #ST-718
$14.95


Click on photo for
larger view
REPLACEMENT HOUSING 3/8" SCREWS FOR MXR™ PEDALS (VINTAGE VERSION)
Set of 4 housing screws for MXR, Way Huge and other pedals which use 6-32 x 3/8" screws, including pedals which use Bud or Hammond style enclosures.

Early MXR pedals (1972-1987) require a 3/8" screw to attach the bottom cover.    The D-ECB-590 screw is too long for the vintage MXR pdeals.

Part #D-ECB-589

$0.59
(for a set of 4 screws)


Click on photo for
larger view
Peavey™ Stainless Steel Screw - 4 inches long, 10-24 thread.  Used on a variety of vintage Peavey amps which had chassis straps on top of the amp cabinet. Sold individually - ordering quantity of 1 delivers 1 screw.    Each amplifier requires a total of 4 screws.
Part #PBCB
$1.39

(Sold individually - Each amp uses 4 screws)




Click on photo for
larger view
Marshall™ SPECIAL CORNERS, FRONT OF SLANTED SPEAKER CABINETS
Front corner set, 3/4" radius. Includes 12 gold rivets for attaching to cabinet.   Two top angled corners for the left and right top corners of angled speaker cabinets, and two straight corners for the bottom front corners.  For slanted speaker cabinets ONLY, such as the 1960A, MG412AG, MX412A
Part #MC-1092
$16.95
(For a set of 4 corners with 12 rivets)



Click on photo for
larger view
MARSHALL™ SPRUNG FOOT FOR HEADS.  Genuine Marshall Sprung foot. Sold individually.  Screws are included  3 1/4" Long, 2" Wide, 1" Tall.   2-5/16" Mounting Centers.
Part #MSF-252
$8.95
(each)


Click on photo for
larger view
MARSHALL™ ANTI-SKID TRAY FOR 1960A ANGLED CABINETS.  Genuine Marshall Anti-Skid Tray. Sold individually.   For the Marshall™ 1960A slant cabinets. Gold rivets are included.  9-7/8" Long, 3" Wide, 1/8" Thick.  With Marshall logo.
Part #AST-1960
$18.65
(each)


Click on photo for
larger view
MARSHALL™ CASTER CUPS FOR 1960B STRAIGHT CABINETS - SET OF 4.  Genuine Marshall Caster Cups. Complete set of 4 for one cabinet.  Package of 4 includes 16 gold rivets.  For the Marshall™ 1960B straight cabinets.  3.9" Long, 2.07" Wide.
Part #MCC-1960
$18.95
(Set of 4)


Click on photo for
larger view

Fender™ STAINLESS STEEL BACK-PANEL SCREWS
Pack of 6 stainless steel back panel screws suitable for Fender™ reissue "Tweed" series amps. Fits the Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, Blues Junior and Blues Deville, and 59 Bassman reissue.   3/4" long, 10-32 thread.    Fender™ Original Part number 0015990049.   Pack of 6 screws.   Made of stainless steel, for longer life and no worries about rust or oxidation. These screws are not nickel-plated.
Part #FBP-6
$2.99
(for a pack of 6 screws)


Click on photo for
larger view

Fender™ STYLE STAINLESS STEEL CHASSIS MOUNTING SCREWS
Pack of 6 stainless steel chassis mounting screws suitable for Fender™ reissue "Tweed" series amps.   Mounts the chassis to the cabinet on top as well as the sides of the cabinet.  Fits the Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, Blues Junior, Pro Junior, and Blues Deville, 59 Bassman reissue. 1 1/2" long, 10-32 thread.    Replacement for  Fender™ Part number 0036619049.   Pack of 6 screws.   Made of stainless steel, for longer life and no worries about rust or oxidation. Note:  These screws are not nickel-plated.   For original Fender screws, see the FGCM-6 set.
Part #FCM-6
$2.99
(for a pack of 6 screws)


Click on photo for
larger view

Genuine Fender™ NICKEL-PLATED STEEL CHASSIS MOUNTING SCREWS
Pack of 6 nickel-plated steel chassis mounting screws suitable for Fender™ reissue "Tweed" series amps.   Mounts the chassis to the cabinet on top as well as the sides of the cabinet.  Fits the Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, Blues Junior, Pro Junior, and Blues Deville, 59 Bassman reissue. 1 1/2" long, 10-32 thread.   Pack of 6 screws.   10-32 X 1-1/2 TH PHS Nickel-Plated Screws.   Genuine Fender™ Original Part number 0036619049.
Part #FGCM-6
$5.95
(for a pack of 6 screws)


Click on photo for
larger view

Fender™ STAINLESS STEEL CHASSIS MOUNTING SCREWS WITH KEPS NUTS
Pack of 6 stainless steel chassis mounting screws and matching KEPS nuts suitable for Fender™ original "Tweed" series amps.   Mounts the chassis to the cabinet on top as well as the sides of the cabinet.  Fits the Fender™ original Tweed amps from the 1950s:   Tweed Vibrolux, Tweed Twin, Tweed Tremolux, Tweed Super, Tweed Pro, Tweed Princeton, Tweed Harvard, Tweed Deluxe, Tweed Champ, and Tweed Bassman.   1 1/2" long, 10-32 thread.  Fender™ Original Part number 0992095000.  Pack of 6 screws with 6 nuts.   Screws made of stainless steel, for longer life and no worries about rust or oxidation. These screws are not nickel-plated.
Part #FVCM-6
$3.99
(for a pack of 6 screws and 6 nuts)



Click on photo for
larger view
BACK PANEL STAINLESS STEEL SCREWS (SET OF 4) FOR OPEN BACK CABINETS (such as Fender™ Blonde, Brown, Blackface and Silverface Series).     Set of 4 screws, stainless steel, 1 1/4 inches long, Phillips, oval head.  This set of four screws fits either the top or bottom rear panels on Fender™ combo amps from the 60s and 70s, and today`s reissues of those BF and SF amps.   Use with either the CW-401 or CW-501 cup washers.
Part #SC-401-4
$0.99
(for a pack of 4 screws)




Click on photo for
larger view
BACK PANEL STAINLESS STEEL SCREWS (SET OF 8) FOR OPEN BACK CABINETS (such as Fender™ Blonde, Brown, Blackface and Silverface Series).     Set of 8 screws, stainless steel, 1 1/4 inches long, Phillips, oval head.   This set of eight screws fits both the top and bottom rear panels on Fender™ combo amps from the 60s and 70s, and today`s reissues of those BF and SF amps.  Set of 8 completely replaces all of the screws on the two back panels.  Use with either the CW-401 or CW-501 cup washers.
Part #SC-401-8
$1.79
(for a pack of 8 screws)




Click on photo for
larger view
SATIN BLACK BACK PANEL STAINLESS STEEL SCREWS (SET OF 4)  FOR OPEN BACK CABINETS (such as Fender™ Blonde, Brown, Blackface and Silverface Series).     Set of 4 screws, satin black stainless steel, 1 1/4 inches long, Phillips, oval head.  This set of four screws fits either the top or bottom rear panels on Fender™ combo amps from the 60s and 70s, and todays reissues of those BF and SF May be used with the BCW-10 cup washers.   See data sheet
Part #SC-405-4
$0.99
(for a pack of 4 screws)




Click on photo for
larger view
SATIN BLACK BACK PANEL STAINLESS STEEL SCREWS (SET OF 8) FOR OPEN BACK CABINETS (such as Fender™ Blonde, Brown, Blackface and Silverface Series).     Set of 8 screws, satin black stainless steel, 1 1/4 inches long, Phillips, oval head.   This set of eight screws fits both the top and bottom rear panels on Fender™ combo amps from the 60s and 70s, and today`s reissues of those BF and SF amps.  Set of 8 completely replaces all of the screws on the two back panels.  May be used with the BCW-10 cup washers.  See data sheet
Part #SC-405-8
$1.89
(for a pack of 8 screws)



Click on photo for
larger view
CUP WASHER, BLACK METAL, PACK OF 10.  Used with #8 Black screws, on amps and speaker cabinets.
Part #BCW-10
$1.69
(pack of 10)




Click on photo for
larger view
SPEAKER BAFFLE MOUNTING STAINLESS STEEL SCREWS AND WASHERS (SET OF 6) FOR Fender™ Blackface and Silverface Series.    Set of 6 screws with oval Philips heads, stainless steel #8, 1 3/4 inches long, and matching set of 6 stainless steel cup washers.   This set of six screws w/washers fastens the speaker baffle board to the cabinet on Fender™ blonde, brownface, blackface and silverface combo amps from the 60s and 70s, and today`s reissues of those BF and SF amps.   Replaces Fender part number 011678.
Part #SC-407-6
$2.29
(for a pack of 6 screws and washers)




Click on photo for
larger view
Fender™ GRILLE SCREWS (SET OF 4) FOR BROWN, BLONDE, BLACKFACE AND SILVERFACE HEADS.  Set of 4 screws, Stainless Steel, 1 3/4" long, Phillips, oval head, with matching cup washers. Fits all Fender™ vintage heads such as Bassman, Bandmaster, Showman, Dual Showman, Tremolux,etc and holds the grille to the front of the cabinet.
Part #FGS-4
$1.49
(for a pack of 4 screws and 4 washers)




Click on photo for
larger view
SPEAKER BAFFLE MOUNTING COPPER SCREWS AND STAINLESS STEEL KEPS NUTS (SET OF 4) FOR Fender™ TWEED AMPS.   Set of 4 screws, copper 6-32, 1 1/2 inches long, Phillips and matching 6-32 Keps Nuts with integral washers.   This set of four copper screws connects the speaker baffle board to the cabinet on Fender™ tweed combo amps from the 50s, as well as recent reissue tweed amps such as the Hot Rod Deluxe and 59 Bassman Reissue.    Replaces Fender part number 036618 or 0036618049.   For amps which require additional baffle screws, see the individual screw/nut part number SC-415, below.
Part #SC-415-4
$3.99
(for a pack of 4 screws and 4 nuts)



Click on photo for
larger view
SPEAKER BAFFLE MOUNTING COPPER SCREW AND STAINLESS STEEL KEPS NUT FOR Fender™ TWEED AMPS.  Individual screw, copper 6-32, 1 1/2 inches long, Phillips and matching 6-32 Keps Nut with integral washer.   These screws connect the speaker baffle board to the cabinet on Fender™ tweed combo amps from the 50s, as well as recent reissue tweed amps such as the Hot Rod Deluxe and 59 Bassman Reissue.    Replaces Fender part number 036618 or 0036618049.
Part #SC-415
$1.09
(for a single screw with nut)


Set of 4 screws shown.  Set of 5 screws also available.

Click on photo for
larger view

SPEAKER BAFFLE MOUNTING STAINLESS STEEL SCREWS AND STAINLESS STEEL KEPS NUTS (SETS OF 4 OR 5) FOR Fender™ BLUES DELUXE, BLUES DEVILLE, BLUES JUNIOR III, HOT ROD DELUXE OR HOT ROD DEVILLE AMPS WITH BLACK TOLEX.   Sets of either 4 or 5 screws, stainless steel 6-32, 1 1/2 inches long, flat stainless washers, Phillips and matching 6-32 Keps Nuts with integral washers.   This set of four nickel style screws connects the speaker baffle board to the cabinet on Fender™ amps.   Blues Junior III needs the 4-screw set, other larger amps with black tolex need the 5-screw set.   Replaces Fender part number 050858 or 0050858000.   For amps covered in Tweed Tolex, see the SC-415 screws.
Part #SC-414-X
4-screw set:
$2.79

5-screw set:
$3.29
Select Option:


Quantity:


Click on photo for
larger view

Fender™ EXTRA LONG VINTAGE HANDLE SCREWS
Pack of 2 stainless steel extra long handle screws for Fender™ style FAH-332, FAH-261 handle.   Used for vintage Fender™ style strap handles used on speaker cabinets, such as Bandmaster, Bassman, Showman, and Blonde or Blackface Tremolux.  1-1/4" Long, 10-32 threads.   Designed to work with a 10-32 T-Nut, in cabinet wood of 1-1/8" or less.    Will not work with external nut - must be a T-Nut.   Will not work with cabinet wood thicker than 1-1/8".  See Data Sheet here
Part #SC-403A
$0.99
(for a pack of 2 screws)




Click on photo for
larger view
#8 BACK PANEL STAINLESS STEEL SCREWS (SET OF 8) FOR OPEN BACK CABINETS.  Set of 8 screws, Stainless Steel, #8, 1 1/4" long, Phillips, oval head.   Used with  the CW-400 cup washers.    These screws are larger in diameter than the typical Fender back panel screws, but fit a number of other combo amps with open-back cabinets.
Part #
SC-2265-8
$1.59
(for a pack of 8 screws)




Click on photo for
larger view
BACK PANEL STAINLESS STEEL SCREWS (SET OF 8) FOR CLOSED BACK CABINETS (SUCH AS Marshall™, Fender™ Bassman, Bandmaster, etc ).  Set of 8 screws, Stainless Steel, 1 3/4" long, Phillips, oval head.   Use with the CW-400-8 cup washers.
Part #
SC-400-8
$1.99
(for a pack of 8 screws)




Click on photo for
larger view
BACK PANEL STAINLESS STEEL SCREWS (SET OF 17) FOR CLOSED BACK CABINETS (SUCH AS Marshall™).  Set of 17 screws, Stainless Steel, 1 3/4" long, Phillips, oval head.   Use with the CW-400-17 cup washers.   A set of 17 screws completely replaces all of the screws on most Marshall™ 4x12 cabinets, including the 1960 models.
Part #
SC-400-17
$3.89
(for a pack of 17 screws)




Click on photo for
larger view
BACK PANEL STAINLESS STEEL SCREWS (SET OF 28) FOR CLOSED BACK CABINETS (SUCH AS Fender™ BASSMAN 2x12, BANDMASTER 2x12, etc).  Set of 28 #8 screws, Stainless Steel, 1 3/4" long, Phillips, oval head.   Use with  the CW-400-28 cup washers.   A set of 28 screws completely replaces all of the screws on most vintage Bassman™ 2x12 and Bandmaster™ 2x12 cabinets
Part #
SC-400-28
$5.69
(for a pack of 28 screws)




Click on photo for
larger view
BACK PANEL STAINLESS STEEL SCREWS (SET OF 28) FOR CLOSED BACK CABINETS (SUCH AS Fender™ BASSMAN 2x15).  Set of 36 #8 screws, Stainless Steel, 1 3/4" long, Phillips, oval head.   Use with  the CW-400-36 cup washers.   A set of 36 screws completely replaces all of the screws on most vintage Bassman™ 2x15 cabinets.
Part #
SC-400-36
$6.99
(for a pack of 36 screws)



Click on photo for
larger view
CUP WASHER, STAINLESS STEEL, LARGE, SET OF 17.  OD 1/2", ID 3/16"  Typically found on larger combo amp cabinets and 4x12 cabinets, such as Marshall™ .   Set of 17 washers.  Some of the larger Marshall 4x12 cabinets, such as certain model 1960 cabinets, have 17 screws and washers in the back panel.
Part #CW-400-17
$3.79
(for a set of 17 washers)



Click on photo for
larger view
CUP WASHER, STAINLESS STEEL, LARGE, SET OF 28.  OD 1/2", ID 3/16"  Complete set of 28 stainless steel cup washers for the vintage Fender Bassman 2x12 and Bandmaster 2x12 cabinets.    Set of 28 washers.  Use with the SC-400-28 set of screws.
Part #CW-400-28
$5.59
(for a set of 28 washers)



Click on photo for
larger view
CUP WASHER, STAINLESS STEEL, LARGE, SET OF 36.  OD 1/2", ID 3/16"  Complete set of 36 stainless steel cup washers for the vintage Fender Bassman 2x15 cabinets.    Set of 36 washers.  Use with the SC-400-36 set of screws.
Part #CW-400-36
$6.89
(for a set of 36 washers)




Click on photo for
larger view
Marshall™ HEAD BACK PANEL STAINLESS STEEL SCREWS AND WASHERS (SET OF 4) FOR FULL SIZE HEADS.  Set of 4 screws, Stainless Steel, 1 1/2" long, Phillips, oval head, with matching cup washers. Fits most all large Marshall™ heads, from the JVM and JTM series from the 60s through the JCM-800, JCM-900, JCM-2000 and JVM series.    Note:  The screw heads in this package have a slight oval shape, as opposed to many Marshall™ head back panel screws which have a flat head.  This oval shape helps improve the "bite" of the screwdriver, and helps prevent the screw head from being mangled over time.
Part #
MBP-4
$1.49
(for a pack of 4 screws and 4 washers)



Click on photo for
larger view

Marshall™ METRIC HANDLE SCREWS
Pack of 2 metric handle screws for Marshall™   MAH-294 handle.   Original Marshall™ , designed to work with the OEM metric T-Nuts.   Set of 2 Flat-head counter-sunk Phillips,  M5 x 0.8, length 25 mm.   Found primarily on JCM900, JCM2000, larger Valvestate, and JVM series amps.
Part #SC-404
$1.99
(for a pack of 2 Marshall™ metric screws)



Click on photo for
larger view
ISOLATION WASHER - 3/8" - For #8 Screws

3/8" outside diameter neoprene bonded flat washer. Perfect for bolting speakers to cabinets. It will securely hold the speaker in place and stop any rattling. For use with #8 screws.  Ideal for vintage Fender amps with #8 speaker mounting screws.  Set of 4 washers.

Part #SIW-38-4

$0.59
(For a set of 4 washers)


Click on photo for
larger view
ISOLATION WASHER - 1/2" - For #10 Screws

Larger 1/2" outside diameter neoprene bonded flat washer. Perfect for bolting speakers to cabinets. It will securely hold the speaker in place and stop any rattling.  For use with #10 screws, such as a 10-32 machine screw.  Set of 4 washers.

Part #SIW-50-4

$0.69
(For a set of 4 washers)


Click on photo for
larger view
REPLACEMENT HOUSING SCREWS FOR MXR PEDALS
Set of 4 housing screws for MXR, Way Huge and other pedals which use 6-32 x 1/2" screws, including pedals which use Bud or Hammond style enclosures.

Replacement screws for Dunlop DCB10 DC Brick, MXR M101 Phase 90, MXR M102 Dyna Comp, MXR M103 Blue Box, MXR M104 Distortion+, MXR M115 Distortion III, MXR M132 SuperComp, MXR M133 Micro Amp, MXR M134 Stereo Chorus, MXR M169 Carbon Copy Analog Delay, MXR M173 Classic 108 Fuzz, MXR M182 El Grande Bass Fuzz, MXR MC401 Custom Audio Electronics Boost, MXR MC402 Boost Overdrive, Dunlop ZW44 Zakk Wylde Overdrive and others.

Part #D-ECB590

$0.59
(for a set of 4 screws)


Click on photo for
larger view

Fender™ SELF-TAPPING SCREWS
Used in vintage Fender™ blackface and silverface amps for a variety of tasks.   Used to attach capacitor pans, tube sockets, transformers on smaller amps, chokes, etc.   Pack of 6 screws.  Replaces Fender™ part number 029913.
Part #SC-410-6
$1.99
(for a pack of 6 screws)



Click on photo for
larger view

Fender™ "DOGBONE" HANDLE SCREWS
Pack of 4 nickel "Dogbone" handle screws for Fender™ style FAH-328 and FAH-329 handles.   Fits the handle on the Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, and Blues Deville, as well as other Fender™ amps of similar design.  Also works with Hiwatt and Vox™ handles and other British design amp handles.  8-32 thread.
Part #SC-402
$1.59
(for a pack of 4 screws)



Click on photo for
larger view

Fender™ VINTAGE HANDLE SCREWS
Pack of 2 stainless steel handle screws for Fender™ style FAH-332, FAH-261 handle.   1" Long, 10-32 threads.   Designed to work with a 10-32 T-Nut, in cabinet wood of 3/4" or less.    Will not work with external nut - must be a T-Nut.   Will not work with cabinet wood thicker than 3/4".  See Data Sheet here
Part #SC-403
$0.99
(for a pack of 2 screws)



Click on photo for
larger view

10-32 THREAD HANDLE SCREWS
Pack of 4 stainless steel handle screws for handles which require 4 screws.   1" Long, 10-32 threads.   Designed to work with a 10-32 T-Nut, in cabinet wood of 3/4" or less.    Will not work with external nut - must be a T-Nut.   Will not work with cabinet wood thicker than 3/4".  See Data Sheet here
Part #SC-403-4
$1.95
(for a pack of 4 screws)



Click on photo for
larger view

BLACK HANDLE SCREWS
Pack of 2 stainless-steel handle screws finished in satin black for use with black end-cap handles, such as our GAH-1 or GAH-271B.  1-1/4" Long, 10-32 threads, finished in satin black to match black end caps.   Designed to work with a 10-32 T-Nut, in cabinet wood of 3/4" or less.    Will not work with external nut - must be a T-Nut.   Will not work with cabinet wood thicker than 3/4".   See Data Sheet here
Part #SC-403B
$0.99
(for a pack of 2 screws)



Click on photo for
larger view

Hex footswitch nut, pack of 4

These replacement nuts fit all Carling brand footswitches and toggle switch and some (but not all) other switches which are not made by Carling.   Carling toggle switches are used in Fender amps.  Hex outer surface (9/16"), M12 thread for 15/32" bushing.

Part HFN-4

$0.99
(for a pack of 4 nuts)


Click on photo for
larger view
SAVE WITH MULTIPACK!  JNUT-38 JACK NUT AND WASHER, METAL, SWITCHCRAFT, SET OF 6
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.   Set of 6 washers and 6 nuts.
Part #JNUT-38-6
$4.50
(Set of 6 washers and 6 nuts)



Click on photo for
larger view
JACK NUT AND WASHER, METAL, SWITCHCRAFT
Genuine Switchcraft™ nut and washer set for the blackface/silverface Fender™ bias pot, Mesa Boogie pots, and the CTS or Alpha pots with 3/8" bushing (found on original vintage Fender™ blackface and silverface), as well as Peavey™ and Switchcraft™ 1/4" jacks.  Does NOT fit the 24mm Marshall™ pots.
Part #JNUT-38
$0.89
(Set of 1 washer and 1 nut)


NUT AND WASHER, NICKEL, KOBICONN OR JALCO TYPE.
Fits J-506, J-506A, J-507, J-530, J-531G, J-532, J-533, J-533G, J-539, J-539G, J-540, J-545, J-6074, J-6075, J-560.
Part #JN-916

$0.75


Click on photo for
larger view

NUT, NICKEL, REAN TYPE, Fender, AMPS 1999 - Present.
Fender
nut, fits J-508 and J-509 jacks.   (Note:  you can use this nut on the Cliff J-502, J-503, J-504, J-505, J-503L and J-504L jacks as well, if you wish to change your amps appearance.)
Part #J-510

$ 0.85


Click on photo for
larger view
WASHER, FOR BRITISH STYLE (CLIFF) JACKS.
This washer goes behind the faceplate on British style plastic nut and chrome nut jacks to provide proper spacing.   Jacks come with the washers included, but the washers are easily lost.  Without the washers, the jacks will not fit properly.

Part #W-583
$0.18
for each washer.
(Jacks not included).



Click on photo for
larger view
JACK NUT, PLASTIC, BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.   Note:     Replaces most black plastic jack nuts EXCEPT for Roland.    Will NOT fit Roland jacks.
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and J-504L jacks.   Also fits the J-518 and J-519 jacks.
Part #J-5NT
$0.50


Click on photo for
larger view
JACK NUT MULTI-PACK - SAVE!   6 JACK NUTS, PLASTIC, BRITISH STYLE, REPLACEMENT FOR Marshall™ AND OTHERS.   Note:     Replaces most black plastic jack nuts EXCEPT for Roland.    Will NOT fit Roland jacks.
Replacement jack nut as found on the J-502, J-503, J-504, J-505, J-503L and J-504L jacks.   Also fits the J-518 and J-519 jacks.
Part #J-5NT-6
$2.39


Click on photo for
larger view
JACK NUT, PLASTIC, BRITISH STYLE, RED
Replacement nut for the J-503, J-504.
Red nuts on these jacks typically are used on later model Marshall™ amps to designate the speaker jacks.
Part #J-5NTR
$1.00


Click on photo for
larger view
JACK NUT, PLASTIC, BRITISH STYLE, WHITE
Replacement nut for the J-555 and J-556 jacks.
Will also fit the J-502, J-503, J-504, J-505, J-503L, J-504L, J-518 and J-519 black jacks, if you wish to create a two-tone effect.
Part #J-5NTW
$1.00


Click on photo for
larger view
JACK NUT/FERULE, CHROME, with BLACK PLASTIC BEZEL/WASHER - BRITISH CLIFF STYLE
Replacement nut and bezel washer for the J-501, J-501S, J-580, J-581, J-580L and J-581L jacks.   Note:   The threads on this nut are coarse (3/8-20), and are for genuine Cliff jacks.   Note:
There are some generic jacks on the market with finer thread nuts.   This nut will not fit those jacks.   This nut is for BRITISH CLIFF STYLE jacks.   Bezel is included with this nut.
Part #JN-200W
$0.95


Click on photo for
larger view
JACK NUT/FERULE, BLACK, with INTEGRAL  BLACK PLASTIC BEZEL - BRITISH CLIFF STYLE
Replacement nut and bezel washer which will fit the J-501, J-501S, J-580, J-581, J-580L, and J-581L jacks.   Note:   The threads on this nut are coarse (3/8-20), and are for genuine Cliff jacks.   Note:  There are some generic jacks on the market with finer thread nuts.   This nut will not fit those jacks.   This nut is for genuine Cliff UK jacks.   Bezel is integral to the nut and cannot be removed.   This is the jack nut used on the Marshall JMP-1 Preamp, and on some versions of the Marshall DRP-1 Direct Recording Preamp.
Part #JN-864
$0.79


Click on photo for
larger view
STAINLESS STEEL CHASSIS SCREWS WITH WASHERS, Marshall™ METRIC
Replacements for the standard M6 metric screws used to hold the chassis in virtually every Marshall™ head.  Washers included.   Package of 4 stainless steel screws, with 4 washers.
Part #MCB-4
$3.99
(Set of 4 screws w/washers)



Click on photo for
larger view
STAINLESS STEEL CHASSIS SCREWS WITH WASHERS, Orange™ METRIC
Replacements for the standard M6-1.00 50mm metric screws used to hold the chassis in UK-built Orange™ heads and combos.  Washers included.   Package of 4 stainless steel screws, with 4 washers.
Part #OCB-4
$4.99
(Set of 4 screws w/washers)


Click on photo for
larger view
STAINLESS STEEL CHASSIS SCREWS WITH WASHERS, Trace Elliot™ METRIC
Replacements for the standard M6-1.00 35mm metric screws used to hold the chassis in UK-built Trace Elliot™ heads and combos.  Washers included.   Package of 4 zinc-plated steel screws, with 4 washers.
Part #TCB-4
$3.99
(Set of 4 screws w/washers)




Click on photo for
larger view
STAINLESS STEEL COMBO CHASSIS SCREWS, Marshall™ METRIC (NOT BLACK!)  SET OF 4 SCREWS.
Unpainted replacements for the standard M6 metric screws used to hold the chassis in virtually every larger Marshall™ combo (typically 50 watts & up).   Note that these screws are plain stainless steel - NOT BLACK LIKE the ORIGINALS.  You may paint the top black if you choose.  We recommend that you only paint the top - do not paint the threads.  35mm long, replaces Marshall part number MESCRW00001.   Found in the JTM610, JTM612, JTM612, JTM615, JTM622, JCM601, JCM602, 2101, 2501, 2502, 4101, 4102, 4501, 4502, TSL601, TSL601, and TSL122.  Set of 4 screws.   See the CW-400-4 washer set below for suitable washerss.
Part #MCS-5140-4
$2.29
(Set of 4 screws)


Click on photo for
larger view
CUP WASHER, STAINLESS STEEL, LARGE, SET OF 4.  OD 1/2", ID 3/16"  Typically found on larger combo amp cabinets and 4x12 cabinets, such as Marshall™ .   Set of 4 washers.
Part #CW-400-4
$0.99
(for a set of 4 washers)




Click on photo for
larger view
STAINLESS STEEL CHASSIS SCREWS, 10-24 THREAD, SET OF 4 SCREWS.
These 10-24 screws are used on a limited number of amplifiers as chassis mounting screws.   Oval head, 1-1/2 inches long, stainless steel, 10-24 thread.  Set of 4 screws.  Generally used with the extra-large CW-502 cup washer.
Part #SC-412-4
$1.99
(Set of 4 screws)


Click on photo for
larger view
Marshall™ CHASSIS WASHERS
Replacements for the standard washers used with the MCB-4 chassis screws under virtually every Marshall™ head.   Note:  Not for Marshall Combo amps.   Also fits Orange and Trace Elliot amps which use chassis bolts to secure the chassis.  Package of 4 washers.
Part #MCW-4
$1.99
(Set of 4 washers)



Click on photo for
larger view
CHASSIS CAGE NUTS, Marshall™ M6 METRIC
Replacements for the standard M6 metric cage nuts used on the chassis in virtually every Marshall™ head.   Package of 4 cage nuts.   Mates with the MCB-4 or MCS-5140-4 screws, above.
Part #MCN-4
$4.59
(Set of 4 nuts)




Click on photo for
larger view
CAGE NUT, ZINC, 10-32 THREAD.   Used on square-punched amp chassis rails to secure the chassis to the cabinet.   Frequently found in Peavey, Crate, Ampeg, other brands.   NOT used in Marshall™ - see the MCN-4.   Works with all 10-32 screws.   Verify screw thread before ordering, as not all cage nuts are 10-32.   Zinc coating retards oxidation.   Pack of 4 nuts.   Made in Canada by Hammond Industries.
Part CNA-1421
$4.29
(pack of 4)



Click on photo for
larger view
Vox CORNER, BLACK PLASTIC, SOLD INDIVIDUALLY. These Tube Amp Doctor black plastic corners are great replacements for Vox™ and Orange™ amps and cabinets that feature this type. The two larger holes are for use with screws while the small holes are intended for pins/nails just like the originals. 3/4" radius, 2 pins on front.   Used on some vintage Vox amps.  For heads, combos and straight speaker cabinets.    Screws NOT included.  Use CN-304-8 nails and SC-411-8 black screws to attach.
Part #VC-1050
$2.45
(Per individual corner)


Click on photo for
larger view

NICKEL GLIDE FEET, Fender™ STYLE, PACK OF 4, 3 PRONG HAMMER TYPE.
Older style 3-prong glide feet for Fender™ amplifiers - metal cap has 3 prongs, and the cap is hammered into the base of the amplifier.

Part #CG-068
$3.95
(pack of 4)


Hard to Find Jacks


Click on photo for
larger view
WASHER, FOR BRITISH STYLE (CLIFF) JACKS.
This washer goes behind the faceplate on British style plastic nut and chrome nut jacks to provide proper spacing.   Jacks come with the washers included, but the washers are easily lost.  Without the washers, the jacks will not fit properly.

Part #W-583
$0.18
for each washer.
(Jacks not included).



Click on photo for
larger view
MARSHALL MINI-JACK, STEREO, 3.5mm
Used as the Line Out, Headphone, or Music Source Input Jack on the MG15CFX, MG30CFX, MG50CFX, MG100CFX, MG15FX, MG30FX, MG50FX, MG100FX, MG15GFX, MG30GFX, MG50GFX, MG100GFX.   Accepts 1/8 inch or 3.5mm stereo mini-plugs.
Part #J-355
$2.50



Click on photo for
larger view

JACK, 1/4", Peavey ORIGINAL, DUAL TIP HID, PC MOUNT, MONO, 4 PINS (NARROW PINS).  SPECIAL APPLICATION!
This jack is for use in Peavey™ products only, and is unusual in that two different pins contact the tip of the plug.  One of the tip contacts is switched (normally closed), and the other tip contact is open.  The pins on this jack are narrow (1.1mm).  For the same jack with wide pins, see the J-521.  This jack is exclusive to Peavey™.  Peavey part number 71466214 or 31466214. Used for a variety of functions on Peavey products, including input jacks. Nut and washer included. Found in the Classic 20, Classic 30, Delta Blues, 112TI, 115TI, and some Ecoustic models, among others.
Part #J-214
$5.95


Click on photo for
larger view
JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, METAL BUSHING.
Both tip and ring conductors are switched (normally closed).  5 pins.    Original Peavey part number 31466217.  Found in most Peavey Vyper models as the input jack.  Replaces Switchcraft 114BPCX and 114BPCSX.  Nut and washer included.

Part #J-217
$4.95



Click on photo for
larger view
JACK, 1/4", PC MOUNT, STEREO, 6 PINS, SWITCHED, INSULATED.    Original Peavey part number 31466165 and 71466165.  Found in some versions of the 5150, 6505, 5150-II and 6505+, as well as the pre-EQ jack on the KB60.  Used as the input jack on the older version of the Basic 112.  Nut and washer included.

Part #J-625
$8.95


Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, WIRED, Switchcraft, LONG BUSHING, ISOLATION WASHERS
Same as the Switchcraft L11 but includes fiber isolation washers. The isolation washers keep the jack from making contact with your chassis. This leaves the jack ungrounded which is needed in certain applications.

Part #J-L11W
$5.79


Click on photo for
larger view
JACK, 1/4", MONO, TIP SHUNT, WIRED, Switchcraft, LONG BUSHING, ISOLATION WASHERS
Same as the Switchcraft L12A jack but includes a set of isolation washers. The isolation washers keep the jack from making contact with your chassis. This leaves the jack ungrounded which is needed in certain applications.   Commonly used in older Fender™ Hot Rod Deluxe/Deville and Blues Deluxe/Deville amps to replace the fragile input jacks.
Part #J-L12AW
$5.99


Click on photo for
larger view
JACK, 1/4", TIP/RING/SLEEVE, WITH TIP SHUNT.  Switchcraft 13B Jack.
Tip/Ring/Sleeve Switchcraft jack.   Tip has a shunt contact, ring contact is open circuit.

Part #J-13B
$9.95


Click on photo for
larger view
JACK, 1/4", TIP-SLEEVE, WITH ISOLATED SWITCHING.  Switchcraft
Used with for special switching applications - the two conductors for the switch are completely isolated from both the "hot" audio signal and the ground connection.   Used in some vintage amplifiers, including some early Fender™ models.   Isolated switch is normally open - closes when a plug is inserted.
Part #J-13
$10.50


Click on photo for
larger view
JACK, 1/4", TIP-SLEEVE, WITH ISOLATED SWITCHING.  Switchcraft
Used with for special switching applications - the two conductors for the switch are completely isolated from both the "hot" audio signal and the ground connection.   Used in some vintage amplifiers, including some early KUSTOM™ models including the KUSTOM™ 150.  KUSTOM™ part number 030-1006-00. Also used in some Rivera-era Fender models, including the Champ II, original Super Champ, 300PS, Super Twin, and Fender 75. Fender part number 011028. Isolated switch is normally closed - opens when a plug is inserted.
Part #J-13E
$13.95


Click on photo for
larger view
JACK, 1/4", TIP-SLEEVE, WITH TRANSFER SWITCHING.  Switchcraft 13A Jack.
Used with for special switching applications - the tip contacts one terminal when no plug is inserted, and contacts a different terminal with the plug in place.   Used in
a number of Fender™ models, both vintage and modern as the extension speaker jack (ex: Blues and Hot Rod Deluxe and Deville models).  Original Fender™ part number 0041701000 (originally 042701).   Also found in some Peavey amps, such as the Classic 50 speaker jack.
Part #J-13A
$10.95

5 PIN MIDI CONNECTOR, PCB   Female, right angle.  Pin spacing 2.54mm (0.1").   2A 100VAC - 1A 24VDC.   Often found in keyboards, rack mount MIDI-controlled processors, etc.
Part #J-1010
$1.95


Click on photo for
larger view
JACK, COMBINATION XLR and 1/4", CHASSIS-MOUNT - FOR PC BOARD, VERTICAL MOUNT.   Made by Neutrik # NCJ6FA-V. Exact replacement for for many combo XLR-1/4" jacks.  With push latch as shown.  Download the complete engineering drawing showing the pin layout here.
Part #J-NCJ6FA-V
$5.99



Click on photo for
larger view
JACK, 1/4",  CLOSED CIRCUIT STEREO, HAND WIRED, Switchcraft STYLE, METAL BUSHING
Tip is switched  (normally closed), ring conductor is not switched.  4 pins for wiring, metal bushing. Used in DOD™ and other brands.   Nut and washer included.  Genuine Switchcraft

Part #J-113BX
$6.95



Click on photo for
larger view
JACK, 1/4",  CLOSED CIRCUIT STEREO, HAND WIRED, Switchcraft STYLE, METAL BUSHING
Tip is open, ring is switched  (normally closed).  4 pins for wiring, metal bushing.  Unusual arrangement used in special applications.   Nut and washer included.  Genuine Switchcraft

Part #J-113FX
$6.95


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT, RIGHT ANGLE PC MOUNT, Switchcraft STYLE, NYLON THREADS, 2 PINS
Common jack in Crate
& Ampeg, and in some solid state products from Fender during the early 1980s.   Nut and washer included.   2 pins.


Part #RN111PC
$6.95


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT, RIGHT ANGLE PC MOUNT, Switchcraft™ STYLE, NYLON THREADS, 3 PINS
Common input jack in Crate
™ & Ampeg™, and in some solid state products from Fender™ during the early 1980s.   Nut and washer included.   Fender part number 018594.


Part #RN112APC
$6.95


Click on photo for
larger view
JACK, 1/4", MONO, OPEN CIRCUIT, RIGHT ANGLE PC MOUNT, Switchcraft STYLE, NYLON THREADS, 3 PINS (TIP/RING/SLEEVE)
Found in a number of products in the 80s and 90s, including mixing consoles, effects pedals, etc.  Open circuit (no switching) tip/ring/sleeve.  3 PC board pins.   Nut and washer included.


Part #RN112BPC
$6.95


Click on photo for
larger view

JACK, 1/4", Peavey™ ORIGINAL, DUAL TIP HID, PC MOUNT, MONO, 4 PINS (WIDE PINS).  SPECIAL APPLICATION!!
This jack is for use in Peavey™ products only, and is unusual in that two different pins contact the tip of the plug.  One of the tip contacts is switched (normally closed), and the other tip contact is open.  The pins on this jack are wide (1.7mm), so the hole in the PC board must be large enough to accept the pin.   For the same jack with narrow pins, see the J-214.   This jack is exclusive to Peavey™.  Peavey part number 71466032 or 31466032.  Used for a variety of functions on Peavey products, including input jacks.  Nut and washer included.
Part #J-521
$6.95



Click on photo for
larger view

JACK, 1/4", Peavey™ ORIGINAL, DUAL TIP HID, PC MOUNT, MONO, 4 PINS (NARROW PINS).  SPECIAL APPLICATION
This jack is for use in Peavey™ products only, and is unusual in that two different pins contact the tip of the plug.  One of the tip contacts is switched (normally closed), and the other tip contact is open.  The pins on this jack are narrow (1.1mm).  For the same jack with wide pins, see the J-521.  This jack is exclusive to Peavey™.  Peavey part number 71466214 or 31466214. Used for a variety of functions on Peavey products, including input jacks. Nut and washer included. Found in the Classic 20, Classic 30, Delta Blues, 112TI, 115TI, and some Ecoustic models, among others.
Part #J-214
$5.95



Click on photo for
larger view

JACK, 1/4", Peavey™ ORIGINAL, DUAL TIP HID, PC MOUNT, MONO, 4 PINS, INSULATED.   SPECIAL APPLICATION!!
This jack is for special applications in Peavey™ products only, and is unusual in that two different pins contact the tip of the plug.  One of the tip contacts is switched (normally closed), and the other tip contact is open.  This jack is exclusive to Peavey™.   Same as J-521 except that the threads are insulated.  Nut and washer included.

Part #J-522
$5.95


Click on photo for
larger view
JACK, 1/4", PC MOUNT, STEREO, 5 PINS, SWITCHED, INSULATED.   Both tip and ring are switched (normally closed).   Used in Peavey™ and other brands.  Same as J-114BPC, except that the threads are insulated.  Nut and washer included.   This version has standard wide pins for insertion into PC board.   See the J-527 for narrow pins for small PC board holes.

Part #J-523
$6.95


Click on photo for
larger view
JACK, 1/4", PC MOUNT, STEREO, 4 PINS, SWITCHED, METAL BUSHING.
Tip is switched  (normally closed), ring conductor is not switched.   Used in a variety of brands.   Not the 4 pin jack usually found in Peavey - the Peavey 4-pin jack is the J-521.  Nut and washer included.

Part #J-524A
$3.50



Click on photo for
larger view

JACK, 1/4", TIP/SLEEVE 5 PIN, PC MOUNT, Epiphone/Gibson AMPS
PC mount 1/4" jack. Mono, 5 pin. Used in some Epiphone/Gibson
amps, some ADA Processors, as well as some other brands.  Nut and washer included.  Replacement nut/washer set is the JN-916.


Part # J-506A
$5.55



Click on photo for
larger view

JACK, 1/4", TIP/SLEEVE 3 PIN, PC MOUNT, Used in Fender Squire and Sidekick Amps from the Rivera-era (80s, early 90s)
PC mount 1/4" jack. Mono, 3 pin.   Also used in some Fender
Squire amps, such as the Champ 12 Champ 15, 15G and Sidekick 15 and 15B.  Used in the Marshall MS-2 Mini Amp.  Nut and washer are included.  Replacement nut/washer set is the JN-916.  Fender part number 025929 or 0025929000.

Part # J-506B
$5.95


Click on photo for
larger view

JACK, 1/4", Marshall™ ORIGINAL, MG SERIES, 6 Pins


Used in the Marshall™ G50RCD, G80RCD and G100RCD as the input jack.   6 pins, as shown in the photo.  No trim ring on the front of jack - only black plastic.  Low profile design.   Used only in the G50RCD, G80RCD, and G100RCD.  Includes nut and washer.


Part # J-530

$6.75



Click on photo for
larger view

JACK, 1/4", TIP/RING/SLEEVE, 7 PIN, PC MOUNT, Fender, Hartke, B-52, Randall, and Crate Amps.  Fender™, Hartke™, Randall™, B-52™ or Crate™ PCB mount 1/4" jack.  7 pins.   Fits several Hartke amp models 1990 - present, and several Crate models, especially in the GX series.  Used in the Fender SKX65R and SKX100R for the input jacks.  Used in some Fender Squier and Sidekick amps as the headphone jack.   Replaces Hartke part number 350023 and 300519.  Replaces Fender part number 022923.  Includes nut and washer.  Replacement nut/washer set is the JN-916.

Part # J-545
$6.70


Click on photo for
larger view

JACK, 1/4", TIP/RING/SLEEVE, 6 PIN, PC MOUNT, ADA MP-1 Input Jack.  Hard-to-find 6-pin input jack used in SOME VERSIONS of the ADA MP-1 preamp.   Check your particular MP-1, as three completely different jacks were used at various times over several years during the production of the MP-1.  Includes nut and washer.   Replacement nut/washer set is the JN-916.   Also see the J-575G jack, below, for the low-profile version.

Part # J-535
$6.70


Click on photo for
larger view

JACK, 5-PIN Low Profile, 1/4", ADA™.  Used as the jacks on SOME VERSIONS of the ADA MP1 effects processor.  Nut and washer are included.   Note:  GOLD trim ring on face of jack.

Part # J-575G

$6.70



Click on photo for
larger view


JACK, 1/4", Marshall™ G SERIES, INPUT, LINE OUT, FOOTSWITCH,  PC MOUNT, HAS RED STRIPE, ALSO USED IN YAMAHA, KORG, FENDER.    MONO, SWITCHED.
Used in certain Marshall™ G-series amps from the late 90s  - compare with original jack.   Back legs are slightly staggered - not positioned directly across from each other.   Check the back of the existing jack - if the back is red and the back legs are staggered, this would be the correct replacement.   Used as the input jack and the line out jack in the Marshall™ G15RCD.   Used as the input, line out and footswitch jack in the Marshall™ G30RCD.   Used as the line out, footswitch, FX send and return jacks in the Marshall™ G50RCD.   Used as the input jack on certain Fender™ SideKick amps, such as the SideKick Chorus 20.   Also used in Korg and Yamaha keyboards - Korg part number 454X851003, Yamaha part number LB202330.

NUT & WASHER NOT INCLUDED - REUSE ORIGINAL OR ORDER JN-916
Part #J-531
$4.75


Click on photo for
larger view
JACK, 1/4", CHROME NUT, CLOSED CIRCUIT, PC MOUNT, USED IN FENDER CHAMPION 600.   Input jack for the Champion 600 reissue.   Stereo T/R/S jack, no switching.  Fender part number 0073909049, 0073909000, 007-3909-049.  Nut and washer included.
Part #J-739
$3.95



Click on photo for
larger view

JACK, 9-PIN Low Profile, 1/4",  Marshall™,  GOLD Trim Ring  Used as the Effects A return jack and Effects B return jack on the rear panel of the Marshall™ DSL-50, DSL-100, TSL122 and TSL-100.    GOLD trim ring.  Jack data here.   Nut and washer are included.   Replacement nut/washer set is the JN-916.

Part # J-560G
$6.50



Click on photo for
larger view

JACK, 9-PIN Low Profile, 1/4",  Marshall™, Fender™, CHROME Trim Ring.  Used as the Effects A return jack and Effects B return jack on the rear panel of the Marshall™ DSL-50, DSL-100, TSL122 and TSL-100.  Nut and washer are included.   CHROME trim ring.  Jack data here.  Replacement nut/washer set is the JN-916.

Part # J-560
$6.50



Click on photo for
larger view

JACK, 5-PIN Low Profile, 1/4", Marshall™, Gold Trim Ring.  Used as the Effects A send jack and Effects B send jack on the rear panel of the Marshall™ DSL-50, DSL-100, TSL-122 and TSL-100.   Nut and washer are included.  Note:  GOLD trim ring on face of jack.

Part # J-565G
$4.70


Click on photo for
larger view



JACK, 1/4", Fender™, 4-PIN.  Used as the input jack on some versions of the Fender™ Sidekick amp series.  Includes nut and washer.


Part # J-6075

$5.95


WITH CHROME TRIM RING

Click on photo for
larger view

JACK, 1/4", Marshall™ ORIGINAL, MG SERIES, USED AS CD OUTPUT JACK, PC MOUNT,  ALSO USED IN YAMAHA, KORG, ROLAND, ENSONIQ.  CHROME SLEEVE.
Used in certain Marshall™ G-series amps from the late 90s - compare with original jack.   Used as the CD input jack in the Marshall™ G15RCD and the G30RCD.   Original Marshall™ part number J1031.   Used for the Headphone output of the Roland S-50 and S-770 and for the Headphone and Ext. Control jack of the Roland U-220.   It also replaces all the jacks in the Korg 01/W and 01R/W, and the CV Pedal jacks in the Ensoniq ESQ-1, ESQ-M, and SQ-80 keyboards.  The jack is equivalent to Roland part # 13449148 (YKB21-5009), Korg part # 454004400, and Behringer part # W64-01081-03178.  Used in the Behringer V-Amp and P16-M.  The chrome sleeve at the jacks opening is cosmetic.  The jack will replace equivalent jacks that have a gold sleeve or no sleeve.   Nut and washer are included.  Replacement nut/washer set is the JN-916.

Part #J-532
$4.75


4-PIN, WITH CHROME TRIM RING

Click on photo for
larger view

JACK, 1/4", STEREO, 4-PIN SWITCHED, MADE BY KOBICONN OR JALCO, USED IN  KORG, YAHAMA & OTHERS, PC MOUNT   This 4-pin, PC mount, 1/4" stereo phone jack has a normally closed tip shunt and is used in a variety of amps and keyboards made by Ensoniq, Marshall™, Ibanez, Casio, Korg, Roland and others.   Used in the Ibanez Super Metal SML stomp box, and the Casio Privia PX-310 keyboard.   It also replaces the Ensonq SQ-1, SQ-2 and SQ-R jacks and the Ensoniq ESQ-1 and ESQ-M Output jacks, Tape In & Out jacks, and Sequencer Footswitch jack.    Also replaces the Aviom A16II-HP output jack.  Shure part number 95B8329.

This jack replaces Korg part #454004400 (YKB21-5010) and Roland part #13449263 (YKB21-5005).   Nut and washer are included.   Replacement nut/washer set is the JN-916.

Part #J-53
3
$4.75


3 PIN, WITH CHROME TRIM RING

Click on photo for
larger view

JACK, 1/4", MONO, 3-PIN, INPUT, MADE BY KOBICONN,    Used in Marshall™, Korg, Yamaha, Roland, Behringer & others, PC Mount.  Chrome sleeve around jack entrance.   Gold sleeve also available, see J-539G.  Korg part number 454004300.  Behringer part number W64-01382-03176.  Roland part number 13449146.  Nut and washer are included.  Replacement nut/washer set is the JN-916.

Part #J-539
$5.75


Click on photo for
larger view



JACK, 1/4", 7-PIN, HEADPHONE,  USED IN Marshall™, FENDER™, YAMAHA™ & OTHERS, PC MOUNT
Used as the headphone jack in the Marshall™ G15RCD and G30RCD.   Original Marshall™ part number V4550.   Used as the headphone jack in Yamaha models YPR6, HE6, PSR520, YPR8, and other models.   Original Yamaha part number LB10187R.   Used in the Fender Sidekick Bass Amp as the headphone jack, Fender part number 022923.  Used in the Korg Triton Studio, Triton extreme, M3, CI8600, CI9600.  Korg part number 454005600, YKB21-5006.  Casio Part # 36120665.  Note:  No trim ring at jack opening.
   Includes nut and washer.

Part # J-540


$6.70


Click on photo for
larger view
JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE WITH CHROME NUT AND CHROME TRIM RING
4 PC board terminals, switched.  Used in many brands of amps and other equipment.   Same footprint as J-503 jack - may be used in place of J-503 to add a touch of "chrome" class to your amp!   Used in newer Mesa Boogie amps, including the Rosette, Mini Rectifier, Mark 5:Twenty-Five, etc.
Part #J-603
$2.79
(per jack)



Click on photo for
larger view
JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE, WITH EMI/RFI GROUND WASHER.
Same as the J-503, with the addition of a special ground washer which contacts the chassis AND is inserted into the ground connection of the PC board via dual pins under the jack.   4 PC board terminals for signal, plus 2 additional terminals for the ground washer.   Only for amplifiers so equipped for this jack, designed to reduced EMI/RFI interference (radio stations, ground loops).  Found in some Marshall solid state amps, as well as other brands.   Note:  Must be used only on amps designed for this type of jack that have the PCB holes to accept the pins of the ground washer.  Nut is included. Original Cliff UK part number CL1169/FCR14422.
Part #J-503GW
$2.59


Click on photo for
larger view
JACK, 1/4", MONO PC MOUNT PLASTIC, BRITISH STYLE,  RED NUT, REPLACEMENT FOR Marshall™ SPEAKER JACKS.
4 PC board terminals, switched. Used in modern Marshall™TM amp heads (JCM2000 series TSL and DSL, for example) as the output jack for the speaker cabinet.  With red nut and washer.
Part #J-503R
$2.39


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, CHROME RING
Mono jack. 4 PC board terminals, switched.  Same as J-503 jack, with the addition of the chrome ring around the entrance.  Used in Line 6™ amps as well as some other brands. Used in Electro Harmonix products.  Also found in many Engl amps (particularly on the back panels).  May be used to replace the J-503 to "upgrade" the looks of any amp using the J-503 type jack.   With nut and washer.
Part #J-503C
$2.99


Click on photo for
larger view
JACK, 1/4", MONO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, L-LEG Common input jack in Crate™, Ampeg™, others.  4 pins, PC mount, with nut and washer.  Note "L-Leg" pins as shown in photo.
Part #J-503L
$3.79


Click on photo for
larger view
JACK, 1/4", MONO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, EXTRA-TALL LEGS.  Common input jack in certain B-52™, Epiphone™™, and other specialty brand amps.   Also may be used as a replacement for the rear panel jacks FX loop jacks on the Marshall™ MG100DFX and also as the speaker jacks on the MG100HDFX.  4 pins, PC mount, with nut and washer.  Note extended straight pins as shown in photo, causing the jack to sit about 1/8" above the PC board.
Part #J-503SL
$3.45


Click on photo for
larger view
JACK, 1/4", STEREO PC MOUNT PLASTIC, BRITISH STYLE WITH CHROME NUT AND CHROME TRIM RING
6 PC board terminals, switched.  Used in many brands of amps and other equipment.   Same footprint as J-504 jack - may be used in place of J-504 to add a touch of "chrome" class to your amp!   Used in newer Mesa Boogie amps, including the Rosette, Mini Rectifier, Mark 5:Twenty-Five, etc.
Part #J-604
$2.99
(per jack)



Click on photo for
larger view
JACK, 1/4", T/R/S PC MOUNT PLASTIC, BRITISH STYLE, WITH EMI/RFI GROUND WASHER.
Same as the J-504, with the addition of a special ground washer which contacts the chassis AND is inserted into the ground connection of the PC board via dual pins under the jack.   6 PC board terminals for signal, plus 2 additional terminals for the ground washer.   Only for amplifiers so equipped for this jack, designed to reduced EMI/RFI interference (radio stations, ground loops).  Found in some Marshall solid state amps, as well as other brands.   Note:  Must be used only on amps designed for this type of jack that have the PCB holes to accept the pins of the ground washer.  Nut is included. Original Cliff UK part number CL1227/FCR14422.
Part #J-504GW
$2.89


Click on photo for
larger view
JACK, 1/4", STEREO, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, CHROME RING
Stereo jack. 6 PC board terminals, switched.  Same as J-504 jack, with the addition of the chrome ring around the entrance.  Used in Line 6™ amps as well as some other brands.  Line 6 part number 21-00-6616.   Also used in Electro Harmonix products.  Also found in many Engl amps (particularly on the back panels).  May be used to replace the J-504 to "upgrade" the looks of any amp using the J-504 type jack.   With nut and washer.
Part #J-504C
$3.50


Click on photo for
larger view
JACK, 1/4", STEREO, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, L-LEG Common input jack in Crate™, Ampeg™, others.  6 pins, PC mount, with nut and washer.   Note "L-Leg" pins as shown in photo.
Part #J-504L
$3.95


Click on photo for
larger view
JACK, 1/4", STEREO INPUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, EXTRA-TALL LEGS.   May be used as a replacement for the footswitch jack on the Marshall™ MG100HDFX.  6 pins, PC mount, with nut and washer.  Note extended straight pins as shown in photo, causing the jack to sit about 1/8" above the PC board.  Used as the output jack on the Orange DT30.
Part #J-504SL
$3.95


Click on photo for
larger view

JACK, 1/4", MONO 4-PIN, PC MOUNT, Fender  Fender PCB mount 1/4" jack. Tip/Sleeve, 4 pin. Used as the input jacks on the Fender Mustang amps (I through IV).   Used as the footswitch jack on the Ultimate Chorus DSP Amp from 2000-2002.  Also used on some Squier models.   Nut is included.   Original Fenderpart numbers 0091653000 and 0051658000.
Part #J-517

$2.95


Click on photo for
larger view
JACK, 1/4", STEREO 6-PIN, PC MOUNT, Fender  Fender PCB mount 1/4" jack. Tip/Ring/Sleeve, 6 pin. Used as the effects jacks and headphone jacks on the Fender Mustang amps (III through V).  Also used as the input jacks and all FX Loop Jacks on the Ultimate Chorus DSP Amp from 2000-2002.   Nut is included.   Original Fenderpart numbers 0091655000 and 0053450000.
Part #J-514
$3.50



Click on photo for
larger view

JACK, 1/4", MONO, PC MOUNT, SHORT THREAD, PEAVEY
PCB mount 1/4" jack. Mono, 4 pin, PC board mount. Used in several versions of the Peavey ValveKing amplifiers, the MP4 Plus Powered Mixer, and the later versions of the Basic 112.  Nut is included.   Peavey part number 71466222 and 31466322.

Part #J-661

$ 3.79
(per jack)



Click on photo for
larger view

JACK, 1/4", STEREO, PC MOUNT, SHORT THREAD, PEAVEY
PCB mount 1/4" jack. Mono, 6 pin, PC board mount. Used in several versions of the Peavey ValveKing amplifiers.  Also used in the Tour TKO amp.   Peavey part number 31466323.  Nut is included.

Part #J-662

$ 3.99
(per jack)



Click on photo for
larger view

JACK, 1/4", STEREO, REAN TYPE, PC MOUNT, Metal 3/8" Threads, Fender AMPS 1998 - Present.
Fender
PCB mount 1/4" jack. Stereo, 6 pin.  Fender™ part number 0059889000.  Princeton™ Recording Amp, Jazz-King™, TB 600/1200, Bassman™ TV Series, Super Bassman™ (2012), Machete™, Acoustasonic™ SFX II, Princeton™ 650, Deluxe™ 900, Stage™ 1000/1600, EVH 5150III, Cyber-Twin™ SE, JazzMaster™ Ultralight, Bassman™ 250, Steel King and Super-Champ™ X2 amplifiers (1998-present).   Identical to J-508 jack above, except for the metallic threads, which uses a different size nut.  Nut and washer are included.
Part #J-563

$ 4.75



Click on photo for
larger view

Note:  Nut & Washer NOT included - reuse original, or order JNUT-38.

JACK, 1/4", STEREO, REAN TYPE, PC MOUNT, Metal 3/8" Threads, Grounding type,  Fender AMPS 1998 - Present.
Fender
PCB mount 1/4" jack. Stereo, 6 pin.  Fender™ part number 0079774000.  Shield grounded to chassis via metal bushing, tip and ring switched.  Nut NOT included.   Reuse existing nut or order nut separately as part #JNUT-38.
Part #J-564

$ 3.95



Click on photo for
larger view

Note:  Nut NOT included - reuse original, or order J-510 or J-5NT, below.

JACK, 1/4", STEREO, REAN TYPE, PC MOUNT, Half-thread (Bullnose)
PCB mount 1/4" jack. Stereo, 6 pin. Identical to J-508 jack above, except for the shorter threads. Used in many models of guitar amps, mixers and power amps, including Yorkville.   Korg part number CON0010058.  Found in Korg PA300, PA3X, PA600, PA700, SV1.  Nut NOT included.   Reuse existing nut or order nut separately as part #J-510.  Note: You can also use the black plastic Cliff nut on this jack, and some models are designed that way.  If you need the black plastic nut to fit this jack, order #J-5NT, further down this page.
Part #J-562

$ 3.95



Click on photo for
larger view

Note:  Nut NOT included - reuse original, or order J-5NT, below.

JACK, 1/4", MONO, REAN TYPE, PC MOUNT, Half-thread (Bullnose)
PCB mount 1/4" jack. Mono, 4 pin. Identical to J-509 jack above, except for the shorter threads. Used in many models of guitar amps, mixers and power amps, including Yorkville.  Nut NOT included.   Reuse existing nut or order #J-5NT, further down this page.
Part #J-561

$ 3.50


Click on photo for
larger view
JACK, 1/4", CHROME NUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, L-LEG, TIP-SLEEVE, 4 PINS.   Generally found only in Crate or Ampeg products.   Common input, footswitch or effects loop jack exclusive to Crate™ and Ampeg™.   (Other brands with chrome-nut jacks use a straight pin jack such as the J-580.)  4 pins, PC mount, with chrome nut and washer.   Note "L-Leg" pins as shown in photo.   Original Crate or Ampeg part number 39-119-01.
Part #J-580L

$4.59


Click on photo for
larger view
JACK, 1/4", CHROME NUT, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE, L-LEG, TIP-RING-SLEEVE, 6 PINS.   Generally found only in Crate or Ampeg products.  Common input, footswitch or effects loop jack exclusive to Crate™, Ampeg™.   (Other brands with chrome-nut jacks use a straight pin jack such as the J-581.)  6 pins, PC mount, with chrome nut and washer.   Note "L-Leg" pins as shown in photo.   Original Crate or Ampeg part number 39-120-01.
Part #J-581L
$4.95


Click on photo for
larger view
JACK, 1/4", MONO, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE - WHITE   Identical to the J-503 above, except in white.  How cool is that!  Mono input jack. 4 PC board terminals, switched. Used in modern Marshall™ amps, as well as many other brands.  With nut and washer.
Part #J-555
$3.99


Click on photo for
larger view
JACK, 1/4", STEREO, CLOSED CIRCUIT, PC MOUNT, BRITISH STYLE - WHITE   Identical to the J-504 above, except in white.  How cool is that!  Stereo jack. 6 PC board terminals, switched. Used in modern Marshall™ amps, as well as many other brands. Used in many PA and recording consoles, Marshall™ bass heads, Line 6™ amps, and "rack" units.   With nut and washer.
Part #J-556
$3.99


Click on photo for
larger view
JACK NUT, PLASTIC, BRITISH STYLE, RED
Replacement nut for the J-503, J-504.
Red nuts on these jacks typically are used on later model Marshall™ amps to designate the speaker jacks.
Part #J-5NTR
$1.00


Click on photo for
larger view
JACK NUT, PLASTIC, BRITISH STYLE, WHITE
Replacement nut for the J-555 and J-556 jacks.
Will also fit the J-502, J-503, J-504, J-505, J-503L, J-504L, J-518 and J-519 black jacks, if you wish to create a two-tone effect.
Part #J-5NTW
$1.00


Click on photo for
larger view
JACK NUT/FERULE, CHROME, with BLACK PLASTIC BEZEL/WASHER - BRITISH CLIFF STYLE
Replacement nut and bezel washer for the J-501, J-501S, J-580, J-581, J-580L and J-581L jacks.   Note:   The threads on this nut are coarse (3/8-20), and are for genuine Cliff jacks.   Note:
There are some generic jacks on the market with finer thread nuts.   This nut will not fit those jacks.   This nut is for BRITISH CLIFF STYLE jacks.   Bezel is included with this nut.
Part #JN-200W
$0.95


Click on photo for
larger view
JACK NUT/FERULE, BLACK, with INTEGRAL  BLACK PLASTIC BEZEL - BRITISH CLIFF STYLE
Replacement nut and bezel washer which will fit the J-501, J-501S, J-580, J-581, J-580L, and J-581L jacks.   Note:   The threads on this nut are coarse (3/8-20), and are for genuine Cliff jacks.   Note:  There are some generic jacks on the market with finer thread nuts.   This nut will not fit those jacks.   This nut is for genuine Cliff UK jacks.   Bezel is integral to the nut and cannot be removed.   This is the jack nut used on the Marshall JMP-1 Preamp, and on some versions of the Marshall DRP-1 Direct Recording Preamp.
Part #JN-864
$0.79


Click on photo for
larger view
RCA JACK, PANEL MOUNT  Exact replacement for the reverb tank and footswitch jacks on the rear panel of Fender™ Blackface and Silverface amplifiers.  Made by Switchcraft.   Nut is included.
Part #J-122
$2.99


Click on photo for
larger view
Revisit™ RCA JACK, PANEL MOUNT, CHROME, PHENOLIC BASE MOUNTED - FENDER™ TWEED AMPS SPEAKER JACK.  RCA Phono Jack, chassis mount. 11/16" mounting hole spacing, black phenolic base, round.  Chrome RCA jack.  Used as the speaker jack in some Fender Tweed amps from the 1950s, as well as the Fender™ blackface and silverface Champ, VibroChamp and Bronco Amps from the 60s and 70s.  Also used in vintage USA-Made Accutronic Reverb Tanks made before 2010.   Black phenolic base.
Part #J-351
$3.50


Click on photo for
larger view
FENDER HEADPHONE AND AUXILAIRY JACK - MUSTANG AMPLIFIERS  Fender part number 0082046000.   Used only in the Mustang series of amps as the 1/8" stereo headphone or aux jack.
Part #J-820
$5.99


Hard to Find Speaker Connections



Click on photo for
larger view
Revisit™ JACK PLATE COMPLETE WITH SWITCHCRAFT #11 JACK.  Switchcraft #11 jack preinstalled with lock washer and trim washer. Outside diameter 2 inches (51mm). Minor assembly required. Designed to fit flush against a 1 1/8" (29mm) cabinet hole. Easy to install - drill 1 1/8" hole in cabinet, attach speaker wiring to jack and speaker, attach plate to cabinet.
Part #JPC-180
$4.95


Click on photo for
larger view
Fender™ STYLE SPEAKER CABINET JACK PLATE ASSEMBLY WITH JACK
As used on blackface and silverface speaker cabinet (Bassman, Bandmaster, Showman, etc).    Complete with long-bushing Switchcraft jack with nut and trim washer, and two
nickel jack ferrules for the inside and outside of the cabinet back.  For wood panels between 3/8 inch and 1/2 inch thick.   Keep your vintage Fender™ cabinet looking original!
Part #JPC-577
$16.95



Click on photo for
 larger view
Revisit™ F1 to F2 Faston Push-on Terminal Adapter
Used to change the size of speaker terminals from .187" (3/16") to .250" (1/4").  Also used to change the size of some PC board connectors.  Female .187" to male .250"
Part #F1F2
$1.89
(Set of 2 Adapters)




Click on photo for
 larger view
Revisit™ F2 to F1 Faston Push-on Terminal Adapters
Used to change the size of speaker terminals from .250" (1/4") to .187" (3/16").  Also used to change the size of some PC board connectors.   Female .250" to male .187"
Part #F2F1
$1.89
(Set of 2 Adapters)




Click on photo for
 larger view
Revisit™ Fender™ STYLE "SPIDER" DISTRIBUTION CONNECTOR FOR BLACKFACE SPIDER SPEAKER HARNESSES
Replacement vintage style Spider distribution board, used to tie together speaker wires in some vintage blackface Fender™ amps, particularly the vintage blackface Super Reverb.   Also found in some blackface 2-speaker amps, including the Pro Reverb, Twin Reverb, Vibrolux Reverb, and Vibroverb amplifiers from the 60s.

Part #FS
J-428
$6.50



Click on photo for
 larger view
Revisit™ SPEAKER HARNESS
Replacement right-angle plug with 34" cable and 3/16" fast-on connectors.    Used to replace speaker cable in most combo amplifiers where the speakers are connected to the amplifier chassis via a 1/4" jack and plug.   18ga black zip cord, right-angle plug and fast-on connectors for attachment to one speaker.
Part #SCH-280
$6.99


Click on photo for
 larger view

SPEAKER JUMPER CABLE
polyvinyl insulated silver plated copper speaker wire, 18 gauge, twisted pair, black and white.   Terminated at each end in standard 3/16" speaker fast-on connectors.   Great for connecting speakers in parallel in 2x12 or 4x12 cabinets.   24 inches (61 cm) long.   Made in USA.
Part #SJ-150

$5.99



BUILD YOUR OWN Speaker Harness for Combo Amps:

Choose the SJ-150 cable (above) along with the P-287 Plug (below).   Cut off the cable's fast-on connectors on ONE end of the cable.  Strip both conductors of cable back about 1/4" on that end.  Solder that end to the P-287 plug (black to the sleeve, white to the tip.).   This will give you a 24 inch speaker harness.   Note:  Cable-building experience strongly recommended.   Soldering equipment needed.

Total cost for materials will be $5.99 + $3.95 = $9.94.


Click on photo for
 larger view
PLUG, 1/4", MONO, RIGHT ANGLE, SOLDER TERMINALS, STRAIN RELIEF
Similar to the Switchcraft 226 right-angle plug.   Nickel plated copper alloy.   2-conductor right-angle phone plug, solder terminals.
Part #P-287
$3.95


Hard to Find Knobs


KNOB, Revisit™ Marshall™, PUSH ON D-SHAFT (Read applicable models!)

Standard Revisit™ Marshall style control knob, push-on type, for D-Shaft pots used in the following Marshall amp models:   DSL-201 combo, DSL-401 combo, DSL-40C combo, TSL-122 combo, TSL-601 combo, TSL-602 combo, JVM205H head, JVM210H head, JVM410H head, VS15 combo, VS30R  combo, VS65R combo, VS100R combo, VS100RH head, VS102R combo, VS230 combo, VS265 combo, AVT20 combo, AVT50 combo, AVT50H head, AVT100 combo, AVT150 combo, AVT150H head, AVT275 combo, AS100D combo, MA50C Combo, MA100C Combo, MG10, MG15, MG15FX, MG30FX, MG50FX, MG100FX, MG100HFX, MG102FX.   For the similar knob used on DSL and TSL JCM2000 series heads, MA series heads, and JVM series combos see the MKDS knob elsewhere on this page.   The R-MKDS-C Knob is constructed so that the pointer on the front of the knob is 180 degrees away from the flat spot in the shaft hole on the back side of the knob.
Part #R-MKDS-C

$2.99
(Single Knob)


SET SCREW

Click on photo for
larger view
KNOB, Revisit™ Quality REPRODUCTION of Marshall™, Black Top, Set Screw.
Revisit™ aftermarket Marshall™ control knob, with black metal cap, brass insert and set screw.  Fits 1/4" shaft.  Similar to original Marshall™ set-screw knob used on the early Marshall models until the early 1980s.   Shiny ridged black metal top on black plastic body.
Part #MKBSS
$1.99
(Single Knob)


PUSH-ON

Click on photo for
larger view
KNOB, Revisit™ Quality REPRODUCTION of Marshall™, Black Top, Push-On.
Revisit™ aftermarket Marshall™ control knob, with black metal cap, push-on for knurled shaft pots, used on most Marshall models from the late 1980s to the present.  Similar to original Marshall™ push-on knobs.   Shiny ridged black metal top on black plastic body.
Part #MKBPT
$1.99
(Single Knob)



Click on photo for
larger view
KNOB KIT, Fender™, Black with Pointer with bushing.   Replacement for Fender™ Blues Junior III.  Upgrade knob for original Blues Junior, Bronco, and Pro Junior.  Includes the Fender™ style 36620000 Black Chicken-Head knob and the 0033206049 bushing.  Knob is a 1/4" set-screw type.  This combination replaces the original 041710 push-on knob used on the original Blues Junior, Bronco and Pro Junior - the 041710 knob is now discontinued.
Part #K-710
$2.95


Click on photo for
larger view
KNOB, Electro-Harmonix™, Black with Cross Slot and White Dot Indicator  1/4" Shaft, with set screw.    General control knob, fits all current EH pedals, plus a variety of other applications.    0.80" wide at the base, 0.62" wide at the top, 0.61" tall.
Part #K-344
$1.99


Click on photo for
larger view
KNOB, Electro-Harmonix™, Large Black with White Line Indicator  Push on for 1/4" Knurled Shaft.   Used on many current EH pedals, plus a variety of other applications.    1.00" wide, 0.62" tall.
Part #K-346
$1.99


Click on photo for
larger view
KNOB, Electro-Harmonix™, Small Black with White Line Indicator  Push on for 1/4" Knurled Shaft.   Used on many current EH pedals, plus a variety of other applications.    0.66" wide, 0.53" tall.
Part #K-347
$1.99


Click on photo for
larger view
BUTTON, for push switch, Black.  This black button pushes onto the switch stem.   Used on channel control and drive boost switches on the front panel of the Fender™ Hot Rod Deluxe, Hot Rod Deville, Blues Deluxe, Blues Deville, Blues Junior. Original Fender™ part number 0028104000.   Button only - not the complete switch.   For the switch, see SW-028.  Fits switches with actuator shaft of 2.7mm square.
Part #K-058
$2.95


Click on photo for
larger view
BUTTON, for push switch, White.  This white button pushes onto the switch stem.   Used on channel control and drive boost switches on the front panel of the Fender™ Hot Rod Deluxe III, Hot Rod Deville III, and on the FAT switch of the Blues Junior III and Blues Junior IV.  Used on the channel selection switch of the Super champ X2 and Super Champ XD.  Original Fender™ part number 0048451000.   Button only - not the complete switch.   For the switch, see SW-028.   Fits switches with actuator shaft of 2.7mm square.
Part #K-048
$2.95


Click on photo for
larger view
BUTTON, for push switch, Red.  This red button pushes onto the switch stem.   Used on the front panel buttons of the Eden TN501 Bass Amp.   Button only - not the complete switch.      Fits switches with actuator shaft of 2.7mm square.
Part #K-068
$2.95


Click on photo for
larger view
L-PAD FACE PLATE AND KNOB, for 3/8" diameter threaded bushing found on most L-Pad Level controls.    Face plate AND knob only!  L-Pad ordered separately.

Fits many bass cabinets including the SWR Goliath, Marcus Miller Golight 410, Workingman 8x10, Working Pro 2x10, Ampeg PN-210HLF, PN-410HLF, SVT-410HLF, SVT-610HLF, SVT-810SPC, BXT210M, BXT410HL4, PR-1528HE, PN-115HLF, PR-810H, PB-250, the Kustom G410H, the Engl B115 as well as many others.   This is the face plate and knob only - L-PAD itself ordered separately.   Raised lettering in charcoal gray instead of white.   3 1/8 inches in diameter, 7/8 inch depth into cabinet.   Requires 2 inch diameter hole for mounting.  Screws not included.
Part #LFP-380

$4.50


Hard to Find Potentiometers


Click on photo for
larger view
POT, 22K-25K HORIZONTAL LINEAR BIAS ADJUST POT FOR Marshall™
Mounted on the main PC board or turret boards - used to set the bias on the output tubes.  This style has 3 pins for mounting - see photo.  Common failure item.   This is an alternate horizontal style - particularly useful in modifications, kit builds, etc.   Body of pot is 15mm (about 5/8") in diameter.
Part #P-BPM-22KL-H
$2.95


Click on photo for
larger view
POT, JCM2000 SERIES 22K LINEAR BIAS ADJUST POT FOR Marshall™
Marshall part number POTTR22K, used as bias adjust pots.   Found in the DSL-50, DSL-100, TSL-100, TSL-122 models in the JCM2000.    Each amplifier uses two bias pots.
Part #POT-TR22K
$3.50

New Style:

Old Style:

Click on photo for
larger view
POT - Fender™ BIAS POT 25K LINEAR, SCREW
New style Fender 25K linear bias potentiometer.  Used in the reissue 59 Bassman, reissue Hot Rod Deluxe/Deville, reissue Blues Deluxe/Deville.  Fender™ part # 0027873000.   This pot is a drop-in replacement for the original discontinued "blue" bias pot.

Part #FBP-AP25KL
$2.95


Click on photo for
larger view
POT - SNAP-IN, 50K AUDIO, Used In Princeton 65, 65 DSP, and 650 (Normal Volume), Princeton 112 & 112 Plus (Clean Treble & Bass), KXR 60 (2 Volumes), KXR100 (3 Volumes) Frontman 15G & 25R (Normal Volume), Champion 30 & 30 DSP (Volume) Bullet Reverb (Volume) And Similar Amps. Original Fender™ Part Number 00373230049.
Part #FPBJ-50KA
$11.95

Quantity:



Click on photo for
larger view
POT - Revisit™, 24MM, SOLID SHAFT
24 mm carbon composition, 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 3/8" diameter bushing, solder lugs. For hand-wired American made amplifiers such as vintage Fender™ and others.   For a downloadable pot cross-reference for Fender brownface models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-XX
Starting at
$2.95
Select Option:

Quantity:



Click on photo for
larger view
POT - Revisit™, 24MM, SOLID SHAFT, 3M & 10M REVERSE AUDIO
24 mm carbon composition, 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 8mm diameter bushing, solder lugs. For hand-wired American made amplifiers such as vintage Fender™ and others.   For a downloadable pot cross-reference for Fender brownface models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-XX
Starting at
$3.95
Select Option:

Quantity:



Click on photo for
larger view
POT -  Revisit™ , 350K AUDIO WITH 70K TAP, 9MM BUSHING, FENDER™ BROWNFACE SERIES TREBLE POT
16mm carbon composition. 300° rotation. 1/2 watt, 500VDC rating. 1/4" diameter shaft, 9mm" bushing, solder lugs. Special manufacture, to replace the treble pots on certain Fender™ 1961-1963 Brownface models, such as Bassman 6G6, Concert 6G12A, Pro 6G5A, Showman 6G14, Super 6G4A, Tremolux 6G9, Vibrolux 6G11, and the Vibroverb 6G16.   For a downloadable pot cross-reference for Fender brownface models, click here.
INCLUDES NUT & WASHER
Part #P-FBF-350KA-70KT
$4.95


Click on photo for
larger view
POT, PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SPLIT KNURLED SHAFT (10mm LONG).
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm, and shaft is knurled for push-on knobs.   Click on photo for more detail. (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VM16M-XX
$3.95

Select Option 1:


Quantity:


Click on photos for
larger view

BRASS POT ADAPTER SLEEVE
Do you want to put a 1/4" set-screw knob on your 1/4" knurled shaft potentiometer?  Do you need to eliminate the off-center problem when using a 1/4" set screw knob on a 6mm shaft pot?

Just slip one of our solid brass pot adapter sleeves onto any 1/4" knurled pot shaft or 6mm pot shaft to ensure a snug and secure fit for a 1/4" (6.35mm) smooth shaft knob. We have tested this adapter extensively, and it really does work great!

Note:  Will NOT work with 3/16" knurled shaft pots.  Those smaller knurled shafts are typically found in Crate and Peavey amps.  Not recommended for D-shaft type shafts.

Part #PAS-635

$0.95


Click on photo for
larger view
POT, PC MOUNT, ALPHA 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, D-SHAFT.    Hard-to-find D-Shaft type.  Available values:  A5K, B5K, B10K, A20K, B20K, A50K, B50K, A100K, B10A500K, B500K.  For knobs designed for D-Shaft pots.   Click on photo for more detail.     Download cross-reference guide for these pots.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-VDS16-XX
$3.95

Select Option 1:


Quantity:


Click on photo for
larger view
POT, DUAL 10K OHM LINEAR, (B10KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm.   Click on photo for more detail.  Replaces Marshall™ part number POTP-90036.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V10KBX2-M16M
$6.95

Quantity:


Click on photo for
larger view
POT, DUAL 100K OHM LINEAR, (B100KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm.   Click on photo for more detail.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V100KBX2-M16M
$6.95

Quantity:


Click on photo for
larger view
POT, DUAL 200K OHM AUDIO, (A200KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.  Shaft length is 10mm.   Click on photo for more detail.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V200KAX2-M16M
$6.95

Quantity:


Click on photo for
larger view
POT, DUAL 500K OHM AUDIO, (A500KX2), PC MOUNT, 16mm DIAMETER BODY, 7mm DIAMETER THREADED BUSHING, MEDIUM SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly sm4aller than a dime.  Shaft length is 10mm.   Click on photo for more detail.
INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V500KAX2-M16M
$6.95

Quantity:


Click on photo for
larger view
POT, 1 MEG OHM X2 LINEAR DUAL, (B1M), PC MOUNT, 6 MOUNTING PINS, 16mm DIAMETER BODY, 7mm DIAMETER  THREADED BUSHING, MEDIUM SHAFT.
Used in many amp models with PC board circuitry.   Diameter of the body of the pot is slightly smaller than a dime.
Shaft length is 10mm.   Exact replacement for the volume control pots (both channels) on the Orange Dual Terror, AD30, and AD140   INCLUDES NUT & WASHER  (For spare or replacement nut, order the PNW-16 nut and washer set found here).
Part #P-V1MBX2-M16M
Currently unavailable

$6.95

Quantity:


Click on photo for
larger view
POT, 16mm PC MOUNT, SMOOTH SHAFT, WITH DPDT PULL SWITCH, AUDIO TAPER, 1 MEG OHM.  These hard-to-find solid shaft w/ DPDT switch A1M pots are perfect for building push-pull switching into your amp. These pots easily replace the standard volume controls for many amplifiers. These pots have PC pins, but wires are easily soldered to these pins without issue. You can use these for: push-pull boosts, channel switching, contour selections, tone control options, feedback in-out, f/x loop in-out, etc.  The choices of potential mods are only limited by your imagination.    They are also OEM replacements for several brands of amps including many Fender models from the 1990s, such as the 93 Concert and others.    Available only in 1 Meg Audio Taper.
Part #P-V16M-PSPC-A1M
$6.95


Click on photo for
larger view
PRO AUDIO POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND Others.  9mm SNAP-IN BODY.  SHAFT IS "D-SHAFT" TYPE.   TOTAL SHAFT LENGTH IS 23mm.  The "D" SHAPED SECTION OF the
 SHAFT IS 12mm.
BODY SIZE IMPEDANCE TAPER CENTER DETENT
9mm 10K LINEAR YES

Part #P3A1-10KB-CD

$3.95


Click on photo for
larger view
PRO AUDIO POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND Othe
RS.  9mm SNAP-IN BODY.  SHAFT IS "D-SHAFT" TYPE.   TOTAL SHAFT LENGTH IS 23mm
.  The
 "D" SHAPED SECTION OF the
 SHAFT IS 12mm.
BODY SIZE IMPEDANCE TAPER CENTER DETENT
9mm 10K AUDIO YES

Part #P3B2-10KA-CD

$3.95


Click on photo for
larger view
PRO AUDIO POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND Othe
RS.  9mm SNAP-IN BODY.  SHAFT IS "D-SHAFT" TYPE.   TOTAL SHAFT LENGTH IS 23mm
.  The
 "D" SHAPED SECTION OF the
 SHAFT IS 12mm.
BODY SIZE IMPEDANCE TAPER CENTER DETENT
9mm 50K LINEAR NO

Part #P3C3-50KB-NCD

$3.95


Click on photo for
larger view
DUAL PRO AUDIO POT - USED IN MANY BRANDS OF MIXING CONSOLES, INCLUDING BEHRINGER, MACKIE, PHONIC, YAMAHA, CRATE AND OTHERS.  12mm SNAP-IN BODY.  SHAFT IS "D-SHAFT" TYPE.   TOTAL SHAFT LENGTH IS 23mm.  The
 "D" SHAPED SECTION OF the
 SHAFT IS 12mm.
BODY SIZE IMPEDANCE TAPER CENTER DETENT
12mm 10K LINEAR YES

Part #P2A5-10KB-CD

$5.95


Hard to Find Switches


Click on photo for
larger view
ORIGINAL Marshall™,  Blackstar™, and Dunlop™ PUSH SWITCH
DPDT Mini Short-Throw Push Switch.  Has 12 electrical terminals on bottom of switch (4PDT).  Used for Tone Shift and Clean/Crunch on the TSL-100, TSL-122, DSL-50 and DSL-100.   Also found in the AVT100, AVT150, AVT275, TSL60, TSL601, TSL602, DSL40C.  Also found in other brands of amplifiers.  Found in some Dunlop Wah pedals as the kick switch.  Actuator shaft is 3.3mm square.  Original Marshall™ part number SWTP00039.  Replaces the Blackstar™ MCSWH02032 Channel Select switch in the HT1-R, the S145, and other models.
Part #SW-233
$6.95



REVISIT™ CHANNEL SELECT TOGGLE SWITCH FOR Peavey
2P3TSP Toggle Switch used for the front panel channel select switch on the Triple XXX and Triple XXX II amp series.  Used as the resonance switch in the Ultra 112, Ultra 212, Ultra 410 combos and Ultra Plus head.  Replaces original Peavey part number 71322368 or 31322368.
Part #SW-236A
$4.95




Click on photo for
 larger view

REVISIT™ 3-POSITION SLIDE SWITCH FOR Peavey
2P3T Slide Switch used for Impedance, Power Level, or Damping on the back panel of several Peavey amps.  Found in the Peavey Windsor Studio, 6505 112 Combo, Joe Satriani JSX, ValveKing 212 Combo, ValveKing Head, 5150-II, and XXL models.  Replaces original Peavey part number 71322328 or 31322328.   Mounting hardware included
Part #SW-313
$9.95


Click on photo for
larger view
KICK SWITCH, DUNLOP, USED ON THE ROTOVIBE DUNLOP PEDALS.      Used in the Dunlop Rotovibe pedal.    Has 6 pins for soldering to a PC board in the pedal, circuit is a DPDT (double pole, double throw)

Part #D-ECB-234
$12.95


Click on photo for
larger view
KICK SWITCH, DUNLOP, USED ON VARIOUS DUNLOP PEDALS.   ORIGINAL DUNLOP PART NUMBER ECB233.   Used in a variety of specialized Dunlop pedals.    Has 12 pins for soldering to a PC board in the pedal, circuit is a 4PDT (4 pole, double throw)

Part #D-ECB-233
$16.95


Click on photo for
 larger view
TACT SWITCH, PC MOUNT
Fits the following:  Boss ME-5.  Casio CZ-1000, CZ-3000, CZ-5000.  Ibanez TS9 Tube Screamer.  Kawai K3, Korg DW Series, EX-8000, KPR-77, Poly-61.  Kurzweil K1000, K1200, K2000.  Roland Axis-1, FC-100, GR-700, JX-8P, PG-800, TB-303, TR-606.  Yamaha DX7, DX9, KX88.  Oberheim Matrix 6/6R/1000.  Sequential Circuits Multi-Trak.   Boss part # 13129715.  Korg # 37505000.  Roland # 13129715.  Yamaha # KA905510.  12mm x 12mm (about 1/2" x 1/2").   Height of switch from under the base to the top of the plunger is about 7mm.   Data Sheet here.
Part #FS-621
$0.99


Click on photo for
larger view
ROCKER SWITCH, MESA/BOOGIE, BASS 400+
1/4" push-on terminals.   Made for 1.07" H x 0.88" W mounting hole.   Rated 20A @ 125VAC.   15A @ 250VAC.    Used for Power or Standby on the Bass 400+.  Original Mesa/Boogie part number 600505.

Part #SW-547
$7.99


Click on photo for
larger view
ROCKER SWITCH, LARGE BLACK.
Has 4 electrical terminals on back of switch (DPST).   Non-lighted.  1/4" push-on terminals, or solder directly to terminals.   Rated 20A @ 125VAC, 16A @ 250VAC.   Needs rectangular cutout of 0.82" wide x 1.15" tall (21mm x 29mm)
Part #SW-5072
$3.95


Click on photo for
larger view
ROCKER SWITCH, LIGHTED POWER, USED IN Fender™ BASSMAN 100, 150 AND 250.  Has 4 electrical terminals on back of switch.   1/4" push-on terminals, or solder directly to terminals.   Rated 20A @ 120VAC.  Needs rectangular cutout of 0.86" wide x 1.18" tall (22mm x 30mm).   Replacement for the discontinued Fender part numbers 0064049000 and 0064050000, used in the Bassman 250, Bassman 150 and the Bassman 100 (the version which has a white control panel only).  Internal neon lamp powered by 120VAC.  Not for use on 230VAC.
Part #SW-493F
$11.95


Click on photo for
larger view
ROCKER SWITCH, LIGHTED POWER, ORIGINAL Marshall™ , FOUND IN Marshall™ JCM900 SERIES
For JCM900 series..  For most JCM800 models, see the SW-492 below.   For the JCM2000 and JVM series, see the SW-493.   Has 4 electrical terminals on back of switch.   1/4" push-on terminals, or solder directly to terminals.   Rated 22A @ 125VAC, 16A @ 250VAC. 15/16" x 1 1/16" x 1" deep.  Internal neon lamp powered by 125VAC.  Does your old Marshall™ power switch from the JCM800 era have five terminals?   See the SW-492 below, instead.
Part #SW-491
$12.95


Click on photo for
larger view
ROCKER SWITCH, LIGHTED POWER, Revisit™ REISSUE, FOUND IN Marshall™ JCM800 and LATER JMP SERIES - 5 TERMINALS
Most JCM800 and late JMP series power switches have 5 terminals on the back of the switch.  These switches were originally made by Arrow for Marshall, but have been unavailable for many years.  For those switches with 5 terminals, this Revisit™ switch is the correct replacement.   The terminal locations are a mirror image of the original, but we have a cheat sheet to show you how to easily wire the new switch.   Has 5 electrical terminals on back of switch.   1/4" push-on terminals, or solder directly to terminals.   Rated 20A @ 125VAC, 16A @ 250VAC. 15/16" x 1 1/16" x 1" deep.  Internal neon lamp powered by 125VAC.   For newer JCM900 and JCM2000 series with 4 terminals on the power switch, see the SW-491 switch above.
Part #SW-492
$18.95


Click on photo for
larger view
ROCKER SWITCH, LIGHTED POWER, ORIGINAL Marshall™ , FOUND IN Marshall™ JVM, DSL, and JCM2000 SERIES   Used in the later versions of the TSL100, TSL122, DSL100, DSL50, DSL40, later versions of the DSL201 and DSL401, JVM410H, JVM215C, etc.   Also found in the DSL-5, DSL-15, and the Mode 4 MF-350.  Has 4 electrical terminals on back of switch.   1/4" push-on terminals.   Rated 16A.  For use on 125VAC or 250VAC.  15/16" x 1 1/16" x 1" deep.  Internal neon lamp. Original Marshall part number B8C75184.
Part #SW-493
$11.95


Click on photo for
larger view
LARGE ROCKER SWITCH, LIGHTED POWER, RED.
Has 4 electrical terminals on back of switch (DPST).   1/4" push-on terminals, or solder directly to terminals.   Rated 20A @ 125VAC, 16A @ 250VAC.   Needs rectangular cutout of 0.82" wide x 1.15" tall (21mm x 29mm).   Internal neon lamp powered by either 125VAC or 250VAC.  Used on many Engl Amp models.   Replaces the # 700048-3159 power switch in most models of Furman power conditioners.  Replaces American DJ part # Z-PDP/900-PS-N for use in the American DJ PC-100A PC-4 power centers.
Part #SW-5075
$4.95


Click on photo for
larger view
LARGE ROCKER SWITCH, LIGHTED POWER, AMBER.
Has 4 electrical terminals on back of switch (DPST).   1/4" push-on terminals, or solder directly to terminals.   Rated 20A @ 125VAC, 16A @ 250VAC.   Needs rectangular cutout of 0.82" wide x 1.15" tall (21mm x 29mm).   Internal neon lamp powered by either 125VAC or 250VAC.  Used on many Engl Amp models.
Part #SW-5076
$4.95


Click on photo for
larger view
LARGE ROCKER SWITCH, LIGHTED POWER, GREEN.
Has 4 electrical terminals on back of switch (DPST).   1/4" push-on terminals, or solder directly to terminals.   Rated 20A @ 125VAC, 16A @ 250VAC.   Needs rectangular cutout of 0.82" wide x 1.15" tall (21mm x 29mm).   Internal neon lamp powered by either 125VAC or 250VAC.
Part #SW-5077
$4.95


Click on photo for
larger view
ROCKER SWITCH, LIGHTED POWER, ORIGINAL Marshall™ , FOUND IN Marshall™ JVM, DSL, and JCM2000 SERIES   Used in the later versions of the TSL100, TSL122, DSL100, DSL50, DSL40, later versions of the DSL201 and DSL401, JVM410H, JVM215C, etc.     Also found in the DSL-5, DSL-15, and the Mode 4 MF-350.  Has 4 electrical terminals on back of switch.   1/4" push-on terminals.   Rated 16A.  For use on 125VAC or 250VAC.  15/16" x 1 1/16" x 1" deep.  Internal neon lamp. Original Marshall part number B8C75184.
Part #SW-493C
$11.95


Click on photo for
larger view
ROCKER SWITCH, STANDBY, ORIGINAL Marshall™ , FOUND IN Marshall™ JVM, JCM2000, DSL, TSL SERIES  Used in the later versions of the TSL100, TSL122, DSL100, DSL50, DSL40, later versions of the DSL201 and DSL401, JVM410H, JVM215C, etc.   Has 4 electrical terminals on back of switch.   1/4" push-on terminals.   Rated 16A.   15/16" x 1 1/16" x 1" deep.  Original Marshall part number B8B64025B.   (For the similar standby switch used in previous model series such as the JCM-900, early versions of the TSL and DSL series, see the SW-490 switch.)
Part #SW-490C
$9.95


Click on photo for
larger view
ROCKER SWITCH, HI POWER/LOW POWER + STANDBY, ORIGINAL Marshall. FOUND IN Marshall™ SC20C, SC20H, 2525H, 2525C, DSL100HR, DSL40CR.    Has 6 electrical terminals on back of switch.  MATTE FINISH (NOT SHINY)  1/4" push-on terminals.  Now in stock and ready to rock!  Rated 16A.   15/16" x 1 1/16" x 1" deep.   Only used in the SC20C, SC20H, 2525H, 2525C, DSL100HR and DSL40CR.
Part #SW-496
$9.95



Click on photo for
larger view
MARSHALL POWER SWITCH FOR VALVESTATE SERIES II AMPS
Power switch for the second ValveState series, including models VS15, VS30R, VS65R, VS100R, VS100RH, VS102R, VS230, VS232 AND VS265. Also for the Bass State 150. Marshall reference numbers S540, S1603, and SW1008.   Switch button not included.   The button for this switch is our stock number K-108.   NOTE:  This switch does not have the 4 pin connections on the bottom, so it is necessary to run wires from the 4 terminals on top (marked in the photo with yellow arrows) to the PC board.   It does have the anchoring pins on the front bracket which are soldered to the PC board.
Part #SW-160
$8.95


Click on photo for
larger view
MARSHALL POWER SWITCH BUTTON FOR VALVESTATE SERIES II AMPS
Power switch button for the second ValveState series, including models VS15, VS30R, VS65R, VS100R, VS100RH, VS102R, VS230, VS232 AND VS265.  Also for the Bass State 150.  Marshall reference numbers SW1008KNOPF.  Fits the SW-160 power switch.
Part #K-108
$2.50


Click on photo for
larger view
MINI ROCKER SWITCH  - MARKED 0-1 FOR ON/OFF
DPST Mini Rocker Switch.  Has 4 electrical terminals on back of switch.   Face of switch marked with "0" and "1" for on/off.   0.5" x 0.75" mounting hole diameter, rated for applications from 8 to 10 amps at 125VAC, DPST with .187" tabs.    Replaces Fender part numbers 025935 and 003928700, used in the following Fender amps:   Bullet Reverb, Bullet 15 DSP, Bassman 25, Roc Pro 700, Roc Pro 1000, Rumble 15, Rumble 25, Rumble 30, Rumble 40, Rumble 75, Rumble 100, Rumble 150, Rumble 350, Rumble 500, Performer 1000, Princeton 112, Princeton 112 Plus, Princeton Chorus, Princeton Chorus DSP, Princeton 650, Princeton 65 DSP, KXR60, KXR100, Frontman 25R, Frontman 15G, Deluxe 112, Deluxe 112 Plus, Deluxe 90, Deluxe 90 DSP, Champion 20, Champion 30, Champion 30 DSP, Champion 40, Champion 100, Acoustasonic 30, Acoustasonic Jr, Acoustasonic Jr DSP, Mustang I, Mustang II, Mustang III, Mustang IV, Mustang V, Super Champ XD.
Part #SW-287
$3.95


Click on photo for
larger view
ROCKER SWITCH, FENDER, EXTRA-LARGE BLACK, DPDT 6 TERMINAL, OUTPUT HI-LO
Extra large Fender rocker switch - has 6 electrical terminals on back of switch (DPDT)   1/4" push-on terminals.   Made for 1.07" H x 0.88" W mounting hole.   Rated 20A @ 125VAC.   15A @ 250VAC.   Commonly found as the Hi-Lo Output Switch on domestic (USA) versions of Fender™ amps from the 80s, including the red knob "The Twin" (known as the "Evil" Twin), and red knob Dual Showman.   Used only for the Hi-Lo Output Switch.  Original Fender™ part number  026480
Part #SW-518
$9.99


Click on photo for
larger view
ROCKER SWITCH, FENDER, EXTRA-LARGE BLACK
Extra large Fender rocker switch - has 4 electrical terminals on back of switch (DPST).   1/4" push-on terminals.   Made for 1.07" H x 0.88" W mounting hole.   Rated 20A @ 125VAC.   15A @ 250VAC.   Commonly found on domestic (USA) versions of Fender™ amps from the 80s through today - including the Pro 185, "Evil" Twin, Super 60, London 185, Super 112, Super 210, Power Chorus, Red Knob Dual Showman, Stage 100, Stage 185, Stage 112SE, Ultimate Chorus, Cyber Champ, Cyber Deluxe, Cyber Twin, SFX Satellite, Bassman 1200, Acoustasonic SFX,  Metalhead MH-500, MB-1200, Steel King, Bassman 100 (PR420), Bassman 200 (PR419), Bassman 400 (PR412), and others.   Used for Power, or Standby.  Original Fender™ part numbers 039236, 026479.   For replacing multiple switches, see multipack below.
Part #SW-517
$7.99


Click on photo for
larger view
ROCKER SWITCH, FENDER, EXTRA-LARGE WIDE BLACK, SET OF 2 SWITCHES
Save with our MultiPack!  Extra large Fender rocker switch - has 4 electrical terminals on back of switch (DPST).   1/4" push-on terminals.   Made for 1.07" H x 0.88" W mounting hole.   Rated 20A @ 125VAC.   15A @ 250VAC.   Commonly found on domestic (USA) versions of Fender™ amps from the 80s through today - including the Pro 185, "Evil" Twin, Super 60, London 185, Super 112, Super 210, Power Chorus, Red Knob Dual Showman, Stage 100, Stage 185, Stage 112SE, Ultimate Chorus, Cyber Champ, Cyber Deluxe, Cyber Twin, SFX Satellite, Bassman 1200, Acoustasonic SFX,  Metalhead MH-500, MB-1200, Steel King, Bassman 100 (PR420), Bassman 200 (PR419), Bassman 400 (PR412), and others.   Used for Power, and Standby.    Original Fender™ part numbers 039236 and 026479. This kit of two switches lets you replace both power and standby switches on amps so equipped.
Part #SW-517X2
$13.99
(for a set of two switches)



Click on photo for
larger view
MINI ROCKER SWITCH, PEAVEY STYLE
Carling miniature rocker switch, SPST with .187" tabs (Peavey Style). 0.51" x 0.76" mounting hole diameter, 5A, 125 VAC
Part #SW-560
$3.95


Click on photo for
larger view
MINI ROCKER SWITCH, PEAVEY
Carling miniature rocker switch, SPST with .187" tabs (Peavey Style). 1/2" x 3/4" mounting hole diameter, 5A, 125 VAC.   Used in the Peavey Classic VTX amp, VTX Series MX, Heritage VTX from the 1980s.
Part #SW-507
$3.95


Click on photo for
larger view
MINI ROCKER SWITCH  - ANCHOR AUDIO, MACKIE, KRK, PRESONUS
DPDT Mini Rocker Switch.  Has 4 electrical terminals on back of switch.   Face of switch marked with "0" and "1" for on/off.   0.5" x 0.75" mounting hole diameter, rated for applications from 8 to 10 amps at 125VAC, DPST with .187" tabs.  Replaces Anchor Audio part number 499-0061-000 as found in several Anchor Audio products.   Replaces Mackie part numbers 0030476 and 0029143, as found in the Mackie TH-12A and VLZ3.   Replaces KRK SWTK00020 as found in the KRK models 10S and 12S.   Replaces Presonus part number 340-RL3-4A, as found in the Presonus Studio Live.
Part #SW-388
$3.95


Click on photo for
larger view
ROCKER SWITCH, HARTKE™, OTHERS, LARGE WIDE BLACK
Has 4 electrical terminals on back of switch (DPST).   Termination is 0.187" (4.8mm) push-on terminals.   Made for 0.73" H x 0.85" W mounting hole (19.0mm X 22mm).   Rated 15A @ 125VAC.    Commonly found on Hartke amp models HA1400, HA2500, HA3500C, HA4000, HA5000, HA5500, HA7000 and other models.  Hartke part number 8-S310BBIWQ420.   May also be used for the discontinued Marshall  SWTM0030 power switch found on the Marshall AVT50, but note that this switch is not lighted like the original Marshall switch.
Part #SW-1802
$6.95


Click on photo for
larger view
ROCKER SWITCH, MACKIE™, LARGE WIDE BLACK
Has 4 electrical terminals on back of switch (DPST).   Termination is 0.187" (4.8m) push-on terminals.   Made for 0.73" H x 0.87" W mounting hole (19.0mm X 22mm.)  Rated 15A @ 125VAC.  Mackie™ part number 0033500.   Power switch for Mackie SR1530 and SWA1501 speaker/subwoofer.
Part #SW-335
$6.95


Click on photo for
larger view
EDEN™ MINI ROCKER SWITCH FOR EDEN™ WT SERIES - LIGHTED
The original Eden power switches are no longer available.   This DPDT Mini Rocker Switch with internal light has been modified so that it can serve as a replacement for the original 3-terminal switches.  Red lighted version, for most earlier versions of the Eden World Tour Series, including the Traveler models.   WT300, WT330, WT400, WT402, WT405, WT500, WT550, WT800.   New version has the switch marked with "1" and "0" to indicate on/off, as per new electrical code requirements.  0.51" x 0.76" mounting hole diameter, 10A-125 VAC, 6A-250VAC, with .187" tabs.
Part #SW-305L
$4.95


Click on photo for
larger view
ROCKER SWITCH, MACKIE™, LARGE WIDE BLACK
Has 4 electrical terminals on back of switch (DPST).   Termination is 0.187" (4.8m) push-on terminals.   Made for 0.73" H x 0.87" W mounting hole (19.0mm X 22mm.)  Rated 15A @ 125VAC.  Mackie™ part number 0033500.   Power switch for Mackie SR1530 and SWA1501 speaker/subwoofer.
Part #SW-336
$4.95


Click on photo for
larger view
ORIGINAL Marshall™ MINI ROCKER SWITCH FOR Marshall™ MG SERIES - MARKED 0-1 FOR ON/OFF
DPDT Mini Rocker Switch.  Has 4 electrical terminals on back of switch.   Face of switch marked with "0" and "1" for on/off.   Original Marshall™  replacement.   0.51" x 0.76" mounting hole diameter, 10A-125 VAC, 6A-250VAC, DPST with .187" tabs.
Part #SW-489
$3.95


Click on photo for
larger view
ORIGINAL Marshall™ MINI ROCKER SWITCH FOR Marshall™ MG SERIES - LIGHTED
DPDT Mini Rocker Switch with internal light.  Has 4 electrical terminals on back of switch.   Red lighted version - easier to see than the tiny LED Marshall™ originally provided as a power-on light.    0.51" x 0.76" mounting hole diameter, 10A-125 VAC, 6A-250VAC, DPST with .187" tabs.    To ensure that the light works properly, make sure that the terminals directly behind the "1" on the rocker portion feed the power transformer, while the terminals behind the "0" are connected to the incoming power source.
Part #SW-489L
$4.95


Click on photo for
larger view
Marshall™ Impedance/Mode Selector switch.  Correct replacement for PCB mount impedance and high-low mode switch found on the back of many Marshall™ JCM900 and JCM2000 series amplifiers.  Also used as The impedance switch in Marshall™ 4x12 Cabinets (such as the 1960 series cabinets).    Found in other British-made amplifiers and cabinets as well.    Marshall™ part number S208.
Part #SW-4500
$13.95


Click on photo for
larger view
FENDER™ 59 BASSMAN REISSUE STANDBY SWITCH   CarlingSPST toggle switch with 1/4" push-on connectors.   Original Fender part number 0036572000.   Mounting nuts are included.
Part #SW-514
$9.95


Click on photo for
larger view
SWITCH, TOGGLE, DPST - Used in Marshall, Orange and Trace Elliot, Hiwatt and Vox. Rated at 15A, 125/250VAC.  Two position (on/off), double pole (DPST), 4 terminals.  Fits 1/2" chassis hole.   Solder terminals or push-on terminals.   Found in Marshall Reissue models such as the 1959HW, 1959SLP, JTM45 (2245), 2245THW, 1987X, 2061X and 1974X.  Original Marshall part number SWTM-00021.  Found in Orange AD30, AD200, TH50, and TH200.  Found in Trace Elliot Speedtwin C30, Trident, Bonneville, Velocette, Velo 12R, Velo Twin and V-Type tube amps.   Also found in some Hiwatt and Vox amps.
Part #SW-641
$24.95


Click on photo for
larger view
POWER SWITCH - LINE 6
Power switch for Line 6 HD147 300W Guitar Amp.  Rated at 20 Amps (125VAC) or 15 Amps (250VAC).   Fits 1/2" chassis hole.   Solder terminals or 1/4" push on, single pole / single throw (SPST).   Two position - on/off.   Line 6 part number 24-03-0002
Part #24-03-0002
$3.95


Click on photo for
larger view
ORIGINAL Fender™ PUSH SWITCH
DPDT Mini Short-Throw Push Switch.  Has 6 electrical terminals on bottom of switch (DPDT).  Used for channel switching, FX switching on the front panels of many Fender™ amps from the 1990s to present.    Found in the Acoustasonic series, Blues Deville, Blues Deluxe, Blues Jr., Bullet Reverb, Bullet Reverb, Bassman 300, Champion 30, Champion 30 DSP, Champion 110, Frontman 25R, Frontman 25G, Hot Rod Deville, Hot Rod Deluxe, Deluxe 112 & 112 Plus, Roc Pro series, Performer 1000, Princeton 65, Princeton 65 DSP, Princeton 112 & 112 Plus, PCN-2, PCN-4, SFX, Super-Sonic, Cyber Twin series, Satellite Ultimate Chorus, Super Champ X2, Super Champ XD, Twin Amp Pro Tube, and others.   Original Fender™ part number 002809100.   Also Fender™ part number 028091, and 028091049.  Switch only - see part number K-058 for the switch cap.  Has actuator shaft of 2.7mm square.
Part #SW-028
$5.95


Click on photo for
larger view
ORIGINAL Fender™ PUSH SWITCH
4PDT Mini Short-Throw Push Switch.  Has 12 electrical terminals on bottom of switch (4PDT).   Used as the Enhance switch on the Fender™ Bassman 25.   Used as the Effects Level switch (rear panel) on the Cyber Twin combo, Cyber Twin head, Cyber Twin SE, and the TBP-1 Preamp.  Original Fender™ part number 0038828000.    Switch only - see part number K-058 for the switch cap.  Has actuator shaft of 2.7mm square.
Part #SW-828
$6.95


Click on photo for
larger view
ORIGINAL Crate™ PUSH SWITCH
DPDT Mini Short-Throw Push Switch.  Has 6 electrical terminals on bottom of switch (DPDT).  Used for channel switching, level switching, FX switching, etc on the front panels of many Crate™ amps from the 1990s to present.    Found in the Palomino, BT50, and many other models.  Original Crate™ part number 88-302-02.   Has actuator shaft of 2.7mm square.
Part #88-302-02
$5.95


Hard to Find Tools


Click on photo for
larger view
STRAIN RELIEF INSTALLATION/REMOVAL TOOL
Removing and installing a strain relief can be a frustrating job.   Standard pliers just do not get the job done and can damage the strain relief.   These special strain relief pliers are just what you need.  They fit perfectly on the AC power cord strain relief and give you the leverage you need to compress the strain relief for easy removal and installation, without damage.
Part #YTH-205 - Note: Limited Quantity available at the moment.
$14.95



Click on photo for
larger view
Revisit™ RESISTOR LEAD FORMING TOOL
You know you want one!   Bend resistors to fit in PC boards, perf boards, or turret boards exactly, uniformly.  Makes your repairs and kit builds look completely professional.   Works great on vintage Fender™ Blackface and Silverface models.   One side is for 1/2 watt resistors, the other side fits 1/4 watt resistors.   Also perfect for diodes.  Slots for radial lead resistors run along the length of the high impact ABS plastic former. Each slot is .05″ longer than the next and has radiused edges to make perfect, square, symmetrical  bends without stressing the leads.
Part #LF-010
$7.50


Click on photo for
larger view
1 INCH CHIP BRUSH
Chip brushes are very similar to a paint brush. The difference is, paint brushes may use bristles that will melt when in contact with certain solvents and are expensive (for the good ones anyway).  This is where chip brushes shine.   Chip brushes are made with natural China bristles that will hold up to flux, epoxy, glue, resin, stain, paint remover, solvents, cleaners, oils and more.

They also make a great dry duster to use in cleaning dust, spider webs, etc from the insides of amplifiers.

Chip brushes have a wood handle so they are firm and comfortable to use.    The best part, they cost much less than paint brushes so you can use them to apply sticky, nasty and harsh adhesives or even use them in a parts cleaner with solvent and when you are done with them, toss it out.    Bristles are 1 inch wide, total length of brush is 7 1/4 inches.
Part #CB-491

$0.69


Click on photo for
larger view
ORANGE WOOD STICK, SET OF 2
This stick is a great addition to any tool kit. Made of non-conductive orange wood, this stick is perfect for probing amps, moving wires and generally moving anything where your fingers should not be. These are also great for cleaning dried rosin flux off boards and components. These are ESD safe and environmentally friendly.   Set of 2 sticks.
Part #OWS-2
$0.59
(for a set of 2 sticks)


Click on photo for
larger view

EXTRA LONG COTTON SWABS

A bag of 100 cotton swabs. 6" long with long, sturdy wooden handles. Single, compacted cotton tip with less lint than regular cotton swabs. Perfect for those hard-to-reach areas in guitar amps, power amps, mixers, and guitar electronics cavities.  Also great for cleaning cassette decks, VCRs and CD or DVD players.  Use on audio heads, CD/DVD lasers, rollers, guides and other devices in the tape path.Great for model making, ceramics, jewelry, hobby, arts and crafts. Versatile tool for cleaning, detailing, and applying paint, glue, epoxy, lubrication, etc.  NOT FOR MEDICAL USE.

Part #CCS-100 (100 Pack)

CCS-100
(100 Pack)
$3.49


Strat™, Stratocaster™, Esquire™, Telecaster™, Tele™, Jazzmaster™, Jaguar™, Mustang™, P.Bass™, J.Bass™ and Fender™ are registered trademarks of Fender™ Musical Instruments. The replacement necks and bodies are for a Fender™ or Squier™ by Fender™ guitar or bass. The distinctive headstock designs and the distinctive body designs of the Stratocaster™, Telecaster™, J.Bass™, P.Bass™ and Tele™ Bass are registered trademarks of Fender™ Musical Instruments Co.
Peavey™ is a registered trademark of Peavey™ Electronics Corporation.
Marshall™ is a registered trademark of Marshall™ Amplification Plc.
Mesa Boogie™ is a registered trademark of MESA/Boogie™ Ltd.
AmpRepairParts.com and Studio Sound Electronics are not affiliated with these companies.
All company names, logos and product names mentioned on these pages are trademarks of their respective owners.

Copyright ©2024 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
  WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
