Fender™ Jewels,
Lamps, and Optoisolators

We carry a complete selection of Fender™ Amplifier parts for both vintage and modern amps.

Back to Fender™ Parts Index



Description

Price Purchase

RED

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many others.   RED - the standard on Fenders since the 1940's.   Replaces Fender™ part number 0990952000.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.


Part #JL-115R
$2.99


AQUA

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.   AQUA - the latest addition to jewel colors!   Aqua is a greenish blue, similar to cyan or light turquoise.  Replaces Fender™ part number 0990949000.   *Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.


Part #JL-115Q
$4.65


VIOLET

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  Violet - just plain cool!
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

NOTE:  When illuminated by the bulb, this violet jewel tends to have a hue slanted toward the red spectrum, so some call the look a reddish-pinkish-violet color.   If you like violet/purple and want it toward the warmer end of the color spectrum, this is the jewel for you.   If you like it more bluish - toward the cooler end of the violet color zone, choose the purple jewel JL-115P below instead.

Part #JL-115V

$2.99


PURPLE

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many others.  Purple - just plain cool!   Replaces Fender™ part number 0990953000.   *Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

NOTE:  To the naked eye, this jewel looks blue until you put it in front of the P-47 bulb.   The bulb has an amber tint to it, so the combo makes the jewel glow purple.  When illuminated by the bulb, this purple jewel tends to have a hue slanted toward the blue spectrum, so some call the look a bluish-purple color.   If you like violet/purple and want it toward the cooler end of the color spectrum, this is the jewel for you.   If you like it more reddish - toward the warmer end of the violet color zone, choose the violet jewel JL-115V above instead. IMPORTANT: NOT RECOMMENDED FOR USE WITH THE LED-47 ... WILL LOOK DEEP BLUE INSTEAD OF PURPLE.

Part #JL-115P

$4.65


BLUE

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  Blue, for the California vibe.   Replaces Fender™ part number 0990959000.*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

NOTE:  Due to the orange glow of the bulb normally used behind this jewel, the resulting color is not a pure brilliant blue ... head on, it looks like a somewhat washed-out blue, and from a side angle, it looks more like purple.   This is not the fault of the jewel, but rather the combination of the blue color of the jewel combined with the orange glow of the bulb.  If used with a pure white light (such as a white LED), the resulting look is a deep blue color.

Part #JL-115B

$2.99


AMBER

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  Amber - jazzy look!   Replaces Fender™ part number 0990950000.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

Part #JL-115A
$2.99


GREEN

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  Green - Texas style!  Replaces Fender™ part number 0990951000.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

Part #JL-115G
$2.99


CLEAR

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa Boogie™, many others.  Clear, for the brightest light output.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.

Part #JL-115C
$2.99


WHITE

Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL, Fender™, Peavey™, Mesa/Boogie™, many others.  WHITE.

Part #JL-115W
$4.65



Click on photo for
 larger view
REPLACEMENT PILOT LAMP JEWEL KIT, Fender™, Peavey™, Mesa/Boogie™ , many others.   Kit of 6 jewels - change your light color as often as you like.   Contains one each red, amber, green, blue, violet and clear.
Part #JLK-115
$14.99



Click on photo for
 larger view
PILOT LAMP HOLDER, REPLACEMENT FOR FENDER, MESA BOOGIE, ORANGE, ETC.
Pilot lamp holder, fits 11/16" Chassis Hole
Bezel inner diameter: 0.570" Bezel inner diameter (including threading): 0.527"    Works with a standard bayonet lamp such as the 6.3V #47 lamp, or the LED-47.   Accepts all of the colored jewels on this page.
*Does not fit the Fender SuperChamp X2 or XD, Steel King, Stage 100 DSP, Stage 160 DSP, Princeton 65 DSP, Jazzmaster Ultralight, Deluxe 90 DSP, Cyber-Champ, Champion 30 DSP, SFX Satellite, Blues Junior series, Pro Junior, Princeton Chorus DSP, or similar models.
Part #LH-124
$5.50


RED

Click on photo for
 larger view

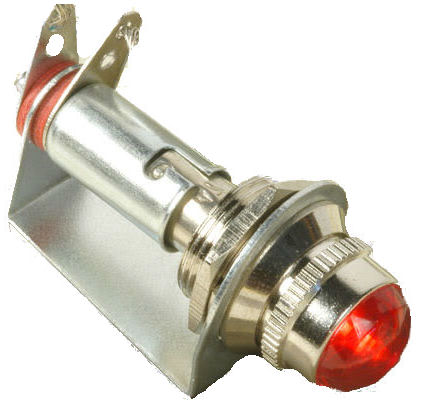

PILOT LAMP ASSEMBLY, RED, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, red jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124R

Starting at
$8.50
Select Option:




BLUE

Click on photo for
 larger view

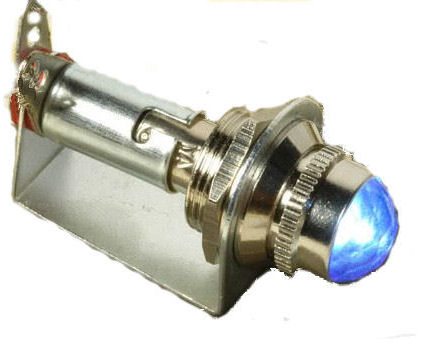

PILOT LAMP ASSEMBLY, BLUE, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, blue jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124B

Starting at
$8.50
Select Option:




AMBER

Click on photo for
 larger view

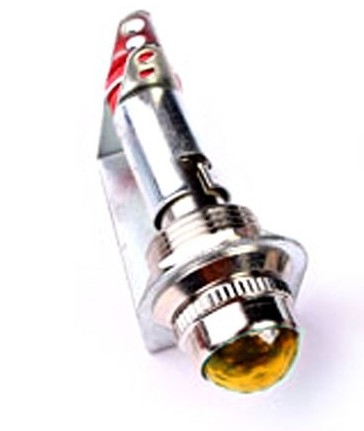

PILOT LAMP ASSEMBLY, AMBER, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, amber jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124A

Starting at
$8.50
Select Option:




CLEAR

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, CLEAR, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, clear jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124C

Starting at
$8.50
Select Option:




GREEN

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, GREEN, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, green jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124G

Starting at
$8.50
Select Option:




VIOLET

Click on photo for
 larger view

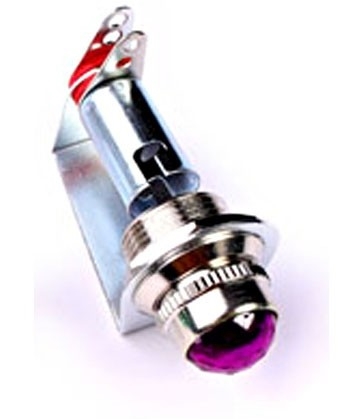

PILOT LAMP ASSEMBLY, VIOLET, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, violet jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124V

Starting at
$8.50
Select Option:




WHITE

Click on photo for
 larger view

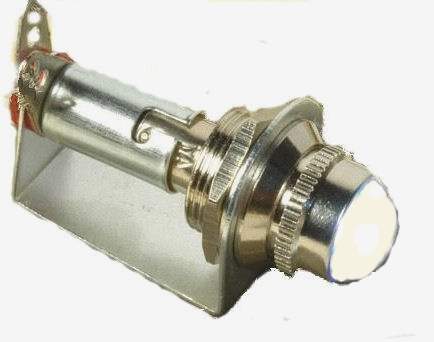

PILOT LAMP ASSEMBLY, WHITE, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, white jewel and your choice of #47 bulb or equivalent LED-47.  The LED option provides a cooler, yet brighter light with much longer life.  LED color is `warm white`, for a color very close to that of a bulb.   Fits 11/16" chassis hole.   Designed for 6 volts (filament voltage in tube amps).  Ready for installation and wiring.

Available with 6V `warm white` LED or standard 6V incandescent bulb - choose in "Options"

Part #FLA-124W

Starting at
$9.50
Select Option:




PURPLE

Click on photo for
 larger view
PILOT LAMP ASSEMBLY, PURPLE, REPLACEMENT FOR FENDER
Complete pilot lamp assembly:  Includes pilot lamp holder, purple jewel and #47 bulb complete, fits 11/16" chassis hole.   Designed for 6.3 volts. Ready for installation and wiring.

The purple color on this lamp jewel is toward the cool end of the purple/violet range - so it has more of a bluish tint to the purple color.  In fact, the lamp jewel cover looks blue if the light is not turned on.  If you prefer a warmer tone (toward the red/pink end of the scale), choose the FLA-124V violet lamp assembly.  Not available with the LED option, as the color when using an LED is a deep blue rather than purple.
Part #FLA-124P

$9.50


Click on photo for
larger view

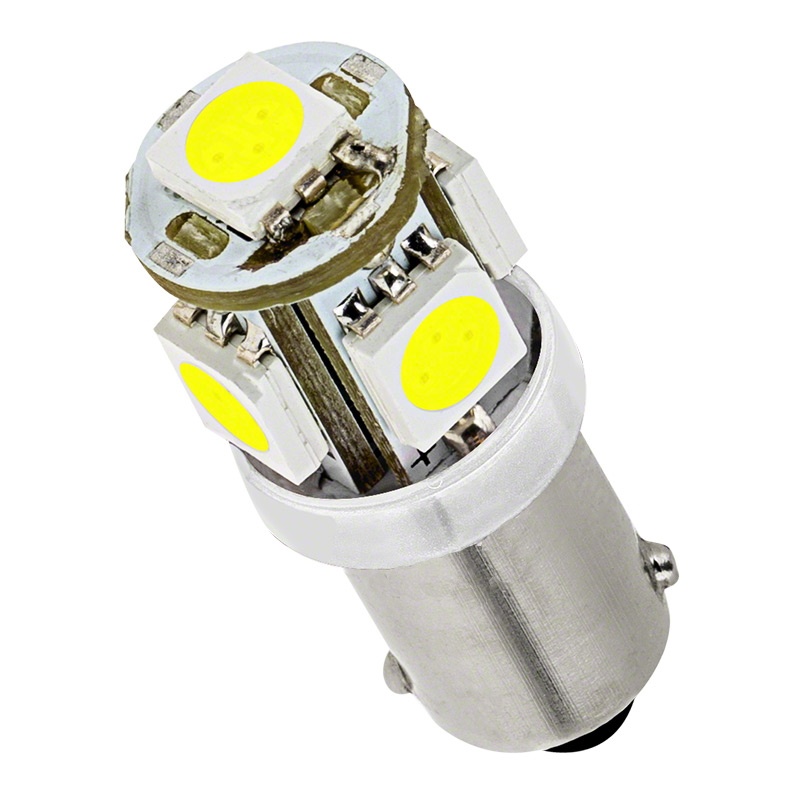

NEW! BRIGHT LED INDICATOR LAMP, REPLACES #47 BULB,
T-3-1/4, 6.3V, BAYONET BASE

Drop-in replacement long life LED replacement lamp for pilot lamps.  Fits Fender amps which are designed for the P-47 type incandescent bulb (including most Fender amps from the 1950s through the present).   The LED replacement is long lasting, runs much cooler, and is substantially brighter than the P-47 incandescent bulb.  If  less brightness is desired, install a series resistor feeding the lamp socket (1/4 or ½ watt, value between 560Ω and 1KΩ).  Sold individually.  Add new pizzazz to your amp with a brighter lamp on the front panel, and one which pays for itself in the long run with exceptionally long life.   Works on 6 volts, AC or DC.   Color is warm white.   NOTE: NOT RECOMMENDED FOR USE WITH THE PURPLE J-115P JEWEL - WILL RESULT IN A DEEP BLUE COLOR RATHER THAN PURPLE.
Part #LED-47
$2.95


Click on photo for
larger view

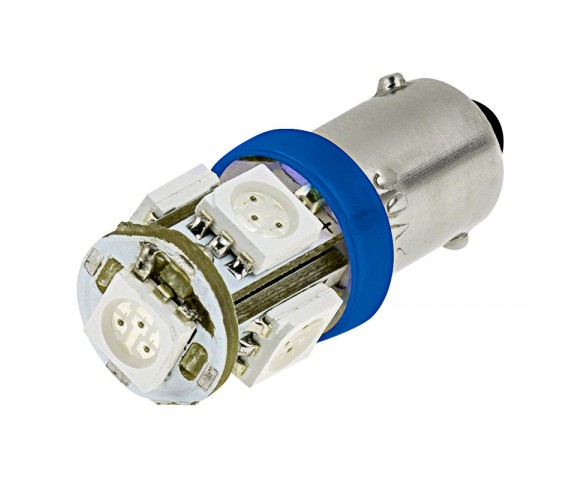

NEW!  COOL BLUE BRIGHT OUTPUT LED INDICATOR LAMP, REPLACES #47 BULB, T-3-1/4, 6.3V, BAYONET BASE
Drop-in replacement long life BLUE OUTPUT LED replacement lamp for pilot lamps.  Fits Fender amps which are designed for the P-47 type incandescent bulb (including most Fender amps from the 1950s through the present).   The LED replacement is long lasting, runs much cooler, and is substantially brighter than the P-47 incandescent bulb. Works on 6 volts, AC or DC. Output color is cool blue.  When used with different colored jewels, creates a different color and a different vibe!  See the results below:

Jewel Color

Resulting Look

Brightness Level

JL-115A Amber Yellow High
JL-115B Blue Medium Blue High
JL-115C Clear Crystal Blue High
JL-115G Green Light Green High
JL-115P Purple Deep Blue Medium
JL-115R Red Orange Medium
JL-115V Violet Bluish Violet Low
JL-115W White Baby Blue Low

Part #LED-47B

$2.95


Click on photo for
larger view
INDICATOR LAMP, #47, T-3-1/4, 6.3V, .15 AMP, BAYONET BASE
P-47
General replacement lamps for dials, indicators, etc. Sold individually.  6.3V
Part #P-47
$0.99


Click on photo for
larger view
FENDER SQUARE 5mmX5mm DIFFUSED RED LED
Replaces the channel-switching indicator LED or the power indicator in several Fender amps and also in many Fender footswitches.   Replaces original Fender part number 028039.  Found in Blues Deluxe, Blues Deville, Hot Rod Deluxe, Hot Rod Deville, Deluxe 112, Deluxe 112 Plus, Ultimate Chorus, Princeton 112, Princeton 112 Plus, Powerstage 100, Roc Pro 700, BXR200, KXR60, KXR100, KXR200, Frontman 25R, Pro Reverb and Twin Amp (Pro Tube Series), Acoustasonic Jr.   Also found in the 028122 and 050419 Fender footswitches.   This LED is part of the circuitry in many Fender footswitches, and its failure often means the channel switching stops functioning correctly.  This LED is red only - will not replace the bi-color footswitches used in some of these amps.

Part #LED-573
$1.75


Click on photo for
larger view

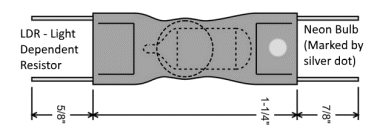

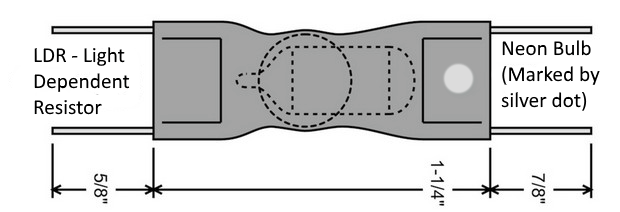

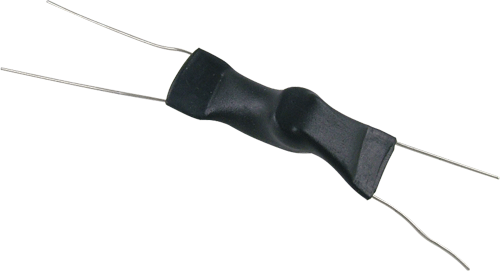

Fender™ VIBRATO OPTOISOLATOR LDR ("BUG")
Used in the vibrato circuit of vintage Fender™  Blackface and Silverface amps.  Replaces Fender™ part number 0037836000

Part #LDR-1020
$9.95
