Output Modules


  Output Modules

Description & Part No.

Price (each)

Purchase
TDA2030 OUTPUT CHIP, COMMONLY FOUND IN CrateŽ, FENDER, KORG AND MANY OTHERS.  5 PINS.  RATED 14 WATT OUTPUT.
Part #TDA2030
$3.40

TDA2040 OUTPUT CHIP, COMMONLY FOUND IN CrateŽ, FENDER, KORG AND MANY OTHERS.  5 PINS.  RATED 22 WATT OUTPUT.
Part #TDA2040
$3.95

TDA2050 OUTPUT CHIP, COMMONLY FOUND IN CrateŽ, FENDER, KORG AND MANY OTHERS.  5 PINS.  RATED 35 WATT OUTPUT.
Part #TDA2050
$4.50

TDA7240A OUTPUT CHIP, COMMONLY FOUND IN TRAYNOR, YORKVILLE AND MANY OTHERS.  7 PINS.  RATED 20 WATT OUTPUT.
Part #TDA7240A
$4.95


Click on photo for
larger view
LM1875T OUTPUT CHIP, COMMONLY FOUND IN CrateŽ, RMS, KORG AND MANY OTHERS.  5 PINS.  RATED 20 WATT OUTPUT.
Part #LM1875T
$3.40


Click on photo for
larger view

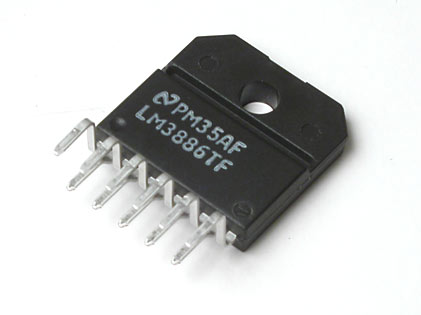

LM3886TF OUTPUT CHIP, COMMONLY FOUND IN MarshallŽ, AND MANY OTHERS.  11 PINS.  RATED 68 WATT OUTPUT INTO 4 OHMS.
Part #LM3886TF
$12.95


Click on photo for
larger view
LM4765T OUTPUT CHIP, COMMONLY FOUND IN LINE 6Ž SPIDER MODELS, AND MANY OTHERS.  15 PINS.
Part #LM4765T
$8.95


Click on photo for
larger view
TDA7293 OUTPUT CHIP, COMMONLY FOUND IN CrateŽ, MarshallŽ AND MANY OTHERS.  15 PINS.  RATED 100 WATT OUTPUT, AT UP TO 120V SUPPLY.
Part #TDA7293 / TDA7293V
$8.95


Click on photo for
larger view
OUTPUT MODULE ASSEMBLY FOR MarshallŽ MG50DFX, MG100DFX, MG100HDFX MG250DFX AMPS.  Includes PC board, components, output IC and connecting cable.   FOR MG50DFX, MG100DFX, MG100HDFX MG250DFX AMPS ONLY.    Also includes a single application of heatsink compound to apply between the output IC and the heatsink module.  IMPORTANT NOTE:   Does NOT fit the MG50FX, MG100FX, or MG100HFX models - these are the models with the large "MG" on the front panel.  Check model number carefully.
Part #MG100-PM
$54.95


Click on photo for
larger view
OUTPUT MODULE ASSEMBLY FOR MarshallŽ AVT275X  Includes PC board, components, output IC and connector.   For Marshall AVT275X Amps ONLY.    Also includes a single application of heatsink compound to apply between the output IC and the heatsink module.  IMPORTANT NOTE:   Check model number carefully.
Part #AVT275X-PM
$64.95


TDA7294 OUTPUT CHIP, COMMONLY FOUND IN CrateŽ, MarshallŽ AND MANY OTHERS.  15 PINS.  RATED 100 WATT OUTPUT AT UP TO 80V SUPPLY.
Part #TDA7294 / TDA7294V
$8.95



Click on photo for
larger view
TIP142 NPN DARLINGTON OUTPUT TRANSISTOR, COMMONLY FOUND IN CrateŽ, MarshallŽ, FenderŽ AND MANY OTHERS.
Part #TIP142
$6.99


Click on photo for
larger view


TIP147 PNP DARLINGTON OUTPUT TRANSISTOR, COMMONLY FOUND IN CrateŽ, MarshallŽ, FenderŽ AND MANY OTHERS.
Part #TIP147
$6.99



Click on photo for
larger view
SINGLE-USE HEATSINK COMPOUND.   ELECTRONIC DEVICES MOUNTED ON HEATSINKS DON'T REQUIRE A LOT OF THERMAL CONDUCTION GREASE, BUT THEY DO REQUIRE A SMALL DAB TO ENSURE THAT THEY WON'T OVERHEAT.   THIS PACK CONTAINS SUFFICIENT AMOUNT FOR ONE APPLICATION.
Part #HSC-1
$0.99
