Marshall™
Lights

We carry a complete selection of Marshall™ Amplifier parts for both vintage and modern amps.

Back to Marshall™ Amp Parts Index



Click on photo for
 larger view

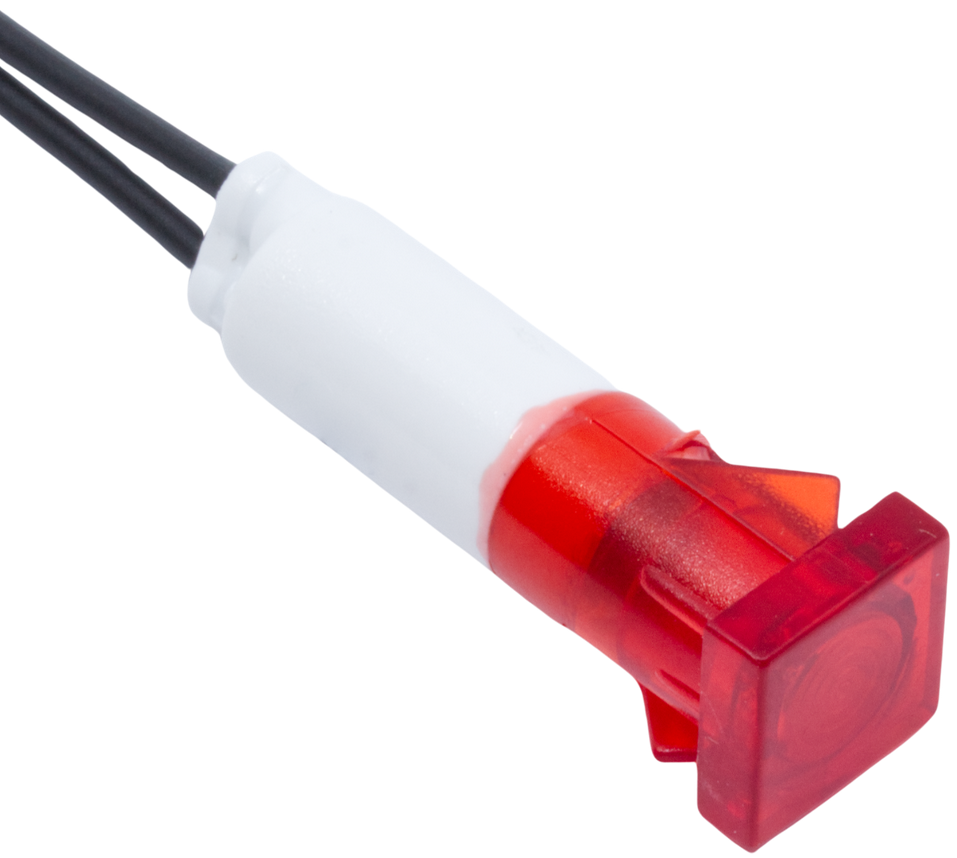

Marshall™ EARLY INDICATOR LIGHT - 6 VOLT, WITH RETAINER CLIP.
Indicator light, square. 6 Volts.   Measures:  0.44" Length x 0.44" Width x 0.27" Depth.   For 3/8" diameter hole.  Used in vintage Marshall™ designs such as the JMP.   6 volt lamp - designed to run off of the filament voltage line.   Original Marshall™ part.   Retainer clip IS included with the light.   Read about 6V light installation here.  Important!   Twist the two leads around each other before installation, and use only the minimum length necessary to reach a source of 6V.   This will minimize audio hum and interference.
Part #MPL-06
$11.95


Click on photo for
 larger view

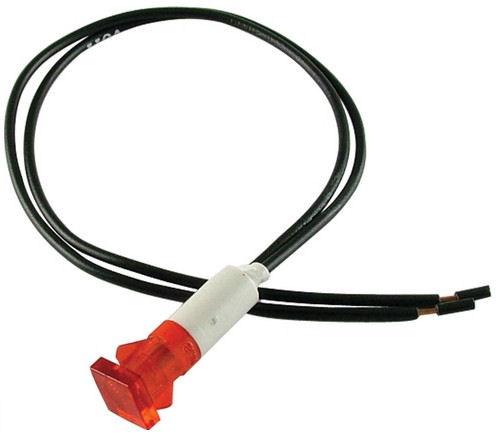

Marshall™ EARLY INDICATOR LIGHT - 120 VOLT.
Indicator light, square. 120 Volts. Measures: 0.47" Length x 0.47" Width x 0.09" Depth (3/8" mounting hole).   Used in vintage Marshall™ designs such as the JMP.   120 volt lamp - designed to run off of the switched line voltage. Original Marshall™ part.   No retainer needed on this lamp - has automatic lock-in to 3/8" mounting hole.
Part #MPL-120
$11.95


Click on photo for
 larger view

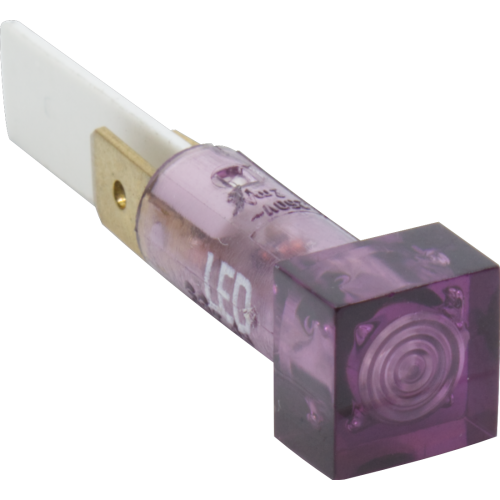

Marshall™ VINTAGE INDICATOR LIGHT - PURPLE, 6V LED.
Indicator light, square. Purple, LED powered, for 6V only.   As used in the Marshall Vintage Modern models 2266, 2466, and 2266C. Original Marshall™ part M-BULB-00007.
Part #MPL-007
$10.95


Click on photo for
 larger view

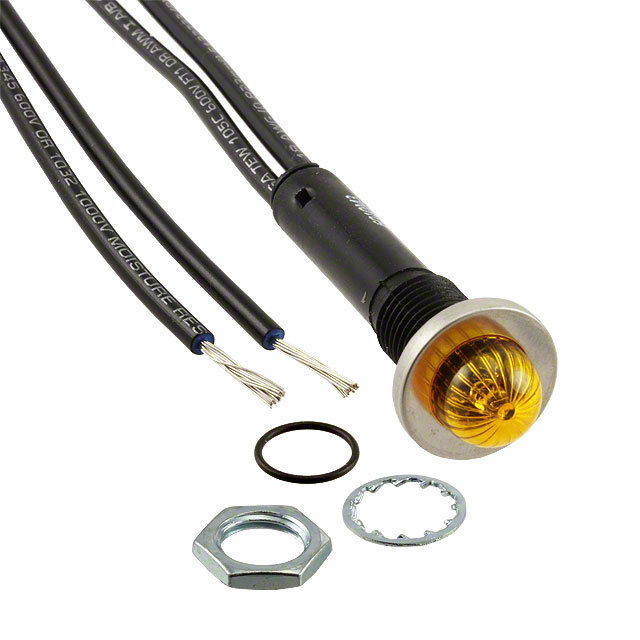

Marshall™ VINTAGE AMBER INDICATOR LIGHT - 120 VOLT.
Indicator light, round. 120 Volts.  3/8" mounting hole.   Used in vintage Marshall™ designs such as the JTM-45 and JTM-100 from the early 1960s.  Also found in other vintage British amps.   120 volt lamp - designed to run on the switched line voltage (North America only).   Mounting nut is included.
Part #MPL-6010
$12.95


Click on photo for
 larger view

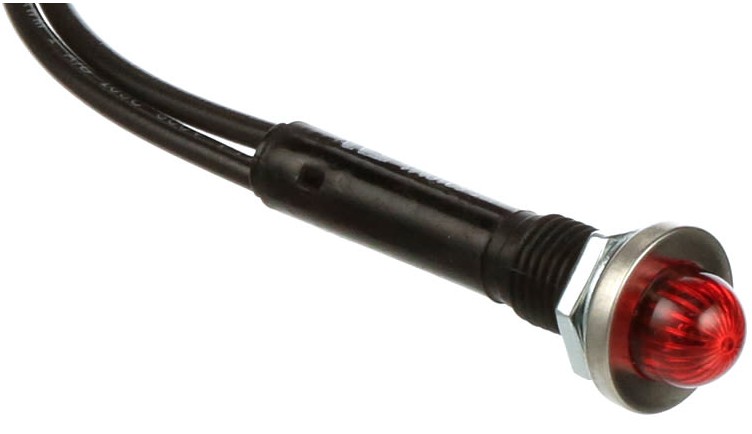

Marshall™ VINTAGE RED INDICATOR LIGHT - 120 VOLT.
Indicator light, round. 120 Volts.  3/8" mounting hole.   Used in vintage Marshall™ designs such as the JTM-45 and JTM-100 from the early 1960s.  Also found in other vintage British amps.   120 volt lamp - designed to run on the switched line voltage (North America only).   Mounting nut is included.
Part #MPL-6010R
$12.95


LED Colors Available:

Click on photo for
larger view

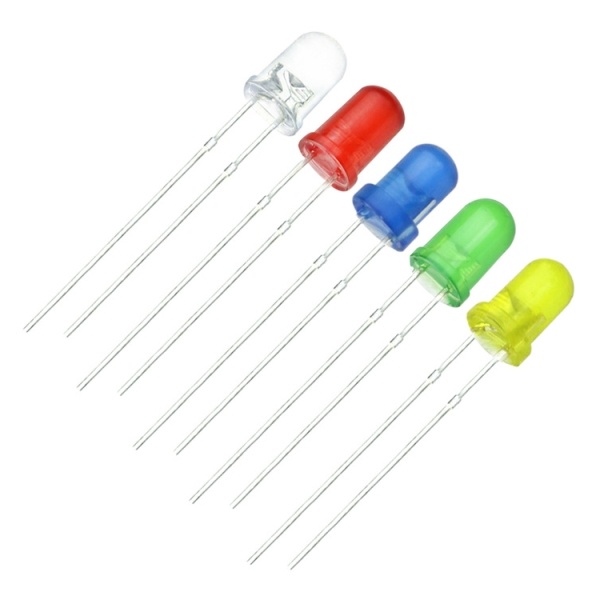

5mm DIFFUSED LED - CHOICE OF COLORS
Standard 5mm (3/16") diameter diffused LED found in many guitar amplifiers and effects pedals.  Available in white, red, blue, green, or yellow.   This 5mm size is commonly called the T-1-3/4 size.  On LEDs the longer leg (the anode) goes to the positive voltage supply.   LEDs need a DC supply voltage and a resistor in series with them to limit current.   For a 9V supply, a 470 ohm resistor works well.   For 12 volts, a 680 ohm resistor, and for 15 volts, a 1K resistor.

Part #LED-5D
$0.59
(per LED)


Select Option:


Quantity:


LED Colors Available:

Click on photo for
larger view

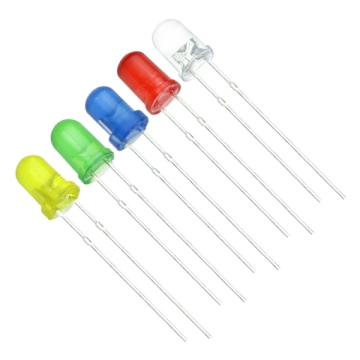

3mm DIFFUSED LED - CHOICE OF COLORS
Standard 3mm (1/8") diameter diffused LED found in many guitar amplifiers and effects pedals.  Available in white, red, blue, green, or yellow.   This 3mm size is commonly called the T-1 size.  On LEDs the longer leg (the anode) goes to the positive voltage supply.   LEDs need a DC supply voltage and a resistor in series with them to limit current.   For a 9V supply, a 470 ohm resistor works well.   For 12 volts, a 680 ohm resistor, and for 15 volts, a 1K resistor.

Part #LED-3D
$0.39
(per LED)


Select Option:


Quantity:


Click on photo for
larger view
SUPER-BRIGHT 5mm RED WATERCLEAR LED
Standard 5mm (3/16") diameter waterclear red LED found in many guitar amplifiers and effects pedals.   A red waterclear LED looks clear when it is off, and emits a bright red light when power is applied.  On LED's the longer leg (the anode) goes to the positive voltage supply.   LED's need a DC supply voltage and a resistor in series with them to limit current.   For a 9V supply, a 470 ohm resistor works well.   For 12 volts, a 680 resistor resistor, and for 15 volts, a 1K resistor.

Part #LED-5R-WC
$0.59


LED Colors Available:

Click on photo for
larger view
BEZEL-MOUNTED LED WITH BUILT-IN RESISTOR
The ultimate time saver!  This is an LED mounted in a bezel with a resistor and shrink wrapped wires.
Length is 19mm long - 16mm of which is below the mounting area.  These Prewired LEDs are designed for 8V to 12V DC - no dropping resistor needed.   The length of the wire is about 6.5"   Mounting hole is 8mm, LED color choice is red, amber, green, blue or white.
Part #LED-725-X
$1.95

Select Option:


Quantity:
