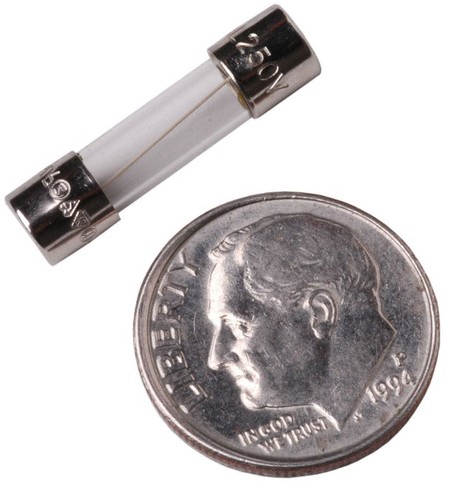

GMA Fuses - Fast Blow |
|
|
(Sold in packs of five fuses.
20mm long x 5mm diameter) |
GMA fuses are smaller European fuses,
fast blow, 5mm diameter
x 20mm long. Measure your old fuse. In English
dimensions, they are about 3/16 inches x 3/4 inches. Sold in packs of 5
fuses. Choose amperage
value in Options.
Part #GMA-X |
$2.95
(Pack of 5 fuses) |
|
|
|
GDC Fuses - Slow Blow |
|
|
(Sold in packs of five fuses.
20mm long x 5mm diameter) |
GDC fuses are smaller European fuses,
slow blow, 5mm diameter
x 20mm long. Measure your old fuse. In English
dimensions, they are about 3/16 inches x 3/4 inches. GDC fuses are
sometimes listed as 5 x 20 fuses, or "T" fuses, such as T1A. GDC fuses are
the same physical size as GMA fuses, except that they are "slow blow", or "time
delay". The GDC fuses are engineered to withstand normal surge current
without blowing needlessly. During steady-state operation, they
protect to the same value as fast-blow fuses. Sold in packs of 5 fuses. Choose amperage
value in Options.
Part #GDC-X |
$4.95
(Pack of 5 fuses) |
|
|
|

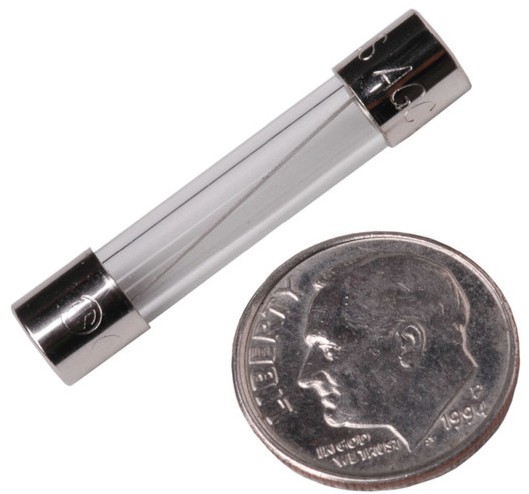

AGC Fuses -
Fast Blow |
|
|
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter) |
AGC fuses are larger American fuses,
fast blow, 1/4" diameter
x 1-1/4" long. Measure your old fuse. AGC fuses are
sometimes listed as 3AG fuses. In metric dimensions, they are 6.3mm
x 31.75mm (or 6 x 32 for short). Sold in packs of 5 fuses. Choose amperage
value in Options.
Part #AGC-X |
$2.95
(Pack of 5 fuses) |
|
|
|
MDL Fuses -
Slow Blow |
|
|
(Sold in packs of five fuses.
1 1/4" long x 1/4" diameter. Same as the MDL1 fuse) |
MDL fuses are larger American fuses,
slow blow, 1/4" diameter
x 1 1/4" long, the same size as AGC fuses. Measure your old fuse. Slow Blow (also
called Time Delay) fuses are engineered to withstand normal surge current
without blowing needlessly. During steady-state operation, they
protect to the same value as fast-blow fuses. In metric dimensions, they are
6.3mm x 31.75mm (or 6 x 32 for short). Sold in packs of 5 fuses. Choose amperage
value in Options.
Part #MDL-X |
$4.95
(Pack of 5 fuses) |
|
|
|
2AG Pigtail Fuses - Slow Blow |
|
|
(Sold individually.
9/16" long x 3/16" diameter)
Click on photo for
larger view |
 2AG
Pigtail fuses are subminiature 5mm diameter
x 15mm long, with axial leads for soldering. Measure your old fuse.
These pigtail fuses are designed to be soldered to a circuit board. In English
dimensions, they are about 3/16 inches x 9/16 inches. 1 amp
slow-blow. These fuses are commonly found on circuit boards in some
Peavey equipment.
Part #2AG-P-1A |
$1.69
(each) |
|
|
|
NTC Thermistors |
|
|
Click on photo for
larger view |

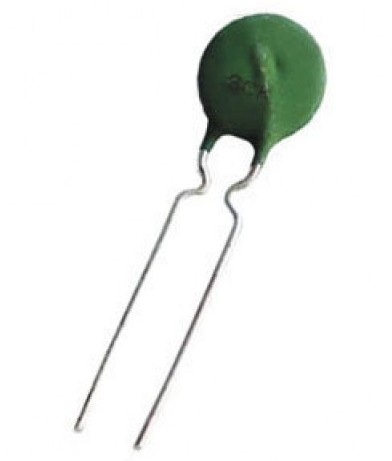

5 OHM NTC (Negative
Temperature Coefficient) type Thermistor.
As the temperature increases, the resistance decreases and is used for over
current inrush protection. It is installed in series in a circuit, usually in
series with incoming AC power. This thermistor is rated for 3A
maximum current, and is 8mm in diameter. At room temperature with no
current, its resistance is 5 ohms. At full rated current, its resistance
drops to 0.26 ohms. It offers a small series resistance to the
power transformer when current is first applied, and then quickly drops its
resistance as current picks up for normal operation. By limiting
inrush current, it protects the transformer and other components in the power
supply at turn-on. This thermistor should only be used on amps which
have a 3 amp fuse or less.
Download data sheet here.
Part #SCK-08053 |
$0.99
(each) |
|
Click on photo for
larger view |
10 OHM, 5A NTC (Negative
Temperature Coefficient) type Thermistor.
Fender part number 028503. Used in many Fender amp models
since the 1990s. Also used in some Mesa Boogie amps. It is installed in series in a circuit
between the transformer and incoming AC power. This thermistor is rated for
5A maximum current, and is 19mm in diameter. By limiting
inrush current, it protects the transformer and other components in the power
supply at turn-on. This thermistor should only be used on amps which
have a 5 amp fuse or less.
Download data sheet here.
Part #CL-60 |
$3.99
(each) |
|
