Fender® Capacitor Kits
for Vintage Fender Amps



Featuring quality F&T Capacitors and other fine brands.

Capacitor values have changed slightly over the years due to changing manufacturing standards.   5uF has been replaced with 4.7uF.   20uF and 25uF have been replaced with 22uF.      70uF has been replaced with 80uF.     In all cases, 25uF and 50uF have been replaced with 100uF bias filter capacitors for better bias stability and less hum.

Due to improvements in technology, new capacitors are about 50% smaller than original capacitors.

Disclaimer:   Fender occasionally made changes to designs which are not consistent with the model version on the tube chart.  Especially in the "silverface" years, the internal designs sometimes do not correspond with the schematic for the particular model version shown on the tube chart.    It is recommended that the values of the filter capacitors inside the capacitor housing beneath the chassis be checked and verified before ordering a specific capacitor kit, to make sure that your amp wasn't one that did not adhere to the schematic.

Warning:   Tube amplifiers contain high voltage which is stored in the filter capacitors even after the amplifier has been turned off.   Always unplug the amplifier from commercial power, and discharge all filter capacitors before working on the amplifier circuitry.   If you are unsure about this procedure, we strongly recommend that you leave your amplifier in the care of a professional service person.



  Fender® Amp Electrolytic Capacitor Kits for Vintage Amps


Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 1.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 3 F&T 22uF-500V (Main Filters - Decoupling)
  • 1 F&T 10uF-500V (Decoupling)
  • 2 F&T 80uF-450V (Main Filters)
  • 1 F&T 100uF-100V (Bias Filter)
  • 5 I.C. 22uF-50V (Cathode Bypass)

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-1

$53.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 2.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 5 F&T 16uF-475V (Main Filters)
  • 1 F&T 100uF-100V (Bias Filter)
  • 5 I.C. 22uF-50V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-2

$32.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 3.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 5 F&T 22uF-500V (Main Filters)
  • 1 F&T 100uF-100V (Bias Filter)
  • 5 I.C. 22uF-50V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-3

$32.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 4.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 3 F&T 22uF-500V (Main Filters - Decoupling)
  • 2 F&T 80uF-450V (Main Filters)
  • 1 F&T 100uF-100V (Bias Filter)
  • 7 I.C. 22uF-50V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-4

$49.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 5.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 5 F&T 22uF-500V (Main Filters)
  • 1 F&T 100uF-100V (Bias Filter)
  • 7 I.C. 22uF-50V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-5

$33.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 6.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 5 F&T 16uF-475V (Main Filters)
  • 1 F&T 100uF-100V (Bias Filter)
  • 7 I.C. 22uF-50V (Cathode Bypass)

See the model cross reference for applicable models.

Part #FCK-6

$34.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 7.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 3 F&T 22uF-500V (Main Filters - Decoupling)
  • 2 F&T 80uF-450V (Main Filters)
  • 2 F&T 100uF-100V (Bias Filters)
  • 6 I.C. 22uF-50V (Cathode Bypass)
  • 1 I.C. 4.7uF-50V (Cathode Bypass - Vibrato)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-7

$51.95



Click on photo for
larger view

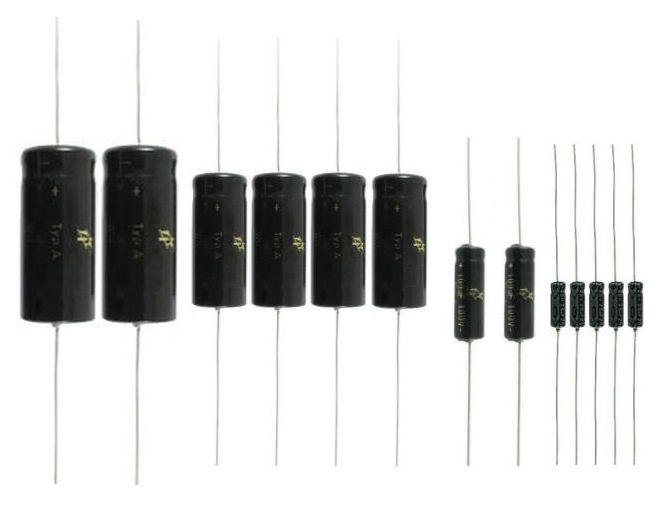

Fender® Electrolytic Capacitor Kit 8.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 5 F&T 16uF-475V (Main Filters)
  • 1 F&T 100uF-100V (Bias Filter)
  • 6 I.C. 22uF-50V (Cathode Bypass)
  • 1 I.C. 4.7uF-50V (Cathode Bypass - Vibrato)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-8

$34.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 9.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 3 F&T 22uF-500V (Main Filters - Decoupling)
  • 2 F&T 100uF-450V (Main Filters)
  • 2 F&T 100uF-100V (Bias Filters)
  • 6 I.C. 22uF-50V (Cathode Bypass)
  • 1 I.C. 4.7uF-50V (Cathode Bypass - Vibrato)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-9

$52.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 10.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 3 F&T 22uF-500V (Main Filters - Decoupling)
  • 2 F&T 220uF-300V (Main Filters)
  • 2 F&T 100uF-100V (Bias Filters)
  • 5 I.C. 22uF-50V (Cathode Bypass)
  • 1 I.C. 4.7uF-50V (Cathode Bypass - Vibrato)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-10

$52.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 11.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 3 F&T 22uF-500V (Main Filters - Decoupling)
  • 2 F&T 80uF-450V (Main Filters)
  • 1 F&T 10uF-500V (Decoupling)
  • 2 F&T 100uF-100V (Bias Filters)
  • 5 I.C. 22uF-50V (Cathode Bypass)

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-11

$55.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 12.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 3 F&T 22uF-500V (Main Filters - Decoupling)
  • 2 F&T 80uF-450V (Main Filters)
  • 2 F&T 100uF-100V (Bias Filters)
  • 7 I.C. 22uF-50V (Cathode Bypass)

See the model cross reference for applicable models.   Download the installation guidelines.

Part #FCK-12

$51.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 13.  Contains the following capacitors, used as main filters, bias filter, and preamp cathode bypass capacitors:
  • 3 F&T 22uF-500V (Main Filters - Decoupling)
  • 2 F&T 80uF-450V (Main Filters)
  • 2 F&T 100uF-100V (Bias Filters)
  • 2 I.C. 22uF-50V (Cathode Bypass)
  • 1 I.C. 4.7uF-50V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-13

$49.95



Click on photo for
larger view

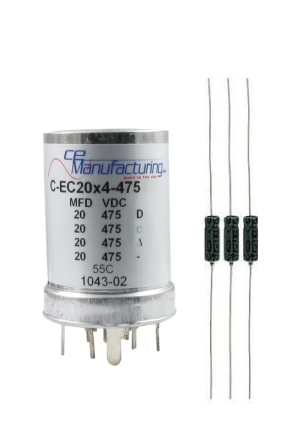

Fender® Electrolytic Capacitor Kit 14.  Contains the following capacitors, used as main filters and preamp cathode bypass capacitors in the Fender blackface and silverface Champ (1964-1982).    Does NOT include any of the many Champ "variation" models - just the basic Champ Amp.


  • 1 CE Mfg 20uFX4-475V (Main Filters - Decoupling)
  • 3 I.C. 22uF-50V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-14

$40.95



Click on photo for
larger view

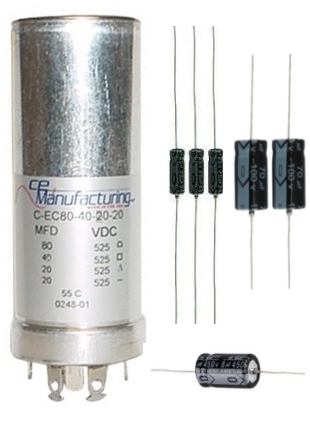

Fender® Electrolytic Capacitor Kit 15.  Contains the following capacitors, used as main filters and preamp cathode bypass capacitors in the Fender blackface and silverface Princeton Amp AA964 from 1964-1979 (NOT the Princeton Reverb).    Does NOT include any of the many Princeton "variation" models - just the basic blackface or silverface Princeton Amp without reverb.



Click on photos for larger view

  • 1 CE Mfg 20uFX4-475V (Main Filters - Decoupling)
  • 4 I.C. 22uF-50V (Cathode Bypass & Bias Filter)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-15

$41.95



Click on photo for
larger view

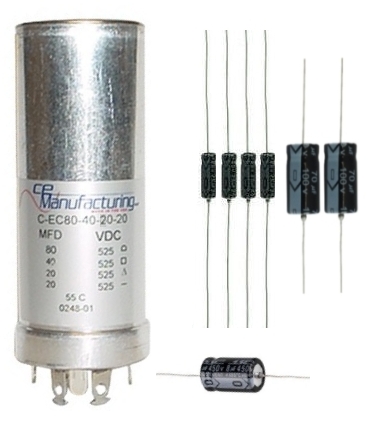

Fender® Electrolytic Capacitor Kit 16.  Contains the following capacitors, used as main filters and preamp cathode bypass capacitors in the Fender blackface and early silverface Princeton Reverb Amp AA1164 from 1964-1969.   Does NOT include any of the many Princeton Reverb "variation" models - just the basic Princeton Reverb Amp AA1164 with reverb.  Does NOT include the reissue models.



Click on photos for larger view
  • 1 CE Mfg 20uFX4-475V (Main Filters - Decoupling)
  • 7 I.C. 22uF-50V (Cathode Bypass & Bias Filter)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-16

$43.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 17.  Contains the following capacitors, used as main filters and preamp cathode bypass capacitors in the Fender silverface Princeton Reverb Amp AB1270 from 1970-1981.   Does NOT include any of the many Princeton "variation" models - just the basic silverface Princeton Reverb Amp AB1270 with reverb.   Does NOT include the reissue model.


Click on photo for larger view


  • 1 CE Mfg 20uFX4-475V (Main Filters - Decoupling)
  • 6 I.C. 22uF-50V (Cathode Bypass)
  • 1 Ruby Gold 50uF-100V (Bias Filter)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-17

$45.95



Click on photo for
larger view

Fender® Electrolytic Capacitor Kit 21.  Contains the following capacitors, used as main filters, decoupling filters, bias filters, low voltage filters and cathode bypass capacitors in the Fender 94 Twin Amp.  The 94 Twin Amp is blackface, is "three channel" with a boost on the clean channel and high gain overdrive on channel two.   Two input jacks, 14 knobs.  Produced 1994-2001.

Click on photo for larger view

  • 2 F&T 220uF-300V (Main Filters)
  • 4 F&T 47uF-500V (Decoupling Filters)
  • 4 F&T 22uF-500V (Decoupling Filters)
  • 2 Radial 100uF-100V (Bias Filters)
  • 4 Radial 22uF-100V (Bias and Relay Filters)
  • 7 I.C. 22uF-50V (Cathode Bypass)
  • 1 I.C. 4.7uF-50V (Cathode Bypass)
  • 2 Radial 220uF-50V (Low Voltage Filter)
  • 2 Radial 1000uF-35V (Low Voltage Filter)
  • 1 Radial 47uF-50V (Relay Filter)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-21

$89.95



Click on photo for
larger view

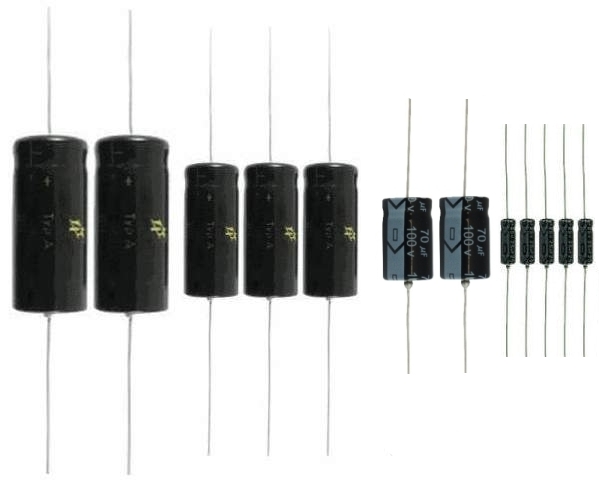

Fender® Electrolytic Capacitor Kit 41.  Contains the following filter capacitors, used as main and decoupling filters, bias filters and cathode bypass capacitors in the Fender® Concert II and Twin II (Paul Rivera design) from 1982-1987.
  • 3 F&T 22uF-500V (Decoupling Filters)
  • 2 F&T 220uF-300V (Main Filters)
  • 3 70uF-100V (Decoupling, Bias Filters)
  • 2 4.7uF-450V (Decoupling Filters)
  • 6 22uF-50V (Cathode Bypass)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-41

$48.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 42.  Contains the following filter capacitors, used as main and decoupling filters, bias filters and cathode bypass capacitors in the Fender® Super 60 "red knob" from 1988-1992.
  • 2 F&T 22uF-500V (Decoupling Filters)
  • 4 F&T 100uF-450V (Main Filters)
  • 2 Axial 22uF-50V
  • 1 Radial 470uF-50V
  • 3 Radial 100uF-100V
  • 2 Radial 22uF-50V
  • 1 Radial 47uF-50V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-42

$66.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 43.  Contains the following filter capacitors, used as main and decoupling filters, bias filters in the original version of the Fender® Hot Rod Deluxe from 1996-2010.    Does not include the Hot Rod Deluxe III.  This kit includes only the power supply capacitors.
  • 1 F&T 47uF-500V (Main Filter)
  • 3 F&T 22uF-500V (Decoupling Filters)
  • 2 Radial 1000uF-35V
  • 3 Radial 100uF-100V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-43

$30.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 44.  Contains the following filter capacitors, used as main and decoupling filters, and bias filters in the original version of the Fender® Hot Rod Deville from 1996-2010.    Does not include the Hot Rod Deville III (with black control panel.  This kit includes only the power supply capacitors.
  • 2 F&T 100uF-450V (Main Filters)
  • 2 F&T 47uF-450V (Decoupling Filters)
  • 2 F&T 22uF-500V (Decoupling Filters)
  • 2 Radial 1000uF-35V
  • 3 Radial 100uF-100V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-44

$53.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 45.  Contains the following filter capacitors, used as main, decoupling, and bias filter capacitors in the Fender® "The Twin" red knob (Paul Rivera design) from 1982-1987.    Note:   This kit includes only filter capacitors - no cathode bypass capacitors are included.


Click on photo for larger view

  • 3 F&T 22uF-500V (Decoupling Filters)
  • 2 F&T 220uF-300V (Main Filters)
  • 3 F&T 100uF-100V (Decoupling, Bias Filters)
  • 2 F&T 47-500V (Decoupling Filters)

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-45

$59.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 46.  Contains the following filter capacitors, used as main and decoupling filters, bias filters in the original versions of the Fender® Blues Deluxe and Blues Deville from 1993-2004.    Does not include the Blues Deluxe Reissue or the Blues Deville Reissue from 2005-present.  This kit includes only the power supply capacitors.
  • 4 F&T 100uF-450V (Main Filters)
  • 2 F&T 22uF-500V (Decoupling Filters)
  • 2 Radial 1000uF-35V
  • 3 Radial 100uF-100V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-46

$58.95



Click on photo for
larger view
Fender® Electrolytic Capacitor Kit 47.  Contains the following filter capacitors, used as main and decoupling filters, bias filters in the Fender® Blues Junior and Blues Junior III from 1995-present.  This kit includes only the power supply capacitors.
  • 1 F&T 47uF-500V (Main Filter)
  • 3 F&T 22uF-500V (Decoupling Filters)
  • 2 Radial 470uF-50V
  • 2 Radial 220uF-25V
  • 1 Radial 100uF-25V

See the model cross reference for applicable models.  Download the installation guidelines.

Part #FCK-47

$28.95



Cross Reference Table:



Amplifier Model and Date Code

Cap. Kit

Bandmaster Amp AA763, AB763, AC568 FCK-1
Bandmaster Reverb AA768, AA1069 FCK-4
Bandmaster Reverb AA270 FCK-7
Bandmaster Reverb w/Master Volume, 45 Watt Output 1972-1974 FCK-7
Bandmaster Reverb w/Master Volume, 70 Watt Output U/L 1974-1980 FCK-10
Bassman AA165, AB165, AA864, AC568 FCK-1
Bassman AA270, AA371 FCK-11
Bassman Ten (Silverface, mid-1970's) FCK-13
Blues Deluxe (Original version only, 1993-2004) FCK-46
Blues Deville (Original version only, 1993-2004) FCK-46

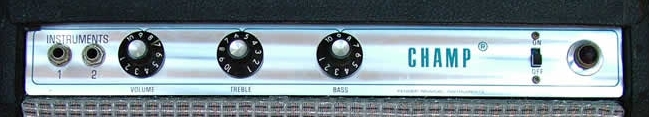

Champ AA764 (Includes all Blackface Champs from 1964-1967) FCK-14
Champ (CBS) (Includes all Silverface Champs from 1968-1982) FCK-14
Concert AA763, AB763 (not Concert II) FCK-1
Concert II (1982-1987) FCK-41
Deluxe Reverb AA763, AB763, AB868 FCK-6
Deluxe Reverb A1172, A1270, Volume Boost Model (late 70s) FCK-8
Dual Showman Reverb AA769 (1969) FCK-4
Dual Showman Reverb AA270 (1970) FCK-7
Dual Showman Reverb w/Master Volume, 100 Watt Output, 1972-1974 FCK-9
Dual Showman Reverb w/Mstr Volume, 135W Output Ultralinear 1974-1980 FCK-10
Hot Rod Deluxe (Original version only, 1996-2010) FCK-43
Hot Rod Deville (Original version only, 1996-2010) FCK-44
Princeton Amp AA964 - Without Reverb! (1964-1979 - Blackface/Silverface) FCK-15
Princeton Reverb Amp AA1164 (1964-1969 - Blackface/Silverface) FCK-16

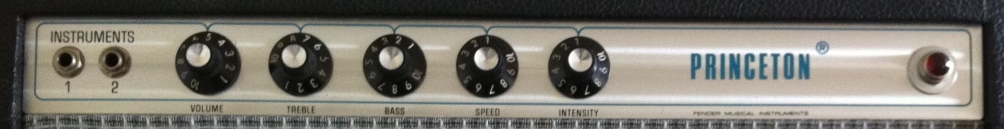

Princeton Reverb Amp AB1270 (1970-1981 - Silverface) FCK-17
Pro Amp AA763 (1963) FCK-3
Pro Amp AB763 (1963) FCK-1
Pro Reverb AA165 (1965) FCK-4
Pro Reverb AB668, AA1069 1968-1970 FCK-4
Pro Reverb AA270 1970-1972 FCK-7
Pro Reverb w/Master Volume, 45 Watt Output 1973-1974 FCK-7
Pro Reverb w/Master Volume, 70 Watt Output Ultralinear 1974-1980 FCK-10
Quad Reverb w/Master Volume, 100 Watt Output 1972-1974 FCK-9
Quad Reverb w/Master Volume, 135W Output Ultralinear 1974-1980 FCK-10
Showman AA763, AB763, AC568 (1963-1968) FCK-1
Showman Reverb AA768 (1968) FCK-4
Super 60 (Red Knob, 1988-1992) FCK-42
Super Reverb AA763 (1963) FCK-5
Super Reverb AB763, AB568, AA1069 (1963-1969) FCK-4
Super Reverb AA270 (1970-1971) FCK-7
Super Reverb w/Master Volume, 45 Watt Output 1972-1974 FCK-7
Super Reverb w/Master Volume, 70 Watt Output Ultralinear 1974-1980 FCK-10
Super Six Reverb w/Master Volume, 100 Watt Output 1972-1974 FCK-9
Super Six Reverb w/Master Volume, 135W Output Ultralinear 1974-1980 FCK-10
Tremolux AA763, AB763 (1973) FCK-2

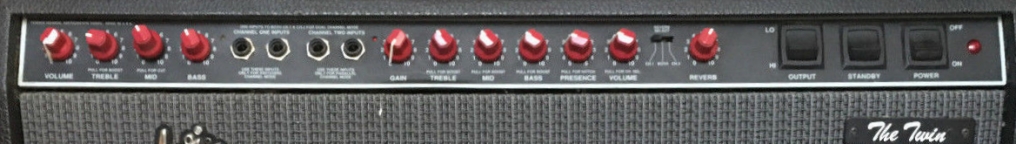

The Twin (Red Knob, 1987-1994) FCK-45
94 Twin Amp (1994-2001) FCK-21
Twin Reverb AB763 (1963-1968) FCK-4
Twin Reverb AA769, AA270 (1969-1971) FCK-12
Twin Reverb w/Master Volume, 100 Watt Output 1972-1974 FCK-9
Twin Reverb w/Master Volume, 135W Output Ultralinear 1974-1980 FCK-10
Twin Reverb II (1982-1986) FCK-41
Vibrolux AA763, AB763 (1963) FCK-2
Vibrolux Reverb AA964, AB568 (1964-1969) FCK-6
Vibrolux Reverb AA270 (1970-1971) FCK-8
Vibrosonic Reverb w/Master Volume, 100 Watt Output 1972-1974 FCK-9
Vibrosonic Reverb w/Master Volume, 135W Output Ultralinear 1974-1980 FCK-10
Vibroverb AA763 (1963) FCK-5
Virbroverb AB763 (1963) FCK-4

Don't see your exact amp model (with identical date code)?    Contact us for more information.

Can't find the date code?    No tube chart in the cabinet?  Contact us for more information.

For vintage amps (blackface and some silverface), the date code is located on the tube chart inside the back of the amplifier cabinet:




Copyright ©2017 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions
