Quality Capacitors from F & T, Sprague, Jamicon, Ruby Gold, MOD, Illinois Capacitor, Sanyo,  Nichicon, Panasonic, Tube Amp Doctor, Elna, Xicon and others

 CAPACITORS


Silver Mica Radial     Radial Poly 630V       Axial Metal Film 630V     Disc Capacitors

Electrolytic Axial     Electrolytic Radial     Electrolytic Low Voltage Radial     F&T Premium Dual Can & Axials

MOD Axials     Ruby Gold Dual Can & Axials     Tube Amp Doctor (TAD) Axials    Sprague Premium Axials

JJ Electronic Dual Can    Other Axials    Illinois Capacitor Axials    Audio Crossover Capacitors

CE Manufacturing Multi-Section Cans    Dual Can Capacitors





Click on photo for
larger view
Electrolytic Capacitor Kits for Fender™, Music Man™, Peavey™ and Marshall™

The capacitor kits are assembled from premium capacitors made by F&T, Sprague, Tube Amp Doctor, Ruby Gold, JJ Electronics, Illinois Capacitor, MOD and other fine manufacturers.   Some kits are available in basic, standard, pro or premium grade.
Prices starting at $12.95 and up Click here to see
the full selection of
electrolytic capacitor kits.
CAPACITOR, SILVER MICA, RADIAL
Rated at 500 volts, values from 10pF to 750pF. Radial leads.  Tolerance ±5%.  Dipped in epoxy coating.    (See Options)

1000pF = 1nF = 0.001uF

Part #C-SM-XX
Starting at
$0.80
Select Option:


Quantity:


CAPACITOR, POLYPROPYLENE, RADIAL.
  Similar to orange drop style, rated at 630 volts.  Values from 0.001uF to 0.47uF   Radial leads.  (See Options)


Part #C-PR-XX
Starting at
$0.30
Select Option:


Quantity:


CAPACITOR, METAL FILM, AXIAL -
Similar to Mallory 150 style, rated at 630 volts.   Values from 0.001uF to 0.47uF.  Axial Leads.   (See Options)

Part #C-MF-XX
Starting at
$0.90
Select Option:



Quantity:


CAPACITOR, CERAMIC DISC, RADIAL.
  Replacement for the ceramic disc vibrato phase shift capacitors in vintage Blackface and Silverface Fender™ amplifiers from the 60s and 70s.   Rated at 500 volts.  Available in .01uF and .02uF (See Options to select value)   Tips:  (1) If you would like to slow down the vibrato speed range (popular for jazz players):  There are three caps in the vibrato phase shift circuit - two .01s and a .02.  You can slow the vibrato speed down by replacing the .01s with .02s (so that all three ceramic disc caps are .02).  (2) Background ticking sound in the vibrato?   Install a .02 cap from ground to the leg of the optoisolator that connects to the 10 Meg resistor (brown/black/blue).

Part #C-CD-XX
$0.75

Select Option:


Quantity:

  F&T Premium Capacitors

Click on photo for
larger view

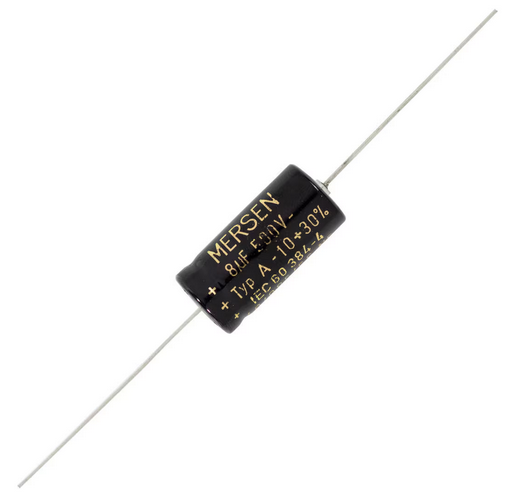

CAPACITOR, F&T BRAND, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Made in Germany. Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 75 years of experience in producing some of the finest capacitors available today. F&T Caps are known for their great stability and reliability.  Values available include 10uF/500V, 16uF/475V, 22uF/500V, 30uF/500V, 47uF/500V, 80uF/450V, 100uF/100V, 100uF/450V, and 220uF/300V.  Choose capacitor value under the Select Option box.
Part #FT-CAP-XX
Starting at
$4.95
Select Option:


Quantity:


Click on photo for
larger view
CAPACITOR, F&T BRAND, DUAL CAN 16uF+16uF @ 450V.  Direct replacement for LCR type capacitors popular in Marshall™ and Vox™ amps.    This is a dual can style capacitor 16uF/16uF rated at 450 volts.   Solder terminals for attaching wire leads.   1 3/8" diameter X 2" tall.  Very low ripple.   Clamp may be ordered separately below.   Made in Germany.  Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 75 years of experience in producing some of the finest capacitors available today. F&T Caps are known for their superior stability and reliability.
Part #FT-1616
$17.95


Click on photo for
larger view
CAPACITOR, F&T BRAND, DUAL CAN 32uF+32uF @ 500V.  Direct replacement for LCR type capacitors popular in Marshall™ JMP and JCM900 series amps.    This is a dual can style capacitor 32uF/32uF rated at 500 volts.   Solder terminals for attaching wire leads.   1 3/8" diameter X 2" tall.  Very low ripple.   Clamp may be ordered separately below.   Made in Germany.  Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 75 years of experience in producing some of the finest capacitors available today. F&T Caps are known for their superior stability and reliability.
Part #FT-3232
$18.95

CAPACITOR, F&T BRAND, DUAL CAN 50uF+50uF @ 500V  Direct replacement for LCR type capacitors popular in Marshall™ JMP and JCM900 series amps.    This is a dual can style capacitor 50uF/50uF rated at 500 volts.   Solder terminals for attaching wire leads.   1 3/8" diameter X 2" tall.  Very low ripple.   Clamp may be ordered separately below.   Made in Germany.  Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 75 years of experience in producing some of the finest capacitors available today. F&T Caps are known for their great tone and reliability.
Part #FT-5050
$19.95

CAPACITOR CLAMP, for FT-1616, FT-3232, FT-5050, JJ-5050, or other 1 3/8" diameter can style capacitors.

Part #CC-122

$2.50

  Sprague Premium Axial Capacitors

Click on photo for
larger view
SPRAGUE AXIAL 5uf/50V  Replacement for the 5uF/25V or 5uF/50V axial cathode bypass capacitor commonly found in the vibrato circuit of vintage Fender silverface amps from the 1970s.  Sprague, founded in 1926, is considered one of the premier capacitor manufacturers in the world.

Part #SP-CAP-5-50

$6.95


Click on photo for
larger view
SPRAGUE AXIAL 25uf/50V  Replacement for the 25uF/25V axial cathode bypass capacitors commonly found in vintage Fender amps from the 1950s through the 1980s.  Sprague, founded in 1926, is considered one of the premier capacitor manufacturers in the world.

Part #SP-CAP-25-50

$4.95


Click on photo for
larger view
SPRAGUE AXIAL 10uf/150V  Replacement for the 10uF/160V axial bias filter capacitors commonly found in vintage Marshall amps from the 1960s through the 1990s.  Sprague, founded in 1926, is considered one of the premier capacitor manufacturers in the world.

Part #SP-CAP-10-150

$4.95

  Tube Amp Doctor Premium Capacitors


Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 8uF-475V

12mm diameter x 26mm Length
Rated
105° C for Long Life
8uF - 475 Volts DC
Common replacement in many vintage Fender Amps.


Part #TAD-CAP-8-475
$4.75
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 16uF-475V

12mm diameter x 30mm Length
Rated
105° C for Long Life
16uF - 475 Volts DC


Part #TAD-CAP-16-475
$4.95
In stock



Click on photo for
larger view

Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 22uF-500V

16mm diameter x 32mm Length
Rated
105° C for Long Life
22uF - 500 Volts DC


Part #TAD-CAP-22-500
$5.95
In stock



Click on photo for
larger view

Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 100uF-350V

22mm diameter x 38mm Length
Rated
105° C for Long Life
100uF - 350 Volts DC


Part #TAD-CAP-100-350
$12.95
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor  220uF-350V

25mm diameter x 51mm Length
Rated
105° C for Long Life
220uF - 350 Volts DC


Part #TAD-CAP-220-350
$19.95
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 25uF-25V

6mm diameter x 14mm Length
Rated
105° C for Long Life
25uF - 25 Volts
Perfect replacement for axial cathode bypass capacitors in many Fender amps


Part #TAD-CAP-25-25
$1.75
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 5uF-50V

5mm diameter x 13mm Length
Rated
105° C for Long Life
5uF - 50 Volts
Perfect replacement for axial cathode bypass capacitors in the vibrato circuit of many Fender amps


Part #TAD-CAP-5-50
$3.50
In stock



Click on photo for
larger view

Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 47uF-500V

22mm diameter x 39mm Length
Rated
105° C for Long Life
47uF - 500 Volts DC


Part #TAD-CAP-47-500
$12.95
In stock



Click on photo for
larger view

Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 70uF-350V

18mm diameter x 40mm Length
Rated
105° C for Long Life
70uF - 350 Volts DC


Part #TAD-CAP-70-350
$8.95
In stock



Click on photo for
larger view

Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 100uF-350V

22mm diameter x 38mm Length
Rated
105° C for Long Life
100uF - 350 Volts DC


Part #TAD-CAP-100-350
$12.95
In stock



Click on photo for
larger view
Tube Amp Doctor™ Gold Cap Electrolytic Axial Capacitor 80uF-100V

9.5mm diameter x 21.5mm Length
Rated
105° C for Long Life
80uF - 100 Volts
Perfect replacement for bias supply
capacitors in many Fender amps


Part #TAD-CAP-80-100
$4.95
In stock

  JJ Electronic Premium Capacitors
CAPACITOR, JJ ELECTRONIC, direct replacement for LCR type capacitors popular in Marshall™ JCM900 series amps.    This is a dual can style capacitor 50uF/50uF rated at 500 volts.   Solder terminals for attaching wire leads.   1 3/8" diameter X 2" tall.  Very low ripple.   Clamp may be ordered separately above.   Made in the Slovak Republic in eastern Europe.  Founded in 1993 by Jan Jurco, JJ Electronic is a world-renowned manufacturer of vacuum tubes, electrolytic capacitors and high-end audio amplifiers.
Part #JJ-5050
$17.95

  Ruby Gold Premium Capacitors

Click on photo for
larger view
CAPACITOR, RUBY GOLD BRAND, AXIAL LEAD ELECTROLYTIC, 220uF-350V  Ruby Gold capacitors are used by many original amplifier manufacturers in Europe and the U.S.A.  Ruby Gold Capacitors are rated at 105° C for longer life, improved stability in the hot environment of tube amplifiers, and increased protection against electrolyte deterioration.   Ideal as replacement in vintage audio and guitar amplifiers.  220uF/350V.
Part #RG-CAP-220-350
$9.95

  MOD Axial Capacitors

Click on photo for
larger view
MOD CAPACITOR, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Mod™ Electronics electrolytic capacitors offer long-lasting performance at the highest degree. These capacitors are designed with tube amplifiers in mind; each capacitor is rated at 105°C. This temperature rating provides a highly-stable capacitance in any device, be it vacuum tube or solid state. The Mod™ electrolytic capacitor line features capacitance values that are common in many vintage amplifiers.   Values available include 8uF/150V, 16uF/475V, 20uF/500V, 25uF/50V, 70uF/350V, 100uF/100V, and 100uF/350V.   Choose capacitor value under the Select Option box.
Part #MOD-CAP-XX
Starting at
$1.00
Select Option:


Quantity:

  Illinois Capacitor Electrolytic Capacitors

Click on photo for
larger view

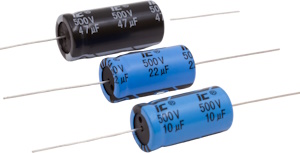

CAPACITOR, ILLINOIS CAPACITOR BRAND, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Illinois Capacitor Company was founded in 1934 in Chicago, IL, and over 80 years later continues to produce benchmark quality capacitors for industry.     Illinois Capacitor is now a subsidiary of Cornell Dubilier, another American capacitor manufacturer tracing its roots to 1909.  Values available include 2.2uF/50V, 4.7uF/50V, 10uF/160V, 10uF/450V, 22uF/50V, 22uF/500V, 33uF/450V, 47uF/63V, 47uF/500V, 80uF/450V, 100uF/25V, 100uF/35V 100uF/100V, 100uf/350V, 220uF/16V, 220uF/50V, 220uF/100V, 220uF/300V, 1000uF/35V, 1000uF/50V, 2200uF/50V and 5000uF/55V.  Choose capacitor value under the Select Option box.
Part #IC-CAP-XX
Starting at
$0.99
Select Option:


Quantity:

CAPACITOR, ILLINOIS 5000uF/55V   Axial electrolytic 5000uF@55V with axial leads.

Part #IC-CAP-5000-55
$5.99

  Axial Electrolytic Capacitors - Other Brands

Click on photo for
larger view
CAPACITOR, AXIAL LEAD ELECTROLYTIC, VARIOUS VALUES AND VOLTAGES AVAILABLE (SEE OPTIONS)  Values available include the following:
25uF/25V 100uF/25V 220uF/25V 2200uF/25V
100uF/50V 0.68uF/50V 25uF/50V
  47uF/63V 70uF/100V 100uF/100V
  8uF/150V 10uF/160V 100uF/350V
220uF/350V 4.7uF/450V 8uF/450V 10uF/450V
  22uF/450V 33uF/450V 47uF/450V
16uF/475V 20uF/500V 20uF/600V 80uF/500V

Choose capacitor value under the Select Option box.
Part #EL-CAP-XX

Starting at
$1.00
Select Option:


Quantity:


Click on photo for
larger view
CAPACITOR, AXIAL LEAD ELECTROLYTIC, DJE.

80uF/500V.   Commonly used in Fender amps from 1962-present.  Rated 85 degrees C, -10%/+20% tolerance.

Part #EL-CAP-80/500

$4.95


Click on photo for
larger view

CAPACITOR, CE Manufacturing™ MULTI-SECTION CAN, 20uF/20uF/20uF/20uF @ 475V,  1 3/8" D X 2" H.  Made in USA on the original Mallory equipment.  Twist-lock tabs for mounting to chassis.    Replacement for Fender Princeton and Princeton Reverb main filter capacitor on blackface and silverface amps from the 1960s and 1970s.    Also may be used for Fender Champ, Vibro-Champ and Bronco amps from the same era (one extra 20uF section unused on these amps).     Rated 85 degrees C, -10%/+50% tolerance.
Part #C-EC20X4-475

$51.95


Click on photo for
larger view

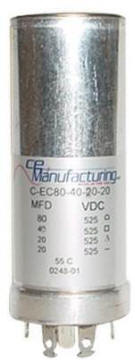

CAPACITOR, CE Manufacturing™ MULTI-SECTION CAN, 80uF/40uF/30uF/20uF @ 525V,  1 3/8" D X 3-1/2" H.  Made in USA on the original Mallory equipment.  Twist-lock tabs for mounting to chassis.    Replacement for Fender main filter capacitor on Princeton Reverb II, Deluxe Reverb II, Bassman 20, Super Champ, and Champ II from the 1980s.   Rated 85 degrees C, -10%/+50% tolerance, 1-3/8" diameter x 3-1/2" tall.
Part #C-EC-80403020

$56.99


Click on photo for
larger view


CAPACITOR, CE Manufacturing™ MULTI-SECTION CAN, 30uF/30uF/30uF @ 525V,  1 3/8" D X 3-1/2" H.  Made in USA on the original Mallory equipment.  Twist-lock tabs for mounting to chassis.    Replacement for Fender main filter capacitor on the Princeton 6G2, from 1960-1962.  Rated 85 degrees C, -10%/+50% tolerance, 1-3/8" diameter x 3-1/2" tall.
Part #C-EC-30X3-525

$56.99


Click on photo for
larger view
CAPACITOR, electrolytic 10uF @ 450V with radial leads.  10mm Diameter, 21mm tall.   Used in many PC board tube amplifiers, such as Marshall™ (Valvestate series), Orange, Randall™, B52, many others.
Part #RAD-10-450
$1.95


Click on photo for
larger view
CAPACITOR, electrolytic 22uF @ 450V with radial leads.  132.5mm Diameter, 25mm tall.   Used in many PC board tube amplifiers, such as Marshall™ (Valvestate series), Orange, Randall™, B52, many others.
Part #RAD-22-450
$2.50


Click on photo for
larger view
CAPACITOR, electrolytic 33uF @ 450V with radial leads.    16mm Diameter, 26.2mm tall.   Used in many PC board tube amplifiers, such as Marshall™ (Valvestate series), Orange, Randall™, B52, many others.
Part #RAD-33-450
$2.95


Click on photo for
larger view

CAPACITOR,
electrolytic 47uF @ 450V with radial leads.    16mm Diameter, 31.7mm tall.   Used in many PC board tube amplifiers, such as Marshall™ (Valvestate series), Orange, Randall™, B52, many others.

Part #
RAD-47-450
$3.95


Click on photo for
larger view
CAPACITOR, electrolytic 100uF @ 450V with radial snap-in leads.    Made by Nippon Chemi-Con.   22mm Diameter, 26mm tall.   Used in many PC board tube amplifiers, such as Marshall™, Orange, Randall™, B52, Crate, Peavey, many others.
Part #RAD-100-450
$6.95


Click on photo for
larger view
CAPACITOR, electrolytic 100uF @ 50V with radial leads.   Used in the low voltage power supply of Marshall JCM900 series amplifiers.
Part #RAD-100-50
$0.39


Click on photo for
larger view
CAPACITOR, electrolytic 1000uF @ 16V with radial leads.   Used in the low voltage power supply of Marshall JCM900 series amplifiers.
Part #RAD-1000-16
$0.77


Click on photo for
larger view

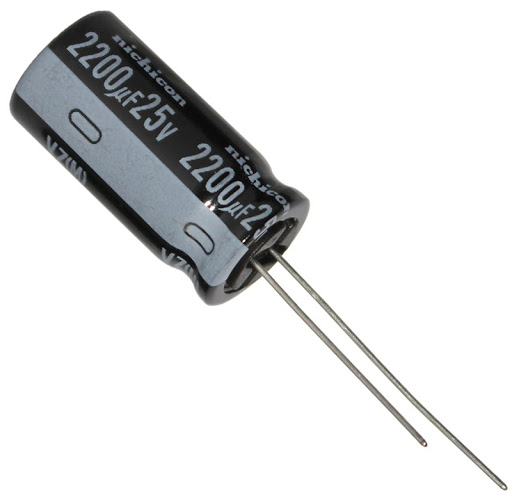

CAPACITOR, electrolytic 2200uF @ 25V with radial leads.   Used in many different amp and effects units' power supplies.
Part #RAD-2200-25
$2.32


Click on photo for
larger view

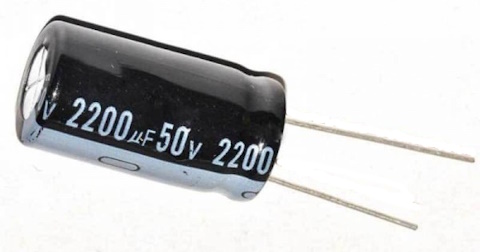

CAPACITOR, electrolytic 2200uF @ 50V with radial leads.   Used in the power supply of Marshall "VS series" ValveState amplifiers.
Part #RAD-2200-50
$2.32


Click on photo for
larger view
CAPACITOR, electrolytic 2200uF @ 63V with radial snap-in leads.  Made by Chemi-Con.  Dimensions:  22mm x 35mm.

Part #RAD-2200-63
$6.95


Click on photo for
larger view
CAPACITOR, electrolytic 3300uF @ 63V with radial snap-in leads.  Made by Epcos.  Dimensions:  22mm x 35mm.

Part #RAD-3300-63
$6.95


Click on photo for
larger view
CAPACITOR, electrolytic 4700uF @ 63V with radial snap-in leads.  Made by Epcos.  Dimensions:  22mm x 51mm.

Part #RAD-4700-63
$6.95



Click on photo for
larger view
RADIAL ELECTROLYTIC CAPACITOR, 10,000uF @ 16V.   This size filter capacitor is commonly found in amplifiers which use DC voltage on the filaments of some of the preamp tubes.   Found in Marshall™, Mesa-Boogie™ as well as other brands.  Working temperature range -40°C to +105°C.   18mm diameter, 35mm tall (approximately 11/16" diameter X 1 3/8" tall)
Part #
10000-16
$2.49

CAPACITOR CLAMP, for FT-1616, FT-3232, FT-5050, JJ-5050, or other 1 3/8" diameter can style capacitors.

Part #CC-122

$2.50

CAPACITOR, F&T BRAND, DUAL CAN 50uF+50uF @ 500V  Direct replacement for LCR type capacitors popular in Marshall™ JMP and JCM900 series amps.    This is a dual can style capacitor 50uF/50uF rated at 500 volts.   Solder terminals for attaching wire leads.   1 3/8" diameter X 2" tall.  Very low ripple.   Clamp may be ordered separately below.   Made in Germany.  Founded in 1948 by Heinz Fischer and Alfred Tausche, F&T Capacitors has over 75 years of experience in producing some of the finest capacitors available today. F&T Caps are known for their great tone and reliability.
Part #FT-5050
$19.95

CAPACITOR, JJ ELECTRONIC, direct replacement for LCR type capacitors popular in Marshall™ JCM900 series amps.    This is a dual can style capacitor 50uF/50uF rated at 500 volts.   Solder terminals for attaching wire leads.   1 3/8" diameter X 2" tall.  Very low ripple.   Clamp may be ordered separately above.   Made in the Slovak Republic in eastern Europe.  Founded in 1993 by Jan Jurco, JJ Electronic is a world-renowned manufacturer of vacuum tubes, electrolytic capacitors and high-end audio amplifiers.
Part #JJ-5050
$17.95

Electrolytic Capacitors - Radial Lead.  All are rated 105 degrees C unless otherwise noted.

Part #



Voltage

Capacitance

Price

Purchase

330-6.3

6.3V

330µF

$ .60

1000-6.3

6.3V

1000µF

$ .78

100-10

10V 100µF $ .32

470-10

10V 470µF $ .48

1000-10

10V 1000µF $ .68

1200-10

10V 1200µF $ .79

3300-10

10V 3300µF $ 1.85

Part #



Voltage

Capacitance

Price

Purchase

10-16

Use 50V

10µF

  Use 50V

22-16

Use 50V

22µF

  Use 50V

33-16

Use 50V

33µF

  Use 50V

47-16

16V

47µF

$ .26

100-16

16V

100µF

$ .26

120-16

16V

120µF

$ .46

220-16

16V

220µF

$ .32

330-16

16V

330µF

$ .39

470-16

16V

470µF

$ .44

680-16

16V

680µF

$ .66

1000-16

16V

1000µF

$ .77

2200-16

16V

2200µF

$ 1.06

3300-16

16V

3300µF

$1.36

4700-16

16V

4700µF

$1.99

10000-16

16V

10000µF

$2.49

Part #



Voltage

Capacitance

Price

Purchase

10-25

Use 50V

10µF

$ .23

Use 50V

22-25

Use 50V

22µF

$ .26

Use 50V

33-25

Use 50V

33µF

$ .29

Use 50V

47-25

Use 50V

47µF

$ .29

Use 50V

100-25

25V

100µF

$ .39

220-25

25V

220µF




USE 220-50

330-25

25V

330µF

$ .55

470-25

25V

470µF

$ .72

680-25

25V

680µF

$ .88

1000-25

25V

1000µF

$ .94

2200-25

25V

2200µF

$1.58

3300-25

25V

3300µF

$1.87

4700-25

25V

4700µF

$2.52

Part #

Voltage

Capacitance

Price

Purchase

10-35

Use 50V

10µF



Use 50V

22-35

Use 50V

22µF

  Use 50V

33-35

Use 50V

33µF

  Use 50V

47-35

Use 50V

47µF

  Use 50V

100-35

Use 50V

100µF

  Use 50V

220-35

Use 50V

220µF

  Use 50V

330-35

35V

330µF

$ .59

470-35

35V

470µF

$ .89

1000-35

35V

1000µF

$1.90

3300-35

35V

3300µF

$2.39

4700-35

35V

4700µF

$3.79

Part #



Voltage

Capacitance

Price

Purchase

.1-50

50V

.1µF

$ .39

.22-50

50V

.22µF

$ .39

.47-50

50V

.47µF

$ .39

1.0-50

50V

1.0µF

$ .23

2.2-50

50V

2.2µF

$ .23

3.3-50

50V

3.3µF

$ .23

4.7-50

50V

4.7µF

$ .23

10-50

50V

10µF

$ .23

22-50

50V

22µF

$ .25

33-50

50V

33µF

$ .29

47-50

50V

47µF

$ .29

100-50

50V

100µF

$ .39

220-50

50V

220µF

$ .62

330-50

50V

330µF

$ .69

470-50

50V

470µF

$ .88

1000-50

50V

1000µF

$1.58

2200-50

50V

2200µF

$2.32

3300-50

50V

3300µF

$2.99

4700-50

50V

4700µF

$3.60

Part #



Voltage

Capacitance

Price

Purchase

33-63

63V

33µF

$ .26

1000-63

63V

1000µF

$ 1.88

Part #



Voltage

Capacitance

Price

Purchase

1.0-100

100V

1.0µF

$ .25

2.2-100

100V

2.2µF

$ .25

3.3-100

100V

3.3µF

$ .25

4.7-100

100V

4.7µF

$ .29

10-100

100V

10µF

$ .33

22-100

100V

22µF

$ .44

33-100

100V

33µF

$ .48

47-100

100V

47µF

$ .52

100-100

100V

100µF

$ .92

220-100

100V

220µF

$1.18.

330-100

100V

330µF

$1.62

470-100

100V

470µF

$1.85

Part #



Voltage

Capacitance

Price

Purchase

82-200

200V

82µF

$1.80

100-200

200V

100µF

$2.20

Part #



Voltage

Capacitance

Price

Purchase

4.7-250

250V

4.7µF

$ .55

10-250

250V

10µF

$ .77

100-250

250V

100µF

$2.25


Crossover Capacitors

When replacing a capacitor in an existing printed circuit crossover board, order the same capacitance value (in uF - microfarads) as the original.    Our Audiophiler capacitors are rated at a maximum of 400 volts, which offers significant margin over typical voltages found in audio speaker circuits.

If you wish to create a basic first order crossover for a horn or tweeter using a single capacitor, use the following table to determine your crossover frequency, based on the impedance of the horn/tweeter, and the capacitance of the crossover capacitor.  (Crossover frequencies have been rounded off).

Capacitor Value

2 ohms 4 ohms 8 ohms 16 ohms
1.0uF 80,000Hz* 40,000Hz* 20,000Hz* 10,000Hz
2.2uF 36,000Hz* 18,000Hz* 9,000Hz 4,500Hz
3.3uF 24,000Hz* 12,000Hz 6,000Hz 3,000Hz
4.7uF 16,800Hz* 8,400Hz 4,200Hz 2,100Hz
6.8uF 11,600Hz 5,800Hz 2,900Hz 1,450Hz
10uF 8,000Hz 4,000Hz 2,000Hz 1,000Hz
Frequencies marked with a (*) are effectively beyond the range of normal human hearing

  Crossover Capacitors

MKP Audiophiler audio grade non-polarized crossover capacitors made in Germany.   These are the highest quality crossover capacitors available today.  Rated at 400V, for plenty of headroom in high-wattage applications. Values include 1uF, 2.2uF, 3.3uF, 4.7uF, 6.8uF, and 10uF.  All MKP Audiophiler capacitors are 31mm long (1.22 inches).   Diameters are as follows:   1uF: 12.6mm, 2.2uF: 16.6mm, 3.3uF: 20.3mm, 4.7uF: 22mm, 6.8uF: 26mm, 10uF: 26mm.    Select capacitor value in Options.
Part #MKP-XX
Starting at
$1.59
Select Option:

Quantity:



Copyright ©2024 Studio Sound Electronics - All Rights Reserved
Not responsible for web site errors or omissions.
  WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
